4 Channel Power over Ethernet
Network Video Recorder
USER MANUAL
1308247 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM7120 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND CM7120

Summary of Contents for LEGRAND CM7120

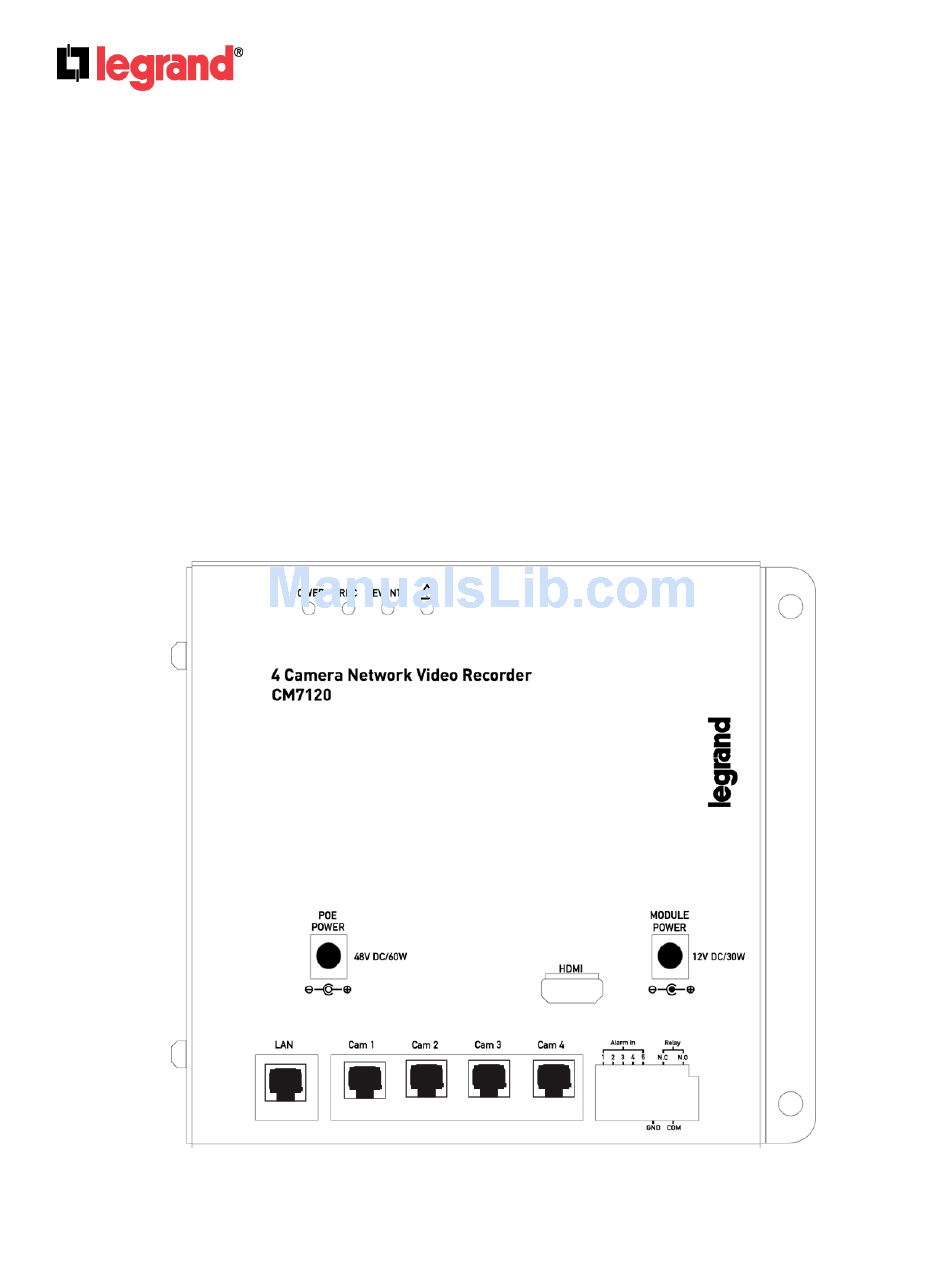

  • Page 1 4 Channel Power over Ethernet Network Video Recorder USER MANUAL 1308247 Rev. A...

  • Page 2: Fcc Compliance

    INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 3 SIGNALS. ULTRAK SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF THIS SYSTEM IN VIOLATION OF CURRENT LAWS AND STATUTES. COPYRIGHT THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO THEIR RESPECTIVE COMPANIES. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...

  • Page 4: Table Of Contents

    Authority ........................32 Storage ......................... 34 System .......................... 36 Player ..........................40 Plugin ..........................47 Log List ........................47 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...

  • Page 5: Installation

    Once installed, a local network connection will be required to access the CM7120. The Network Video Recorder features a LAN port specifically for connection to an existing router or switch. The CM7120 also features four camera ports that support the 802.3af PoE standard to power any cameras connected to the device.
  • Page 6 The NVR will appear in this list with its part number. Simply double click the icon to open the device in the default browser. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 7 Alternately, type the IP address of the NVR directly into the address bar of the browser. The following User name & Password Login window will pop up. Enter Default user name & password: admin/admin 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...

  • Page 8: Live View

    Click on a channel screen twice to view its full image. Full Screen： Click to enter full screen mode. You can still adjust the screen pattern by clicking on the icons below. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 9 Time Search Click on the icon to enter Time Search page where you can see the time frame of your recorded video. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 10 Set the time range in Time Filter and tick any channels for the system to examine in Channel Filter. Exit: Click to return to live mode. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 11 K. PTZ Control Panel For PTZ camera settings and controls. PTZ Zoom in/out PTZ Focus Preset Point Setup Auto Pan Function 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 12 The interval time drop down menu will pop up right after Sequence is selected. M. Online Visitor：User log on to this interface at the same time is limited to 8 people. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 13: Camera

    LAN/Network. Click on IP Installer to start searching for IP cameras on the network. A-1. IP Installer 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 14 Camera Setup page as below. Video Setup B-1. Channel Click the drop down list to change the channel of the live video preview. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 15 C-3. Dwell Time Press + or - to change auto switch seconds. C-4. Contrast Press + or - to change contrast level. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 16 Click to choose the lux level ranged from 5~50 at night. C-13. Day to Night Lux Click to choose the lux level ranged from 1~40 at day time. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 17 All: Set motion detection for the whole area of the screen. Clear: Clear the area of the current color in the view. Apply: Save the settings and keep the change. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 18 The channel ticked means the sound from the network camera will be recorded into the playback video. On the contrary, no sound will be recorded in playback video for the channel not ticked. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 19 All the channels are enlisted and displayed. You can key-in the IP address, port, and the user name & password of the IP camera. Then assign the channel number. Tick “Enable” to connect to the IP camera. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...

  • Page 20: Record

    If you set 5 seconds for pre-alarm and 5 seconds for post-alarm, the alarm recording length will be 10 seconds in total. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 21 Click on the drop down list from the Record Mode on the right, and select Schedule. There will be three Setup options available: Schedule Setup, Mail Schedule Setup, and FTP Schedule Setup. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 22 “NO MAIL” period even the motion detection is triggered. The tag “ALARM FTP” refers to both external alarm and DI from camera. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...

  • Page 23: Alarm

    Select Enable from the drop-down list to trigger the buzzer whenever the storage device gets overheated. A-7. HDD Temp. Limit Value Set the temperature limit between 55~70 . 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 24 There are nine types of events that can be selected. When the selected items occur and triggered, the log will be recorded in the event playback list. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 25: Network

    Key-in DNS1 and DNS2 that provided by ISP if using Static IP. A-6. Web Page Port Give the NVR http port for web browser. Default is 80. NOTE: Legrand highly recommends changing the default port to something other than 80 when attempting to remote view the NVR.
  • Page 26 Input the IP Address. C-7. Send Mail After Dialed Click the drop down list to enable or disable the function. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 27 Idle: Stop service. DDNS registered successfully, now log by http://<username>.ddns.camddns.com: Registered successfully. Updating Failed: the name is already registered. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 28 HDD Warning：A notification will be sent via email while recording in the HDD fails. Video Loss：A notification will be sent via email when image or Internet connection is lost. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 29 Tick Motion to upload video to FTP when motion detection is triggered. Tick PIR DETECTION to upload video to FTP when PIR detection is triggered. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 30 Use the virtual keypad to insert the end IP Address of DHCP server. G-4. Lease Time Input the lease time of DHCP server. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 31 Browse through details of the connection status. You may consider how you want to set up your streaming mode by acquiring information provided here. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 32: Authority

    User Management The administrator can set up the user management permission & user authority management. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 33 After clicking the Add User button, the setup page will appear. The administrator can distribute the authority and the permission for the new user. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 34: Storage

    25% to 5%. When HDD space is less than setting ratio, the buzzer will react. Reserve Mode Click + or - to setup the active time between 1~30 days. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 35 GOOD. Clicking on GOOD icon to check its status. Format HDD 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...

  • Page 36: System

    If you select a resolution not compatible with the LCD monitor, the system will automatically undo the recent changes. A-4. Reboot Click to reboot the NVR. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 37 Click “Download” to save a current setting file to PC. You can apply this file to other NVR so that the setting will be copied to other NVR. Daylight Saving Time 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 38 Edit the start and end daylight saving time. During daylight saving, time will be 1 hour faster. Status Display Select the items that will be displayed on local NVR. System Setup 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 39 The Time zone can only be modified on local NVR. Tick either Synchronize with PC’s time or Manual checkbox to activate its time settings. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 40: Player

    Start the Ext2Fsd, and it will detects all the disks connected with your PC. Right-click on the NVR HDD and choose “Change Drive Letter”. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 41 Assign a letter to the HDD, and then click “OK” so that the HDD get a drive letter and can be recognized by Windows. Under HDD Play mode, select the NVR HDD to load the video files inside. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 42 You can open a single video backup file, select "File->File Play”. Then “Open". Choose the path the .haX file reserved and pick the file to playback. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 43 Press the play icon to play the video or pause picture. PLAYBACK OPERATION D-1. TIME SEARCH Select the Date and Time and then click to play the video. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 44 NVR HDD (Shown in the following image). Click to check the log records. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
  • Page 45 ZOOM Tick the “Zoom” box and drag an area on the screen, then click the area to zoom in. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162 www.legrand.us...
  • Page 46 While the converting is in process, you may press the button to pause at any time before it is completed. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...

  • Page 47: Plugin

    Click the button to download Plugin for running the NVR system on PC. Log List System Log: Click to view the system log and change settings. Event Log: Click to view events. 301 Fulling Mill Road, Suite G ©Copyright 2016 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800) 223-4162...
