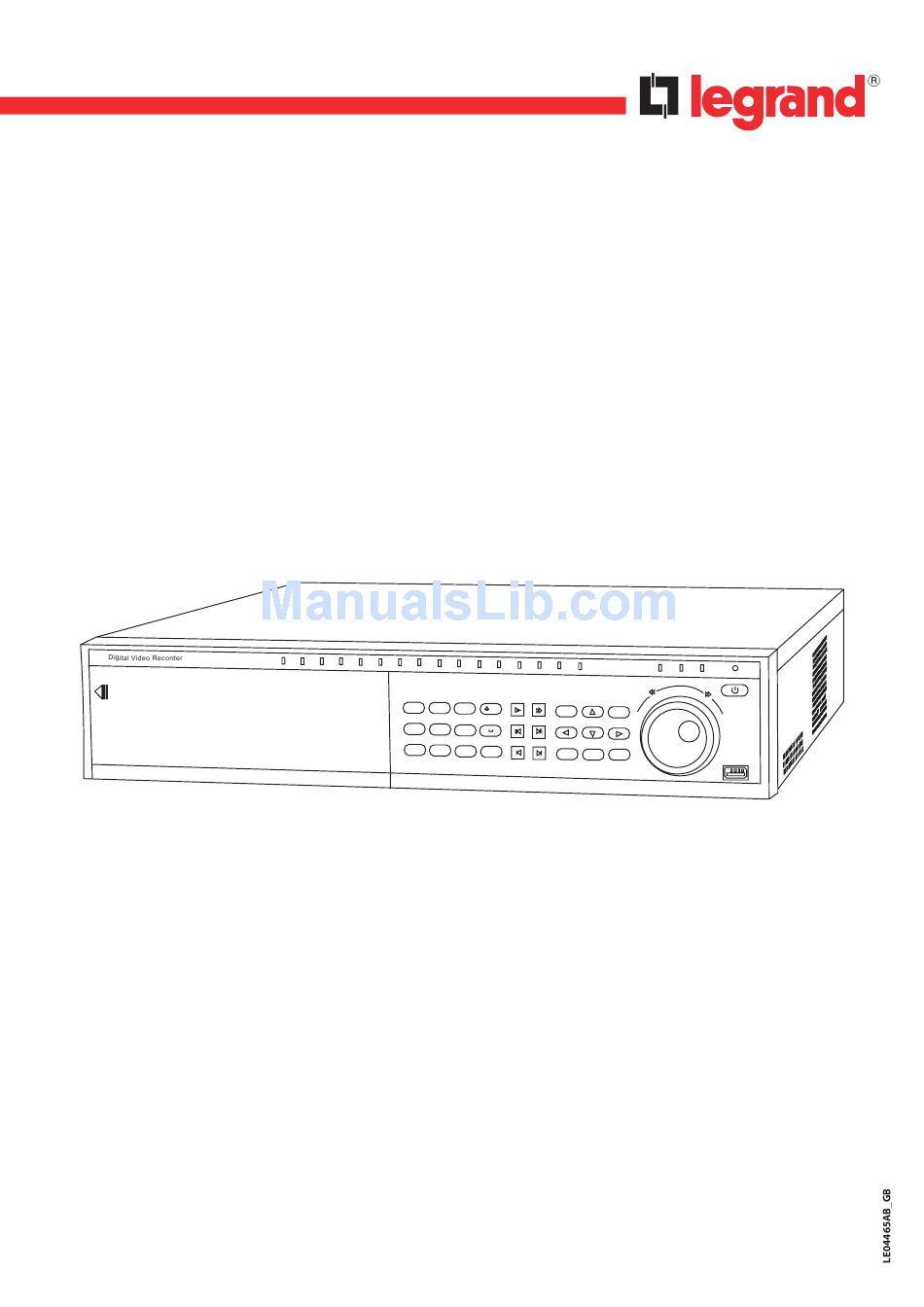

4 / 8 / 16 CH DVR, LAN, Central Management Software
4 305 57 / 66 / 45 / 4 305 58 / 67 / 46 / 4 305 59 / 68 / 47

USER MANUAL

1
2
3
4
5
6
7
8
9
1 . ,
2ABC
3DEF
4GHI
5JKL
6MNO
7PQRS
8STU
9WXYZ
10
11
12
13
14
15
16
Esc
Enter
0
-/_
Fn
Rec
Mult
ACT
Status
PWR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND DVR

Summary of Contents for LEGRAND DVR

  • Page 1: User Manual

    • 4 / 8 / 16 CH DVR, LAN, Central Management Software 4 305 57 / 66 / 45 / 4 305 58 / 67 / 46 / 4 305 59 / 68 / 47 Status 1 . , 2ABC...

  • Page 2: Table Of Contents

    Indice 1 Packing detail ................. 4 2 Overview and controls ............5 2.1 Front Panel ....................... 5 2.2 Rear Panel ........................ 7 2.3 Connection Sample ....................8 2.4 Remote control ......................9 2.5 Mouse operation ....................11 3 Installation and Connections ..........13 3.1 HDD Installation .......................13 3.2 Rack Installation ....................
  • Page 3 7.1 Androïd mobile phone and IPhone 3G (8G) ............64 7.2 Blackberry mobile phone ..................67 7.3 Symbian Mobile Phone ..................71 7.4 Windows Mobile Phone ..................75 7.5 DVR Setup ......................79 8 Auxiliary Functions ............. 80 8.1 Snapshot ........................ 80 8.2 Text Overlay ......................83 9 Web client operation ............

  • Page 4: Packing Detail

    Enregistreur LAN HR 4 / 8 / 16 cameras 430 557 / 558 / 559 Quick start guide and CD Status 1 . , 2ABC 3DEF Enter 4GHI 5JKL 6MNO 7PQRS 8STU 9WXYZ Mult USER MANUAL Audio connector (Not included in the 4 channels DVR) Power cord...

  • Page 5: Overview And Controls

    2. Overview and controls This section provides information about front panel and rear panel. When you install the DVR, refer to this part first. 2.1 Front Panel Front panel buttons information:   Name Icon Function Power button, press this button for three seconds to boot up or shut Power button down DVR.
  • Page 6   USB port To connect USB storage device, USB mouse. Remote control Light on the DVR can receive the IR signal from the remote control. indication light Status indication light STATUS If there is “Fn” indication light, current status indication light is null.

  • Page 7: Rear Panel

    2.2 Rear Panel Rear panel is shown below.   Rear panel information: Main power switch. Power supply. Fan. Loop video output. 1st to 4th-channel audio input. Video input. BNC input port for cameras (4 / 8 / 16). DB25 port (5th to 16th-channel audio input port). Audio output.

  • Page 8: Connection Sample

    2.3 Connection Sample Refer to the scheme below for connection sample.

  • Page 9: Remote Control

    Icon Function When you have several DVR, input the device number you have set Address in MAIN MENU -> SETTING -> GENERAL, field “DVR N°”, so you can control it. Multiple-window switch Switch between one-window and multiple-window. Input password, channel or switch channel.
  • Page 10 Name Icon Fonction Activate current control, modify setup. Increase / decrease number. Up / down Assistant function such as PTZ menu. Shift current activated control. Left / right When playback, click these buttons to control playback bar. Forward Various forward speeds and normal speed playback. Previous Please refer to the previous in the front panel.

  • Page 11: Mouse Operation

    2.5 Mouse operation Please refer to the following sheet for mouse operation instruction. Left click System pops up password input dialogue box if you have not logged in. mouse: In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click on the mouse to view menu content.
  • Page 12 2.6 Front Panel Click “Fn” key and use direction keys to select number you want. Click on “Enter” button to valid. Use > or < to shift between small letter and capital letter.

  • Page 13: Installation And Connections

    Note: All the installation and operations here should conform to your local electric safety rules. 3.1 HDD Installation The DVR is provided with a SATA HDD and it can be equipped with maximum 8 SATA HDDs. Recommended models are: - SEAGATE Barracuda series - SEAGATE SV35 series - WESTERN DIGITAL Caviar series.

  • Page 14: Connecting Power Supply

    3.3 Connecting Power Supply Please check input voltage and device power button match or not. We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral equipments operation such as cameras. 3.4 Connecting Video Input and Output Devices Connecting Video Input The video input interface is BNC.

  • Page 15: Connecting Audio Input & Output, Bidirectional Audio

    3.5 Connecting Audio Input & Output, Bidirectional Audio Audio Input The DVR audio inputs adopt BNC port. Device supports bidirectional talk via BNC. Due to high impedance of audio input, use active sound pick-up. Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose contact and it shall be away from high tension current.

  • Page 16: Alarm Input And Output Connection

    Alarm input needs the low level voltage signal. d. Alarm input mode can be either NO (Normal Open) or NC (Normal Close). e. When you are connecting two DVRs or you are connecting one DVR and one other device, use a relay to separate them.
  • Page 17 Use the controllable +12V power to reset the smoke sensor remotely. Example 1: Input alarm connection. The end device is Normally Open (NO) or Normally Close (NC) and the DVR can be set in MAIN MENU->SETTING->ALARM. If the end device is NO the alarm setting in the DVR is NO.
  • Page 18 Alarm Output Port Provide power to peripheral alarm device. • To avoid overloading, please read the following relay parameters sheet carefully. • Controllable +12V, can be used to provide power to devices such as reset smoke sensor. • RS485 A / B cable is for the A / B cable of the decoder PTZ. •...

  • Page 19: Rs232

    3.8 RS485 When the DVR receives a camera control command, it transmits that command up the cable to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR.

  • Page 20: Graphic User Interface Operations

    4 Graphic User Interface Operations Connect the device to the monitor and to the cameras, insert the mouse and connect the power cable. Push the on / off button in the rear panel and then you can see the analog video output. You can use the mouse to implement some simple GUI operation.

  • Page 21: Login

    Preview Zoom Function: Move your mouse to the left top corner of the preview interface; you can see the preview zoom button. You see a hook icon on the picture below, left click on this one. Now you have enabled the preview zoom function. You can drag the mouse to zoom in the image.

  • Page 22: Right Click Menu

    4.3 Right Click Menu After you logged in the device, a right click mouse, display the short cut menu. You can set windows display, PTZ control, video color, search record etc. The live view window includes 1 / 4 / 9 / 16. Important : Before starting record or setting action, set the language, the date and time system in MAIN MENU ->...
  • Page 23 Manual record operations Use mouse or direction key to highlight a channel number, means it is not in recording status, means is in recording status. There are three statuses: Schedule / Manual / Stop. Statuses Functions Schedule Channel will record as you have previously set in MAIN MENU -> SETTING -> SCHEDULE. All channel Schedule record: highlight “All”...

  • Page 24: Schedule

    4.6 Schedule Go to MAIN MENU ->SETTING -> SCHEDULE The default schedule setting is 24 hours regular mode. You can define 6 periods for each week days per channel. If “All” “Week Day” is selected, the periods apply for all the week days.

  • Page 25: Research Recording And Playback

    4.7 Research recording and playback Click search button in the main menu, search interface is shown as below. Usually there are three file types: - R: Regular recording file. - A: External alarm recording file. - M: Motion detection recording file Name Function Display / window...
  • Page 26 Name Function - Double click it, you can view the picture / record file list of current day. - The file list is to display the first channel of the record file. - The system can display max 128 files in one time. Use the or the mouse to view the file.
  • Page 27 Name Function Select the file(s) you want to backup from the file list. System max supports files from four channels. Then click the backup button, now you can see the backup menu. Click Backup the start button to begin the backup operation. Check the file again you can cancel current selection.
  • Page 28 Full screen (15) In full screen mode, the toolbar is hidden, put the cursor on the screen bottom to bring it. Digital zoom (16) Drag your mouse in the screen to select a section and then left click mouse to realise digital zoom. Right click mouse returns to the previous screen.

  • Page 29: Ptz

    4.8 PTZ Note: To configure the motorized camera which are in our range you have to configure the DVR. All the operations here are based on PELCOD protocol and 2400 Bauds. For other protocols, there might be little differences. PTZ Setup Note: The camera video should be in the current screen.
  • Page 30 In the short cut menu select “Pan / Tilt / Zoom”, the motorized camera view display and the PTZ control interface appe- ars. Number Item Function Speed Value ranges from 1 to 8. Set the camera movement speed. Zoom Click icon to adjust zoom.
  • Page 31 Preset Preset Setup 1 - Use eight direction arrows to adjust camera to the proper position. 2 - Click on the “Set” button in the interface below and enter the preset number you want. 3 - The system saves the speed dome position and the preset number when you click on the “Set” button. You can set the following items: •...
  • Page 32 To enter in OSD menu, call “Preset 95”. The OSD menu displays. OSD menu control : - Use the down and up direction arrows to select parameter. - Save the value and exit with - focus “near”. - Modify with the up and down arrow. - Cancel the value with - focus “far”.

  • Page 33: Understanding Of Menu Operations And Controls

    5. Understanding of Menu Operations and Controls 5.1 Menu Tree SEARCH INFO ________________ HDD INFO 5.4.1 ________________ BPS 5.4.2 ________________ LOG 5.4.3 ________________ VERSION 5.4.4 ________________ ONLINE USERS 5.4.5 SETTING ________________ GENERAL 5.5.1 ________________ ENCODE 5.5.2 ________________ SCHEDULE 5.5.3 ________________ RS232 5.5.4 ________________ NETWORK 5.5.5...

  • Page 34: Info

    GENERAL menu (MAIN MENU -> SETTING -> GENERAL) to adjust system time or go to HDD MANAGE menu (MAIN MENU -> ADVANCED ->HDD MANAGE) to format HDD and then reboot the DVR. After system booted up, if there is any conflict, system goes to HDD information interface directly.
  • Page 35 5.4.2 BPS You can see current video data stream in Kilo Bytes per second (KB / s) and occupied hard disk storage in Mega Bytes per hour (MB / h).   5.4.3 LOG You can see the system log file. The log file contents 1024 lines and it lists the following information. The log types include system operation, configuration operation, data management, alarm event, record operation, log clear and etc.
  • Page 36 2) Insert the USB key into your computer. Copy the “update.bin” file into your USB flash drive. Warning : please put it in the outmost layer of the USB flash do not put it in any sub folder. 3) Insert the USB key into DVR. 4) Click on “Start” it will start USB upgrade.

  • Page 37: Setting

    5.4.5 ONLINE USERS Here you can manage online users. You can disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds   5.5 Setting MAIN MENU -> SETTING interface is shown below.  ...
  • Page 38 Default value is 60 minutes. 9 - DVR No: When you are using one remote control to control several DVRs, you can give a number to each DVR for your management. Use the “Add” button on the remote control 10 - Video standard: PAL.
  • Page 39 5.5.2 Encode ENCODE setting includes the following items. 1 - Channel: Select the channel you want. 2 - Type: Select the recording mode associated with the current setting 3 - Compression: System only supports H.264. 4 - Resolution: System supports various resolutions, you can select from the dropdown list. The main stream supports D1 / HD1 / BCIF / CIF / QCIF and the extra stream supports CIF / QCIF.
  • Page 40 5.5.3 Schedule menu After system booted up, it is in default 24-hour regular mode. You can set record type and time in the MAIN MENU -> SETTING -> SCHEDULE, See below.   1 - Channel: select the channel number first. You can select “all” if you want to set for the whole channels. 2 - Week day: there are eight options: ranges from Saturday to Sunday and all.
  • Page 41 You can set for one channel and then click on “Save’ button or you can set for “All” channels and then click on the “Save” button to memorize all the settings. Redundancy (for DVR with several HDD) Redundancy function allows you to memorize record files in several disks. If file damage occurred in one disk, there is a spare one in the other disk.
  • Page 42 2- In the MAIN MENU -> ADVANCED -> HDD MANAGE, you can set one or more disk(s) as redundant. You can select from the drop down list. Note: only read / write disk or read-only disk can backup file and support file search function, so you need to set at least one read-write disk otherwise you cannot record video.
  • Page 43 5.5.4 RS232 RS232 interface is shown below. There are five items. See below   1 - Function: You can select various devices. 2 - Baud rate: Select the proper baud rate. 3 - Data bit: You can select proper data bit. The value ranges from 5 to 8. 4 - Stop bit: There are two values: 1 / 2.
  • Page 44 IP filter interface is shown below. You can add IP in the following list. The list supports max 64 IP addresses. Please Note after you enabled this function, only the IP listed below can access current DVR. If you disable this function, all IP addresses can access current DVR.
  • Page 45 In Windows XP OS, you can use command “net start w32time” to boot up NTP service.   Server IP: input the NTP server address or name. • Port: the DVR supports TCP transmission only. Port default value is 123. • Time zone: select your corresponding time zone here. •...
  • Page 46 Click on the “Save” button, you need to restart to activate your configuration. After rebooting, the DVR will connect to internet automatically. The IP in the PPPoE is the DVR dynamic value. You can access this IP to visit the unit.  ...
  • Page 47 After rebooting, open IE and input as below: http : / / (DDNS server IP) / (virtual directory name) / webtest.htm e.g.: http : / / 10.6.2.85 / DVR _DDNS / webtest.htm.) Now you can open DDNSServer web search page.
  • Page 48 5.5.6 Alarm Setup and Alarm Activation Before operation, make sure you have properly connected alarm devices such as buzzer. In the MAIN MENU -> SETTING -> ALARM you can see alarm setup interface. See below: 8 - 9 - 10 1- Event type: There are two types.
  • Page 49 5 - Anti-dither: System only memorizes one event during the anti-dither period. The value ranges is from 1 to 600 seconds. 6 - Alarm output: When alarm occurred, system enables peripheral alarm devices. 7 - Latch: You can set delay duration, system automatically delays specified seconds in turning off alarm and activated output after external alarm cancelled.
  • Page 50 5.5.7 Detect In the MAIN MENU -> SETTING -> DETECT, you can see motion detection interface. You can see in the dropdown list three detection types: - Motion Detect, - Video Loss, - Camera Masking. 1) Motion Detection Analysis the video, system enable motion detection alarm when it detects the motion signal reached the specified sen- sitivity.
  • Page 51 5 - Period: If you select “Work Day” or “Free Day” in the list you can set for business day and non-business day. Click on the “Set” button.   6 - Anti-dither: System only memorizes one event during the anti-dither period. The value ranges is from 0 to 600 seconds.
  • Page 52 Notes: - In motion detection mode, you cannot use copy / paste to set channel setup since the video in each channel may not be the same. - To activate motion detection go to MAIN MENU -> SETTING -> SCHEDULE and select “MD” or “MD Alarm” for “Channel” and “Period”.
  • Page 53 5.5.9 Display DISPLAY setup interface is shown below.   1 - Transparency: You can adjust the transparency of the menu display. The value ranges from 128 to 255. 2 - Channel name: You can modify the channel name. All your modifications are only applied to local end. System max support 25 characters.
  • Page 54 3 - Time display: You can select to display time or not when system is playback. 4 - Channel display: You can select to channel name or not when system is playback. 5 - Resolution: Four options are available: 1920x1024, 1280x1024 (default), 1280x720, 1024x768. Make sure your monitor supports the resolution before change it.

  • Page 55: Advanced

    5.6 Advanced Click on the ADVANCED icon in the main window, the interface is shown below. There are ten function keys: HDD MANAGE, ABNORMALITY, ALARM OUTPUT, RECORD, ACCOUNT, AUTO MAINTAIN, TV ADJUST, VIDEO MATRIX, TEXT OVERLAY and CONFIG BACKUP.   5.6.1 HDD manage You can see and implement hard disk management.
  • Page 56 5.6.2 Abnormality   The abnormality interface is shown above. You can associate an event type and one or several alarm. 1 - Event type: There are several options for you such as “Disk error”, “No disk”, “No space”, “IP conflict” , “Net disconnection”, “MAC Conflicted”.
  • Page 57 5.6.5 Account You can implement the account management.   1 - Add / Modify User Click on “Add user” button, the interface is shown below. Input the user name and the password select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user.
  • Page 58   3 - Modify Password Click on “Modify Password” button, the interface is shown below. Select the account from the dropdown list, input the old password and then input the new password twice. Click the “Save” button to confirm current modification. For the users of user account right, it can modify password of other users.
  • Page 59 5.6.6 Auto Maintain You can set auto-reboot time for the specified day from the dropdown list and you can auto-delete old files setup it means the record time. After all the setups please click on the “Save” button, system goes back to the previous menu.  ...

  • Page 60: Backup Records Or Exportation

      5.7 Backup records or exportation The DVR supports USB device backup and network download. Here we introduce USB backup and eSATA backup. You can refer to Chapter on Web Client Operation for network download backup operation. In SEARCH menu you can export or backup the specific records or a part of a record you have seen (refer to SEARCH menu) and in MAIN MENU ->...
  • Page 61 2 - “Backup” button Select backup device and then select channel, file start time and end time. Click on “Add” button, system begins to search. All matched files are listed below. System automatically calculates the needed and remained capacities. System only backups files with a √ before record name. You can use “Fn“ button and Up / Down arrow on the remote control or on the front panel to select and deselect a record.

  • Page 62: Shutdown

      - The other way is to press power button on the front panel for at least 3 seconds, system will stop all operation, then you can press the power button on the rear panel to turn off the DVR.

  • Page 63: Auxiliary Menu

    6. Auxiliary Menu Surveillance mode, right click mouse. The interface is shown below: 6.1 View 1, 4, 9, 16 Refer to DISPLAY menu (MAIN MENU -> SETTING -> DISPLAY) chapter 5.5.9 6.2 Pan / Tilt / Zoom Menu Refer to Pan / Tilt / Zoom chapter 5.5.8 6.3 Color Setting You can set the camera color according to two defined periods like the day and the night.

  • Page 64: Mobile Install

    7 Mobile install You can find the firmwares for Mobile Phone Symbian, Blackberry and Androïd Windows Mobile on the CD. 7.1 Androïd mobile phone and IPhone 3G (8G) This software has the following features: • Use mobile phone to view real-time video. •...
  • Page 65 If it is your first time to use the software, or you want to modify current setup, please click button to modify the setup. See below. Address: DVR IP in WAN or dynamic domain. • Port: DVR port value. •...
  • Page 66   6) Click the icon to switch between the normal screen and then full screen.     Normal screen Full screen When you knife-hold the iPhone, system goes to the full-screen automatically. 7) Select the corresponding channel name, system can open the specified channel and then play the video automatically.

  • Page 67: Blackberry Mobile Phone

    7.2 Blackberry mobile phone 7.2.1 Environment Just support Blackberry Version 4.6.0 and 5.0 • The connected devices shall support RTSP service. • You can download the firmware from the CD. • 7.2.2 Mobile Phone Software Please refer to the Blackberry mobile phone user’s manual to install the software to the mobile phone. Usually you need to use the Blackberry desktop manager to install.
  • Page 68 Mobile phone monitor software can remember the recent login device information, so that you can login conveniently the next time. If you cannot login, please check: • Input information is valid. • Server is running properly now. • Network connection is OK (please access a website via browser to make sure you have connected to the Internet.) 7.2.3 Main Interface When you log in you can see the interface below with the available channels.
  • Page 69 7.2.4 Video Browser Please select the corresponding channel you want to see; you can see the channel interface. Camera: Go to channel setup interface. • PTZ: Display / Hide PTZ. • Full: Click it to go to the full-screen display mode. You can click the rolling ball to exit the full-screen mode. The “space” •...
  • Page 70 7.2.6 Set Click on “Set” button, you can see the following interface RTSP port: You can set device listening port. Default value is 554. • Stream type: You can select the stream type. It includes two options: main stream / extra stream. •...

  • Page 71: Symbian Mobile Phone

    7.3 Symbian Mobile Phone 7.3.1 Environment Technically speaking, this software can support all Symbian S60 3rd Edition Symbian S60 3rd Edition FP1, Symbian S60 3rd Edition FP2, Symbian S60 5th OS mobile phones. We recommend the mobile phone such as E71, N82, N85, 5530XM that have passed our test.
  • Page 72 7.3.4 Software Login Click login button, you can see the following interface. Mobile phone monitor software can remember the recent login device information, so that you can login conveniently the next time. If you can not login, please check if: - Input information is valid.
  • Page 73 7.3.5 Video Browser Refer to the following information for button function. - Back: Switch to the surveillance video. - Camera: Switch to the channel selection interface. - PTZ: Hide / display PTZ control interface. - Full screen: Switch to the full screen surveillance interface. - Exit: Click it to exit the mobile phone surveillance.
  • Page 74 7.3.7 Exit Click Right button or click the Exit button, you can see the following interface. Use the navigation button to select the Yes button; you can exit the mobile phone monitor software. Note : Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice.

  • Page 75: Windows Mobile Phone

    7.4 Windows Mobile Phone 7.4.1 Environment This software supports Windows Mobile OS (5.0 or higher); Please refer to the following brand list: - Dopod: C730, HTC Touch, HKC Pearl, HTC6800, HTC6900, HTC6850, P3450, P4550, S1, S420, S730, Touch; , LG KC1, KS20, 830, 838, 900, Athena, C800(C858), CHT 9000, CHT 9100, D600, D802, D810, E806c, M700, MUSE, P800W, U1000;...
  • Page 76 After software installation, you can see the following interface. 7.4.3 Surveillance Software In the mobile phone, from Start to the Program, you can see the software shortcut menu. Its icon is (DMSS). Click DMSS button Input Device IP, Device port, User name and Password.
  • Page 77 7.4.4 Software Login Click login button, you can see the following interface. Mobile phone monitor software can remember the recent login device information, so that you can login conveniently the next time. If you can not login, please check: - Input information is valid. - Server is running properly now.
  • Page 78 7.4.6 PTZ Control There are two ways for you to control PTZ. - In the full-screen mode (or you have open the PTZ control interface), you can use the direction buttons in the mobile phone to control the PTZ direction. - In non-real-time monitor mode, you can click the PTZ button to go to the PTZ control interface.

  • Page 79: Dvr Setup

    Please set the connected DVR encode information to make the device suitable for the mobile phone monitor. You can go to the DVR Web or go to the DVR local end to complete the setup. In this user’s manual, we introduce how to finish setup at the local end.

  • Page 80: Auxiliary Functions

    8 Auxiliary Functions 8.1 Snapshot To use the snapshot function you have to install a FTP server first on a computer, the snapshots are only sent by FTP protocol. 8.1.1 Install and setting FTP with nothing special You can set the FTP function to sent the snapshot to the FTP server where you want to storage the snapshot, In MAIN MENU ->...
  • Page 81     Please highlight the icon in front of Enable to activate FTP function. After enable schedule snapshot see below or activation snapshot see below, now system can upload the picture files to the FTP server. 8.1.2 Set Snapshot function Get into MAIN MENU ->...
  • Page 82 Timing If you set the Timing mode. System will send snapshot by time. So first you should set the schedule of snapshot. Get into MAIN MENU -> SETTING -> SCHEDULE   If you set the mode “trigger”, you should set when to trigger the snapshot, the motion detection happen or the alarm comes.

  • Page 83: Text Overlay

    8.2 Text Overlay The Text overlay function is for financial areas. It includes Sniffer, information analysis and title overlay function. The Sniffer mode includes COM and network. 8.2.1 COM Type The COM interface is shown below.   1 - Protocol: Select protocol from the dropdown list.
  • Page 84 Without the protocol For the ATM / POS without the protocol, the interface is shown below. Source IP refers to host IP address that sends out information (usually it is the device host). Destination IP refers to other systems that receive information. Usually you do not need to set source port and target port.

  • Page 85: Web Client Operation

    9.2 Login Open Internet Explorer and input DVR address in the URL address. For example, if your DVR IP is 10.10.3.16, then please input http: / / 10.10.3.16 in IE address column. See below. Input DVR IP address  ...
  • Page 86 (“PIC Path” button) and of the records (“REC Path” button) and you can also reboot the DVR (“Reboot” button). - Section 4 with the real time preview window. The current preview is circled by a green rectangle.
  • Page 87 9.2.1 Real-time Monitor In section 2, left click on the channel name you want and the corresponding video displays on the current window (sec-   tion 4). Section 4, on the top left corner, you can see : 1: Device IP, 2: Channel number, 3: Network monitor bit stream.
  • Page 88 Section 3: there are PTZ, “color” tab and “more” tab” where you can select “picture path” and “record path” and also you can reboot the DVR. Before PTZ operation, please make sure you have properly set PTZ protocol. In MAIN MENU -> SETTING -> PAN / TILT / ZOOM.
  • Page 89 Click “PTZ setup” button you can see the following interface. - Auto Scan: (Not available) - Pattern: (Not available) - Preset: Move the camera to your desired location and then input preset value. Click “Add” button, you have set one preset. - Auto tour: (Not available) - Assistant:...
  • Page 90 9.2.3 Color Click on “Color” tab in section 3. You have this interface. Here you can select one channel and then adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click reset button to use system default setup.  ...

  • Page 91: Configuration (In Section 1 "Config.")

    Click record path button, you can see the follow interface. Click on “Choose” button to modify path.   Click on “reboot” button, system pops up the following dialogue box   Click on “OK” to reboot. If there is local use logged in the system menu, or the Web logged in user has no right to reboot the device system pops up a dialogue box to alert you.
  • Page 92 HDD information You can see local storage status and network status including, free capacity and total capacity.   Here you can see the system log.     Click on the “Backup” button, you have this interface.  ...
  • Page 93 Refer to the following tab for log parameter information. Parameter Function Type Log types include: system operation, configuration operation, data ma- nagement, alarm event, record operation, user management, log clear and file operation. Search You can select log type from the drop down list and then click search button to see the list.
  • Page 94 Refer to the following tab for detailed information. Parameter Function Here is for you to modify system time. Please click on “Save” button after your completed mo- System Time dification. Sync PC You can click this button to save the system time as your PC current time. Date Here you can select date format from the dropdown list.
  • Page 95 Refer to the following tab for detailed information. Parameter Function Channel Here is for you to select a monitor channel. Channel Name Here is to display current channel name. You can modify it. Compression H.264 It includes main stream, motion stream and alarm stream. You can select different encode frame rates form different recorded events.
  • Page 96 Schedule Here you can set different periods for various days. There are max six periods in one day.    ...
  • Page 97 Parameter Function Channel Select a channel first. Input pre-record value here. Pre-record System can record the three to five seconds video before activating the record operation into the file. (Depends on data size). Click on “Set” button, you can go to the corresponding setup interface. Set schedule period and then select corresponding record or schedule, motion detection and alarm.
  • Page 98 There are two options: COM 01 and keyboard. Function Console is to upgrade the program or debug via COM or mini terminal software. Keyboard: COM control protocol. You can use keyboard to control DVR via COM. Data Bit The value ranges from 5 to 8.
  • Page 99 Parameter Function Ethernet Please select the network card first. DHCP Dynamically get IP address. You can get the device IP from the DHCP server if you ena- bled this function. TCP Port Default value is 37777. HTTP Port Default value is 80. UDP Port Default value is 37778.
  • Page 100 Parameter Function SMTP Server Input server address and then enable this function. Port Input port value here. User Name The sender email account user name. Password The sender email account password. Sender Sender email address. Subject Input email subject here. Max 32-digit. Input receiver email address here.
  • Page 101 c- NAS NAS interface is shown below   Parameter Function NAS enable Please select network storage protocol and then enable NAS function. Server IP Input remote storage server IP address. Port Input Remote storage server port number. User Name Log in user account. The file length you upload to the FTP.
  • Page 102   You can refer to the following sheet for time zone information. City / Region Name Time Zone London GMT+0 Berlin GMT+1 Cairo GMT+2 Moscow GMT+3 New Deli GMT+5 Bangkok GMT+7 Beijing (Hong Kong) GMT+8 Tokyo GMT+9 Sydney GMT+10 Hawaii GMT-10 Alaska GMT-9...
  • Page 103 e- Alarm Center Alarm center interface is shown as below. The alarm signal can be uploaded to the alarm centre when there is local alarm. Set the corresponding parameters such as server IP, port and etc. The system can send out the data as the protocol defined to the client end.  ...
  • Page 104 Display the selected video in local monitor window. Tour Tour interval and tour mode are set in DVR local menu (Display chapter) Here you can set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.
  • Page 105 Detect Analysis the video, system enable motion detection alarm when it detects the motion signal reached the specified sen- sitivity. The detection interface is shown below.    ...
  • Page 106 Display the selected video in local monitor window. Tour Tour interval and tour mode are set in DVR local menu (Display chapter). Here you can set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.
  • Page 107 PTZ interface is shown below Before operations make sure you have set the speed dome address. The DVR and the speed dome connection are OK.   Parameter Function Channel You can select monitor channel from the dropdown list. Protocol Select the corresponding dome protocol (such as PELCOD).
  • Page 108 Default & Backup Default: Restore factory default setup. You can select corresponding items. Backup: Export current configuration to local PC or import configuration from current PC. System cannot restore some information such as network IP address.   Parameter Function Select All Restore factory default setup.
  • Page 109 Parameter Function Format Clear data in the disk. Read / write Set current disk as read / write Read only Set current disk as read. Redundant Set current disk as redundant disk. Please Note system needs to reboot to activate current setup. Alarm I / O Here you can search alarm output status  ...
  • Page 110 Record Record control interface is shown below.   Parameter Function Auto System enables auto record function as you set in record schedule setup. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop Stop current channel record no matter what period applied in the record setup.
  • Page 111 Auto Maintenance You can select auto reboot and auto delete old files interval from the dropdown list.   Snapshot The 1st to the 16th -channel support D1 / HD1 / BCIF / CIF / QCIF.  ...
  • Page 112 If you enable this function, system can send out email to alarm the specified user. Alarm upload System can upload the alarm signal to the network (includes the alarm centre.) Show message System can display alarm information in local DVR screen.
  • Page 113 The ATM / POS interface is shown below. Source IP refers to host IP address that sends out information (usually it is the device host connected to the DVR.) Destination IP refers to other systems that receive information.
  • Page 114 Auto Register Auto register interface is shown as below   Parameter Function Enable Enable auto register function. Device management server number. Device management server IP address. Port Server port number. Device ID Device ID in the device management server.

  • Page 115: Search

    9.4 Search Click search button, you can see an interface is shown as in picture below. 9.4.1 Network Download The record type includes the general record, alarm record, motion detect record, local record, picture, card number record. Please select record playback mode, and then select start time, end time and channel. Then please click on “Search” button, you can see the corresponding files in the list.
  • Page 116 Now you can see system begins download and the download button becomes stop button. You can click it to terminate current operation. At the bottom of the interface, there is a process bar for your reference.   When download completed, you can see a dialogue box shown below. Please click on “OK” to exit.  ...
  • Page 117 9.4.2 Remote Backup If you want to download the file(s) to your USB device (flash disk / burner) connected to the DVR, you can click the “Search” button at the bottom of the picture below. You can view the devices available and their corresponding information in the bottom pane.
  • Page 118 Refer to the following tab for detailed information. Type Parameter Function Type Record Search general record, alarm record and motion detection record. Alarm Search alarm record. Motion Search motion detection record. Detection Local Search local record. Snapshot Search snapshot file. Card This function is not available in current device.

  • Page 119: Alarm

    Playback device IP address and channel number.   Playback control bar 9.5 Alarm Click alarm function, you can see an interface is shown as in Figure below. Here you can set device alarm type and alarm sound setup.  ...

  • Page 120: About

    Please make sure current device can upload the alarm. Type Parameter Function Alarm Video loss System alarms when video loss occurs. Type Motion detection System alarms when motion detection alarm occurs. Disk full System alarms when disk is full. Disk error System alarms when disk error occurs.

  • Page 121: Faq

    There are following possibilities: Video quality setup is too low. • Program read error, bit data is too small. There is mosaic in the full screen. Please restart the DVR to solve this problem. • HDD data ribbon error. •...
  • Page 122 Network fluency is not good. • Client-end resources are limit. • There is multiple-cast group setup in DVR. This mode can result in mosaic. Usually we do not recommend this mode. • There is privacy mask or channel protection setup. •...
  • Page 123 Distance is too far or control angle is too small. • Remote control battery power is low. • Remote control is damaged or DVR front panel is damaged. • 21. Record storage period is not enough. There are following possibilities: Camera quality is too low.

  • Page 124: Storage Capacity

    Storage capacity DVR 4 ch 5 days 15 days 30 days 25 fps / ch 340 Go 1020 Go 2040 Go 1 HDD 320 Go 1 HDD 1To* 1 HDD 2To 12 fps / ch 160 Go 480 Go 960 Go...

  • Page 125: Specifications

    11. Specifications Specifications 4 305 57 / 66 / 45 4 305 58 / 67 / 46 4 305 59 / 68 / 47 System Main Processor High performance embedded microprocessor Operating System Embedded LINUX System Resources Pentaplex function: live, recording, playback, backup & remote access Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network Video...
  • Page 126 Specifications 4 305 57 / 66 / 45 4 305 58 / 67 / 46 4 305 59 / 68 / 47 Playback & Search Mode Time / Date, Alarm, Motion Detection & Exact search (accurate to Backup second) Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom (any size)
