Patton electronics SmartNode 4650 Series Quick Start Manual page 5

Network
You can check the connection with the ping command from the SmartNode to another host on the
1.
local LAN.
172.16.1.99(if-ip)[eth_dsl]#ping <IP Address of the host>
If the WAN address is not set to DHCP, to ping a device outside your local LAN you must first configure
Note
the default gateway. (For information on configuring the default gateway, refer to section "Set IP
addresses" in Appendix C, "Command Summary" of the SmartNode Series SmartWare Software Config-
uration Guide.)
SmartNode 4650 G.SHDSL Quick Start Guide
Straight-through wired
or crossover cable
WAN (DSL)

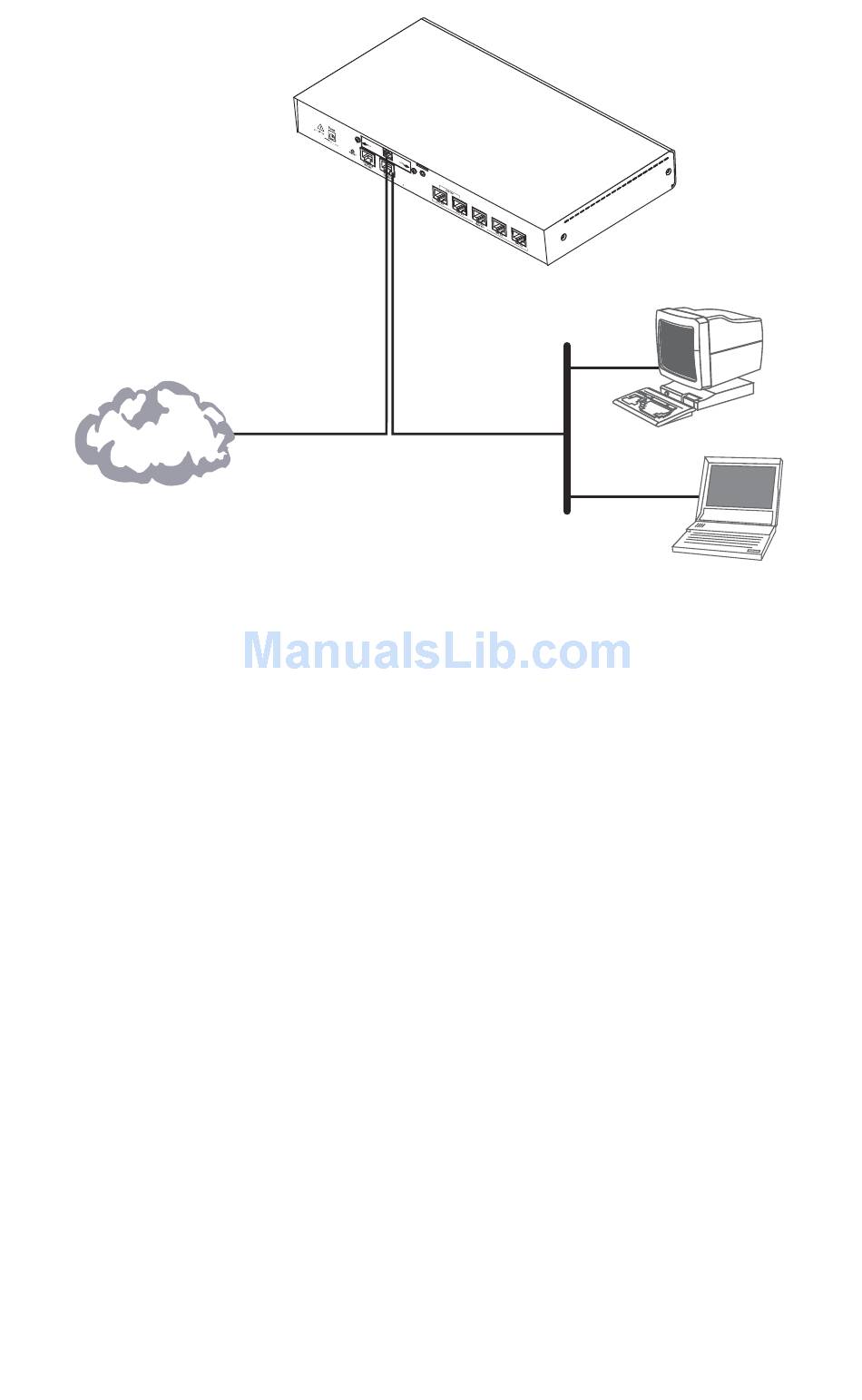

Connecting the SmartNode to the network
Figure 2.
LAN
LAN (ETH 0/0)
5
