Icom IC-F30GT Service Manual page 27

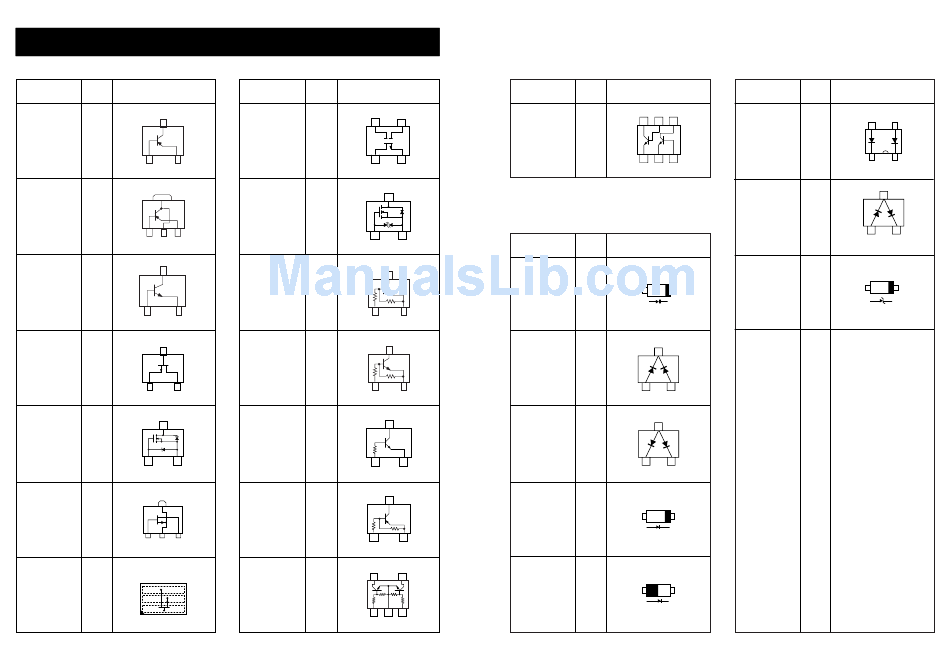

SECTION SECTION 8 PARTS LIST SEMI-CONDUCTOR INFORMATION
8 - 1 TRANSISTORS AND FETS
NAME SYMBOL INSIDE VIEW
C
2SA1362 GR AEG
B E
C
2SB1132 R BARB
B C E
C
2SC4081 R BR
2SC4116 GR LG
2SC4213 B AB
2SC4215 O QO
2SC4226 R25 R25
B E
G
2SK880-Y XY
S D
D
2SK1829 K1
S
G
S
2SK2973 K1
G S D
(TOP VIEW)
D D
2SK2974 K2974
S S
G G
NAME SYMBOL INSIDE VIEW
G2 G1
3SK206-T1 U78 U78
3SK293 UF
D S
D
CPH3403-TL KC
S
G
C
DTA144EUA 16
B E
C
DTC144EUA 26
B E
C
DTC144TE TL 06
B E
C
UN911H 6P
E
B
C1 C2
XP1214 9H
B1 E1 B2
NAME SYMBOL INSIDE VIEW
C1 B1 C2
XP6501 AB 5N
E1 E2 B2
8 - 2 DIODES
NAME SYMBOL INSIDE VIEW
1SV245 T3
A C
HVC350BTRF BO
C
DAN202U N
A1
A2
A1
DAP202U P
C1 C2
MA111 1B
A C
MA2S111 A
A C
MA77 4B
NAME SYMBOL INSIDE VIEW
A2 A1
MA713 MIN
C2 C1
MA742 M1U
A C
MA8024 2.4
MA8030-H 3^0
A
MA8056-M 5-6
MA8062-M 6-2
8 - 1
