Fanimation Islander Owner's Manual page 5

How to Assemble Your Ceiling Fan (cont'd)
NOTE: You will be using either the 6˝ downrod supplied with
your fan or an optional downrod purchased seperately.
4. Loosen the two setscrews in the Downrod Support.
Align the Clevis Pin holes in the Downrod with the holes
in the Downrod Support. Install the Clevis Pin and secure
with the Hairpin Clip. (Figure 4) Be sure to push the
straight leg of the hairpin clip through the hole near the
end of the clevis pin until the curved portion of the hairpin
clip snaps around the clevis pin. The hairpin clip must be
properly installed to prevent the clevis pin from working
loose. Pull on the Downrod to make sure the clevis pin is
properly installed.
NOTE: The setscrews must be properly installed as
described above, or fan-wobble could result.
5. Route wires through opening in Canopy.
Canopy on fan shown with open side facing up. (Figure 3)
6. Reinstall the Hanger Ball (Figure 3) on the Downrod as
follows. Route the three 80˝ wires through the Hanger Ball.
Position the Pin through the two holes in the Downrod and
align the Hanger Ball so the Pin is captured in the groove
in the top of the Hanger Ball. Pull the Hanger Ball up
tight against the pin. Securely tighten the setscrew in
the Hanger Ball. A loose setscrew could create fan
wobble.
▲WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the setscrews are securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
7. While pulling up on the hanger ball, securely tighten
the two 3/16-24 x 3/8˝ setscrews in the downrod support
(Figure 4).
8. Slide the motor coupling cover down until it touches the
top of the motor.
9. The fan comes with blue, black, and white leads. Before
installing fan, measure up approximately 6-9 inches above
top of Downrod/Hanger Ball Assembly. Cut off excess wire
and strip back insulation ½˝ from end of wire.
10. You have now completed the assembly of your new
ceiling fan. You can now proceed with the hanging and
the electrical wiring of your fan.
Ceiling
Canopy
Position
Downrod/Hanger
Ball Assembly
Clevis Pin
Setscrew
To reduce the risk of personal injury, do not bend the
blade holders when installing, balancing the blades or
cleaning the fan. Do not insert foreign objects in between
the rotating blades.
5
Downrod
Pin

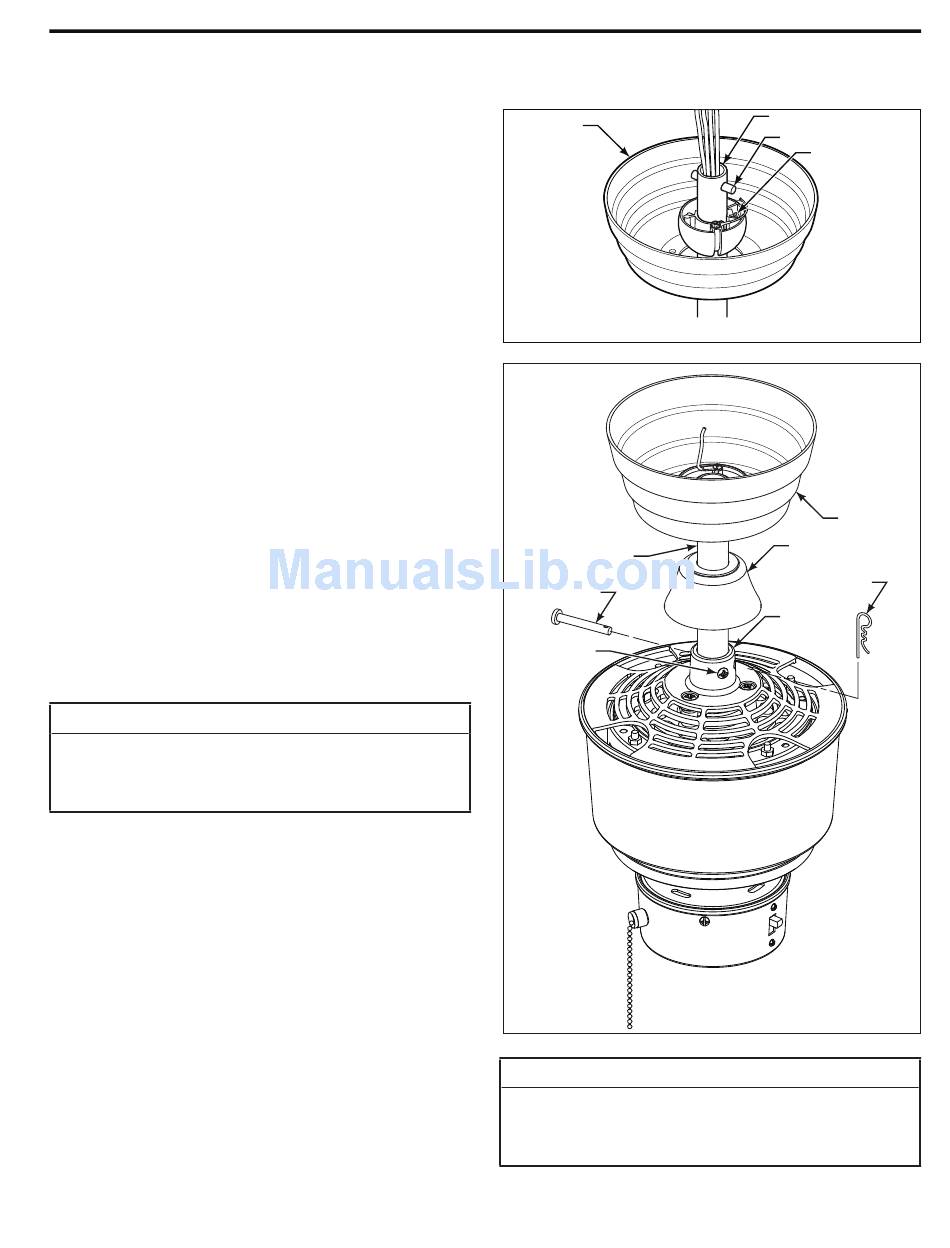

Figure 3
Motor Coupling
Cover
Downrod
Support
Figure 4
▲WARNING
Setscrew
Ceiling
Canopy
Hairpin
Clip
