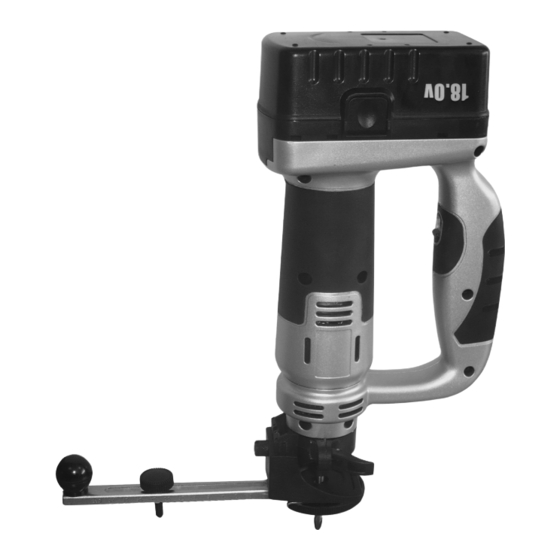

18 Volt Cutout tool
Set up and operating inStruCtionS
note: Battery paCK (67029) Sold Separately.
distributed exclusively by Harbor Freight tools
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
SaVe tHiS manual.
©
Copyright
2009 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
3491 Mission Oaks Blvd., Camarillo, CA 93011
®
. All rights reserved. No portion of this manual or any artwork
67042
®
.
Advertisement
Table of Contents
Related Manuals for Drill Master 67042
Summary of Contents for Drill Master 67042
-
Page 1: Set Up And Operating Instructions
18 Volt Cutout tool 67042 Set up and operating inStruCtionS note: Battery paCK (67029) Sold Separately. ® distributed exclusively by Harbor Freight tools 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com read this material before using this product. -
Page 2: Important Safety Information
Water entering minor or moderate injury. SKU 67042 For technical questions, please call 1-800-444-3353. Page 2... - Page 3 Power tools are away from moving parts. Loose dangerous in the hands of untrained users. SKU 67042 For technical questions, please call 1-800-444-3353. Page 3...
- Page 4 Shorting the battery terminals to- use the depth gauge at all times. gether may cause burns or a fire. The depth gauge is a working plat- SKU 67042 For technical questions, please call 1-800-444-3353. Page 4...
- Page 5 • Arsenic and chromium from chemi- receive adequate ventilation, due to cally treated lumber an electrical fault, or if it is used in a Your risk from these exposures var- SKU 67042 For technical questions, please call 1-800-444-3353. Page 5...
-
Page 6: Vibration Safety
Amperes related to vibration (such as tingling, numbness, and white or blue fingers), No Load Revolutions per Minute n 0 xxxx/min. (RPM) seek medical advice as soon as pos- sible. SKU 67042 For technical questions, please call 1-800-444-3353. Page 6... -
Page 7: Specifications
Slide the Base Plate (15) into place Cutting plate on the Base Plate Support (17) and attachment secure the Lock Screw (9) to the Handle Lock Nut (20) firmly. lock lever SKU 67042 For technical questions, please call 1-800-444-3353. Page 7... -
Page 8: Operating Instructions
Hold in the Spindle Lock while that it fits snugly into place. loosening the Collet Nut, turning it counterclockwise. Place Circle Cutting Guide (14) over the threaded portion of the Circle Remove the Cutout Bit. SKU 67042 For technical questions, please call 1-800-444-3353. Page 8... -
Page 9: Charging Instructions
Please refer to the 67031 Charger manual for important safety warnings and proper instructions on charging the battery pack. Warning! do not use a different Charger or Battery pack to power this tool. SKU 67042 For technical questions, please call 1-800-444-3353. Page 9... - Page 10 Slowly insert the tip of the Circle Size Knob into the center hole drilled previously. Place the Base Plate flat against the work surface. Turn the tool around slowly until it has made one full revolution. SKU 67042 For technical questions, please call 1-800-444-3353. Page 10...
-
Page 11: Maintenance And Servicing
Wear ANSI-approved safety goggles and NIOSH-approved dust mask/respirator while blowing dust out of motor using compressed air. Follow all safety precautions whenever diagnosing or servicing the tool. disconnect power supply before service. SKU 67042 For technical questions, please call 1-800-444-3353. Page 11... -
Page 12: Please Read The Following Carefully
If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not avail- able individually as replacement parts. SKU 67042 For technical questions, please call 1-800-444-3353. Page 12... -
Page 13: Assembly Diagram
22a/22b SKU 67042 For technical questions, please call 1-800-444-3353. Page 13... -
Page 14: Limited 90-Day Warranty
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353 SKU 67042 For technical questions, please call 1-800-444-3353. Page 14...
