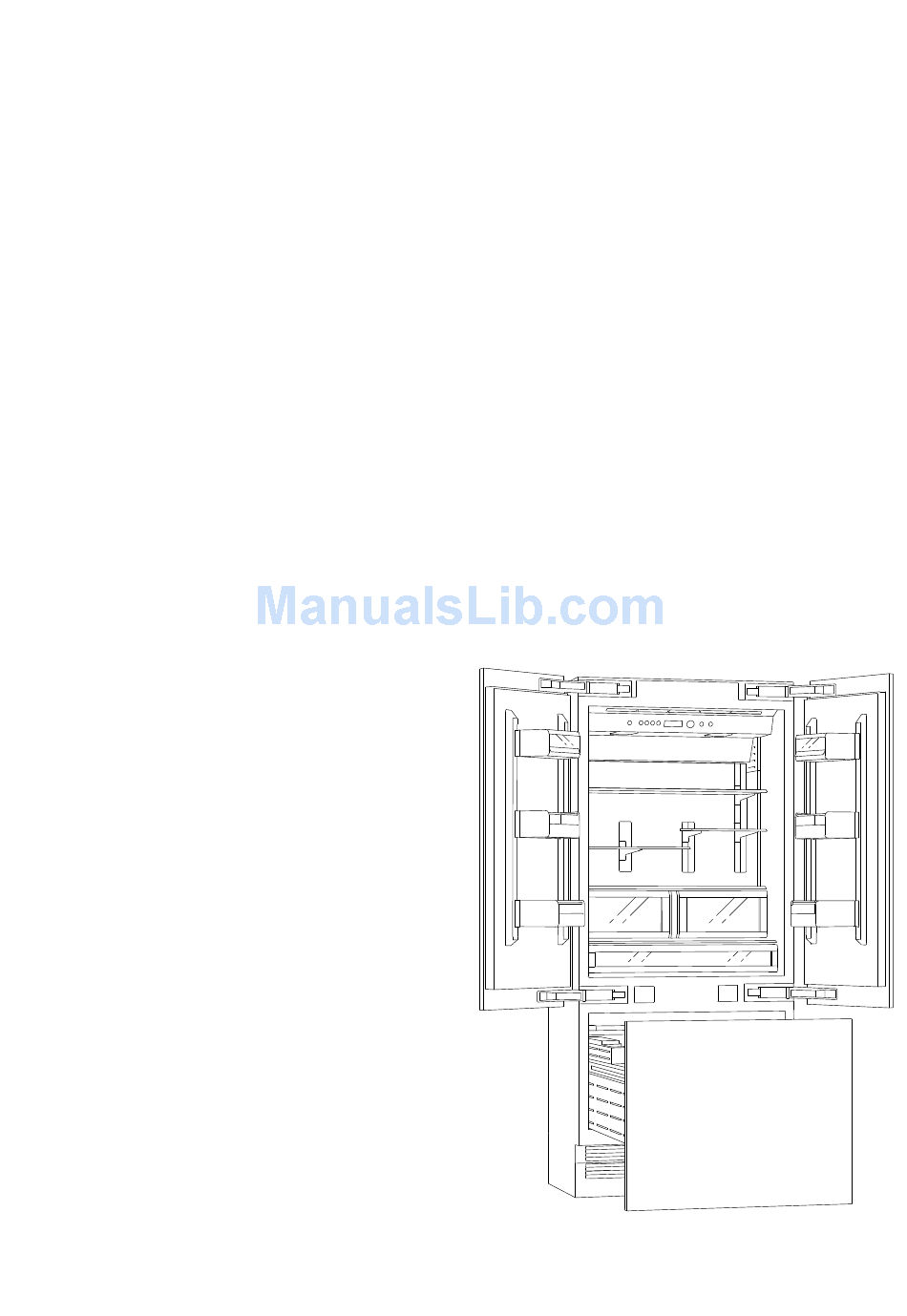

  • Page 1 Gaggenau Installation instruction RY 492...

  • Page 3: Table Of Contents

    Table of Contents Safety and warning information ......Sliding the appliance into the installation niche ......14 Installation possibilities ........Adjusting the appliance in the niche ..........15 Stand alone appliance ..........Fastening the appliance Stand alone appliance with dividing wall ....to the niche ceiling ........

  • Page 4: Safety And Warning Information

    Safety and warning information ã Warning These mounting instructions are designed to help you install your new appliance. Setting up and mounting this appliance requires The manufacturer cannot be held liable for mounting extensive expertise in various trades (mechanics, which has been improperly carried out. We recommend carpentry, plumbing, electrics).

  • Page 5: Installation Possibilities

    Installation possibilities Stand alone appliance as an end Various installation possibilities are available. These are only limited by the kitchen design and the section to a row of kitchen units finger protector function. If a side of the appliance is visible, use a side covering. Stand alone appliance The side covering must be connected firmly to the wall, the floor and the upper cupboards before the appliance...

  • Page 6: Installing The Appliance

    Installing the appliance Installation location Installation niche It is important to keep to the stated dimensions of the ã Caution: installation niche with a view to trouble-free fitting, and A fully laden appliance is heavy. the subsequent appearance of the kitchen furniture frontage.

  • Page 7: Electrical Connection

    Electrical connection Water connection The socket must be near the appliance and also freely The water may be connected only by a competent fitter accessible following installation of the appliance. according to the local regulations of the appropriate water supply company. The appliance complies with the protection class I.

  • Page 8: Dimensions Of The Installation Niche

    Dimensions of the Installation Niche Important: The lateral niche walls must be completely even and free from bumps. If the niche is formed as a separate part, the side walls must be completely even up to a depth of at least 100 mm and free from bumps.

  • Page 9: Tools And Accessories Which Are Needed

    Tools and Accessories which are needed Scope of delivery Tools – Installation manual – Operating instructions Rechargeable screwdriver – Installation accessories Additional accessories T20 Torx-bit + magnetic Lateral additional heating holder Necessary when the distance between two appliances is less than 160 mm. Connecting element for furniture doors T20 Torx screwdriver For connecting two furniture doors (see explanation in...

  • Page 10: Installation Manual

    Installation manual Removing the packaging The following mounting instructions describe mounting steps for various appliance models. ã Warning: Therefore, deviations may occur from that shown in the diagrams. – The appliance could tip over when unpacking. – The appliance could tip over when the Reference is made to specific mounting steps for appliance door is opened.

  • Page 11: Transporting The Appliance

    Transporting the appliance Installation preparation ã Unpack installation materials and accessories. Warning: To simplify installation, the packages are identified with The appliance is very heavy. labels A, B, C and D corresponding with the manual Weight (empty): 230 kg sections. Handle it carefully, as otherwise people helping to lift it could be hurt or the appliance could be damaged.

  • Page 12: Attaching The Anti-Tipping Brackets To The Wall

    Attaching the anti-tipping brackets Determine the fastening points of the anti-tilt brackets. to the wall Determine the actual dimensions according to the section “Dimensions of the Installation Niche”. ã Warning: Screw on the anti-tilt brackets tightly. Re-examine to Ensure that in the wall area there are no make sure that the screws are firmly tightened.

  • Page 13: Attaching Alternative Anti-Tilt Device

    Attaching alternative anti-tilt Attaching the edge protectors device To protect the edges of the installation cavity, it is recommended to attach edge protection made of Important note: a suitable material. If the anti-tilt brackets cannot be securely attached, a Attach the edge protection with the adhesive tape which wooden beam can be used above the appliance as an was used to attach the accessories to the appliance alternative anti-tilt device.

  • Page 14: Sliding The Appliance Into The Installation Niche

    Sliding the appliance into the installation niche ã Connect the power cord to the appliance. Caution: Protect the mains lead from getting wedged under Be careful when sliding the appliance into the or behind the appliance. installation niche. Do not damage the water connection or power cord.

  • Page 15: Adjusting The Appliance In The Niche

    Adjusting the appliance in the A mark (a) is made on the base of the appliance which serves as a standard measurement for setting the niche height. When setting the height, raise the mark to 32 mm above the ground. This dimension is very important Note: for the subsequent adjustment of the cabinet frontage.

  • Page 16: Fastening The Appliance To The Niche Ceiling

    Fastening the appliance to the Attach the covering ribs (b) onto the fastening sheets (above), niche ceiling Note: It is essential to attach the appliance to the ceiling of the cavity. Screw on the front bars of the fastening sheets (above) with the upper cabinets.

  • Page 17: Checking That The Finger Protector Moves Easily

    Checking that the finger protector The following is a special installation step. Instructions are provided after moves easily section D. It is now essential to check that the finger guard moves – Water connection see “Connecting easily. At a later time any required corrections will be the appliance to the water supply”.

  • Page 18: Fastening The Plinth Strip

    Fastening the plinth strip Aligning the base cover Place base cover on the appliance (do not screw Note: on). Never cover the ventilation cracks in the base panelling. Measure the difference in depth A between the Risk of damage to the appliance. base panelling and the base strip of the adjacent Nominal dimensions to be observed: lower cabinets.

  • Page 19: Switching The Appliance On For The First Time

    Switching the appliance on for the Loading the appliance door first time When attaching the furniture doors it is recommended to load the storage sections in the door with weights in The appliance should now be switched on for the first order to ensure that the when adjusting crack time in order to ensure the accuracy of the following dimensions turn out to be as precise as possible.

  • Page 20: Fastening The Adjusting Rib To The Furniture Door (Refrigerator Compartment)

    Fastening the adjusting rib to the Fastening the fixing rib to the furniture door (refrigerator furniture door (refrigerator compartment) compartment) Measure distance A between the adjusting rail (b) Note: and the furniture parts above. Hang the furniture door on the threaded rod (a). Adjust the furniture door using the threaded rod (Torx screwdriver) Re-examine the dimensions of the crack...

  • Page 21: Fastening The Adjusting Rib To The Furniture Door (Freezer Compartment)

    Lengthen the markings to the parallels using an Tightly screw the adjusting rib. angle of contact. Apply the fixing ribs (b) and mark out the holes. Pre-drill the holes. Screw on the fixing ribs (b). Note: – One screw should be screwed in under the threaded rod in each case.

  • Page 22: Mounting The Furniture Door (Freezer Compartment)

    Transfer the position of the fastening screws on the 11. Mounting the furniture door outer edge of the appliance door to the furniture (freezer compartment) door and mark. Note: Now attach the door handles which should have been screwed from behind! Remove fixing bracket (a) from the appliance door.

  • Page 23: Mounting The Furniture Doors (Refrigerator Compartment)

    Hang furniture door with the adjusting rail onto the 10. Screw nuts onto the threaded pins of the adjusting threaded pins. rail and tighten! This way, the lateral adjustment of the door is fixed. Lower furniture door and push the fixing brackets down over the fastening screws on the appliance door.

  • Page 24: 13. Screw On The Lower Fixing Angle

    Hang furniture door with the adjusting rail onto the 10. Screw nuts onto the threaded pins of the adjusting threaded pins. rail and tighten! This way, the lateral adjustment of the door is fixed. Lower furniture door and push the fixing brackets down over the fastening screws on the appliance door.

  • Page 25: Fasten The Finger Protector

    Fasten the finger protector Attach the finger protector with the screws on the fixing brackets. When positioning the finger protector at the door, ensure that the fixing holes in the cover strip correspond with the boreholes in the fixing brackets. Mark now the bottom edge of the finger protector and shorten accordingly.

  • Page 26: Mounting The Air Filter

    Mounting the air filter rëáåÖ=íÜÉ=~áê=ÑáäíÉêI=~áê=ïÜáÅÜ=áë=ëìééäáÉÇ=~åÇ=Çê~ïå=Ñêçã=íÜÉ= ~ééäá~åÅÉ=áë=ÑÉÇ=ëÉé~ê~íÉäóI=áå=çêÇÉê=íç=~îçáÇ=êÉÇìÅÉÇ= çéÉê~íáåÖ=Å~é~ÅáíóK Attach the cover ribs (c) to the fastening plates (b) and the angles (a). Tensioning the hinge springs (refrigerator door) Attach the covering bar using the adjusting ribs of Turn the setting screw with a cross head screwdriver. the freezer compartment drawer.

  • Page 27: Special Installation Steps

    Special installation steps Preparing the water connection Connecting the appliance to the water supply (only for appliances which require a water connection) Note: Note: Turn off the main water tap in order to avoid damage Do not kink the connection pipe when bending it, from escaping water.

  • Page 28: Setting The Door Opening Angle (Refrigerator Compartment Door)

    Re-examine the point of connection at the shut-off valve and the appliance connection for leaks. Close the shut-off valve. Setting the door opening angle (refrigerator compartment door) According to the set up conditions, it may be necessary to limit the door opening angle. A door opening angle of 115°...
  • Page 29 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D-81739 München www.gaggenau.com 9000 741 784 Subject to alterations. en (9306)
