Install the Motherboard

To perform the installation of your new SY-7VBA133U Motherboard, follow the steps below:

CPU Installation

Step 1.
CPU Mount Procedure:
that you have purchased separately, follow these instructions.
1

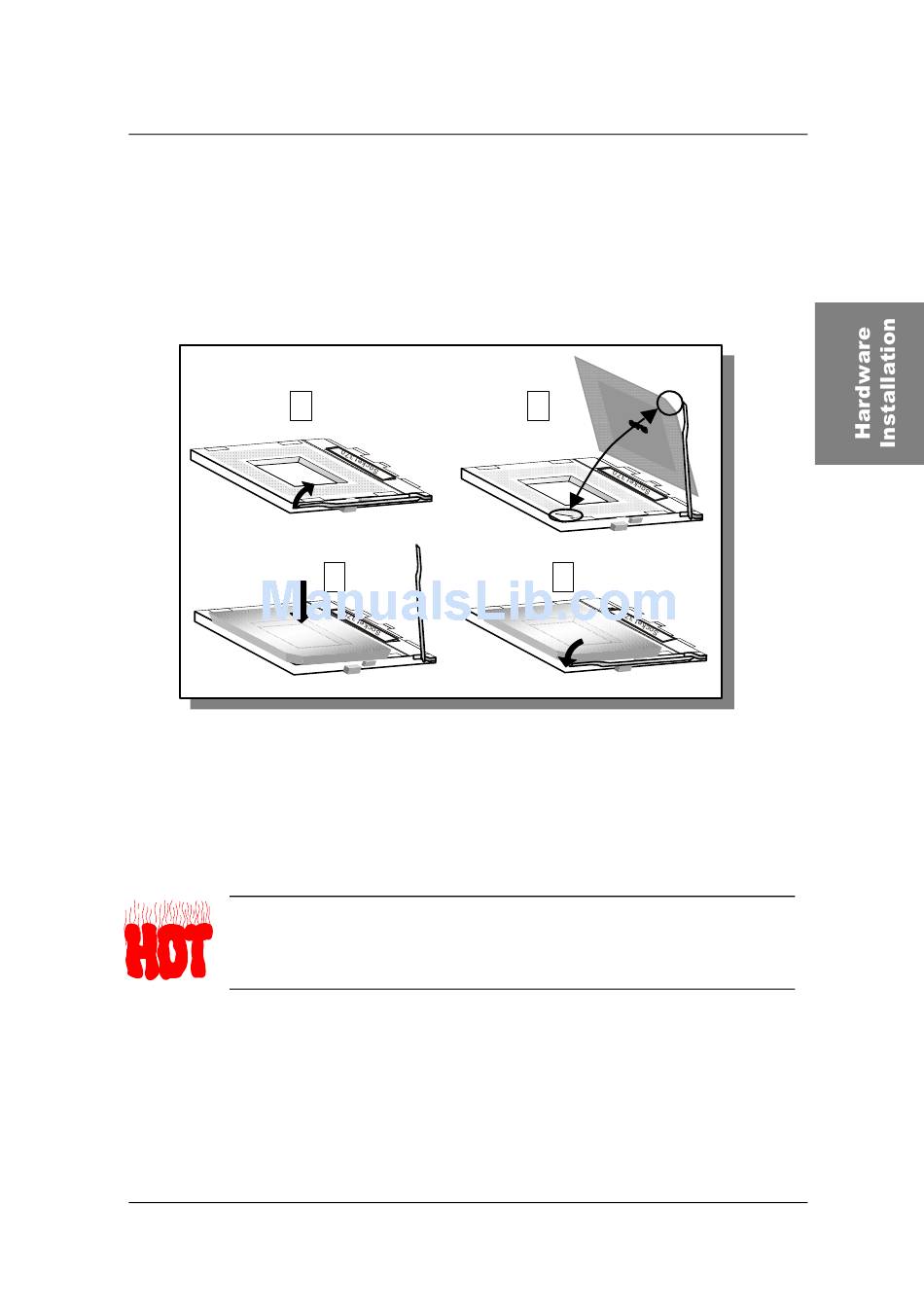

1. Lift the socket handle up to a vertical position.
2. Align the blunt edge of the CPU with the matching pinhole edge on the socket.
3. Seat the processor in the socket completely and without forcing.
4. Then close the socket handle to secure the CPU in place.
Remember to connect the CPU Cooling Fan to the appropriate power
connector on the Motherboard. The fan is a key component that stabilizes the
system. It prevents the equipment from overheating and prolongs the life of
your CPU.
