Connections to the Motherboard

Step 2.
This section tells how to connect internal peripherals and the power supply to the Motherboard.
The internal peripherals consist of IDE devices (HDD, CD-ROM), Floppy Disk Drive,
Chassis Fan, Front Panel Devices (Internal Speaker, Reset Button and IDE LED Switch.),
Wake-On-LAN card, VGA card, Sound Card, and other devices.
For more details on connecting internal and external peripherals to your new SY-7VBA133U
Motherboard, please refer to SY-7VBA133U Motherboard User's Manual and Technical
Reference online manual on the CD-ROM.

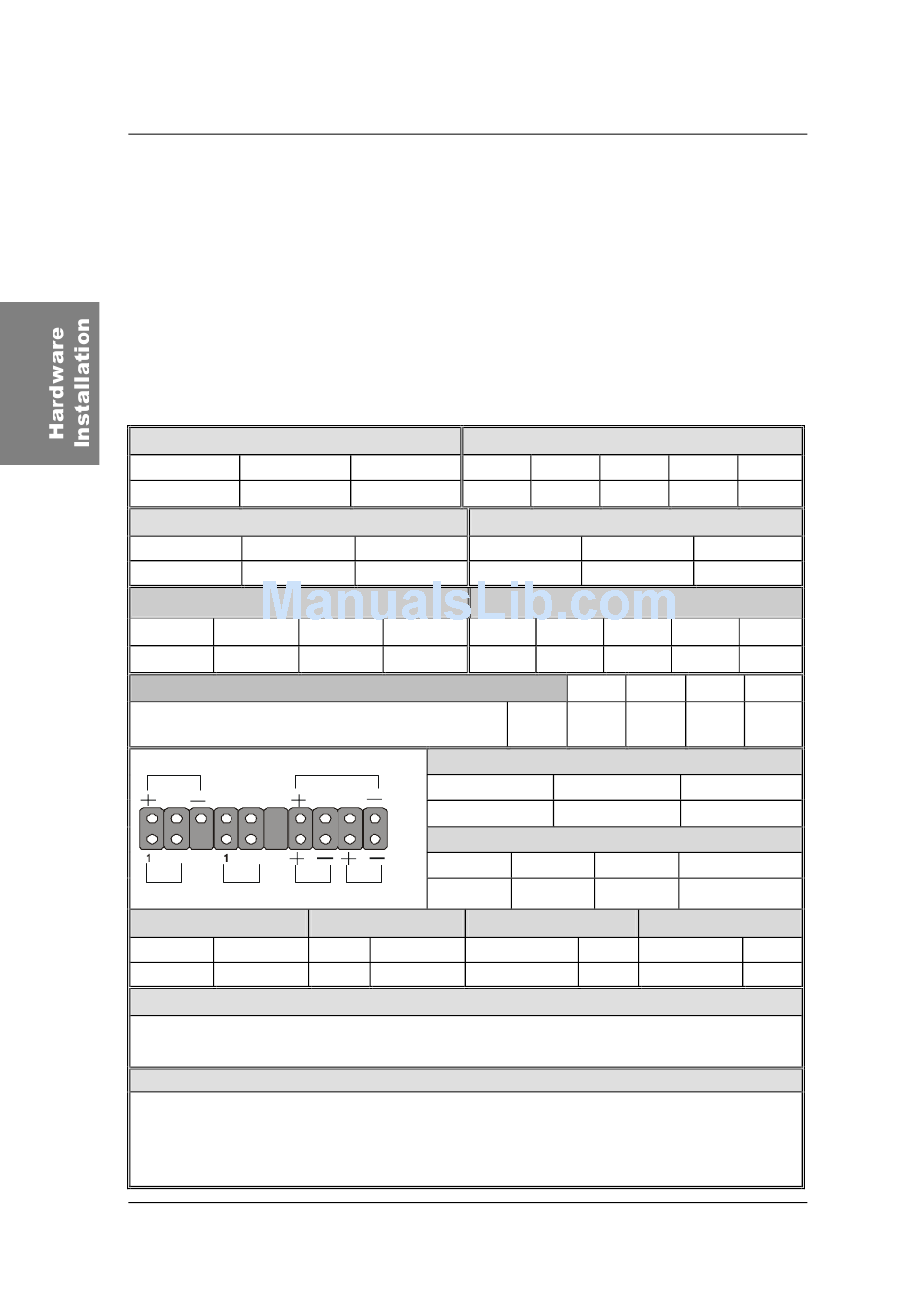

Connectors and Plug-ins
Wake-On-LAN Header: JP10
Pin1 Pin2
5VSB GND
CPU Cooling Fan: CPUFAN
Pin1 Pin2
GND 12V
USB3
Pin1 Pin2
VCC Data(-)
CD Line-in: CDIN1, CDIN2
Connect the CD Line-in cord from the CD-ROM device to
the matching header CDIN1
Speaker
Power LED
Reset PWRBT ACPI LED
HDD LED
Pin1 Pin2
LED Anode LED Cathode VCC
Connect your power switch to this header (momentary switch type).
To turn off the system, press this switch and hold down for longer than 4 seconds.
Attach the ATX Power cable to this connector. (This motherboard requires an ATX power supply, an AT
power supply can NOT be used.)
When using the Power-On by PS/2 Keyboard function, please make sure the ATX power supply is able to
provide at least 720mA on the 5V Standby lead (5VSB) in order to meet the standard ATX specifications.
Standard IrDA (Infrared Device Header): SIRCON
Pin3 Pin1
MP-Wakeup VCC
Pin3
SENSOR
Pin3 Pin4 Pin6
Data(+) GND VCC
Pin1
Anode
Pin1
5V
HDD LED
ACPI LED
Pin1 Pin2
Control Pin Power On/Off
ATX Power On/Off: PWRBT
ATX Power Supply: ATX PW
8
Pin2 Pin3
NC IRRX
Chassis Fan: CHAFAN
Pin1 Pin2
GND 12V
USB4
Pin7 Pin8
Data(-) Data(+)
Pin 1 Pin 2
CDIN L G
Power LED
Pin2
NC
Speaker
Pin2 Pin3
NC NC
PWRBT
Pin1 Pin2 Pin1
GND Power Good
Pin4 Pin5
GND IRTX
Pin3
SENSOR
Pin9 Pin10
GND GND
Pin 3 Pin 4
G R
Pin3
Cathode
Pin4
Speaker out
RESET
Pin2
GND
