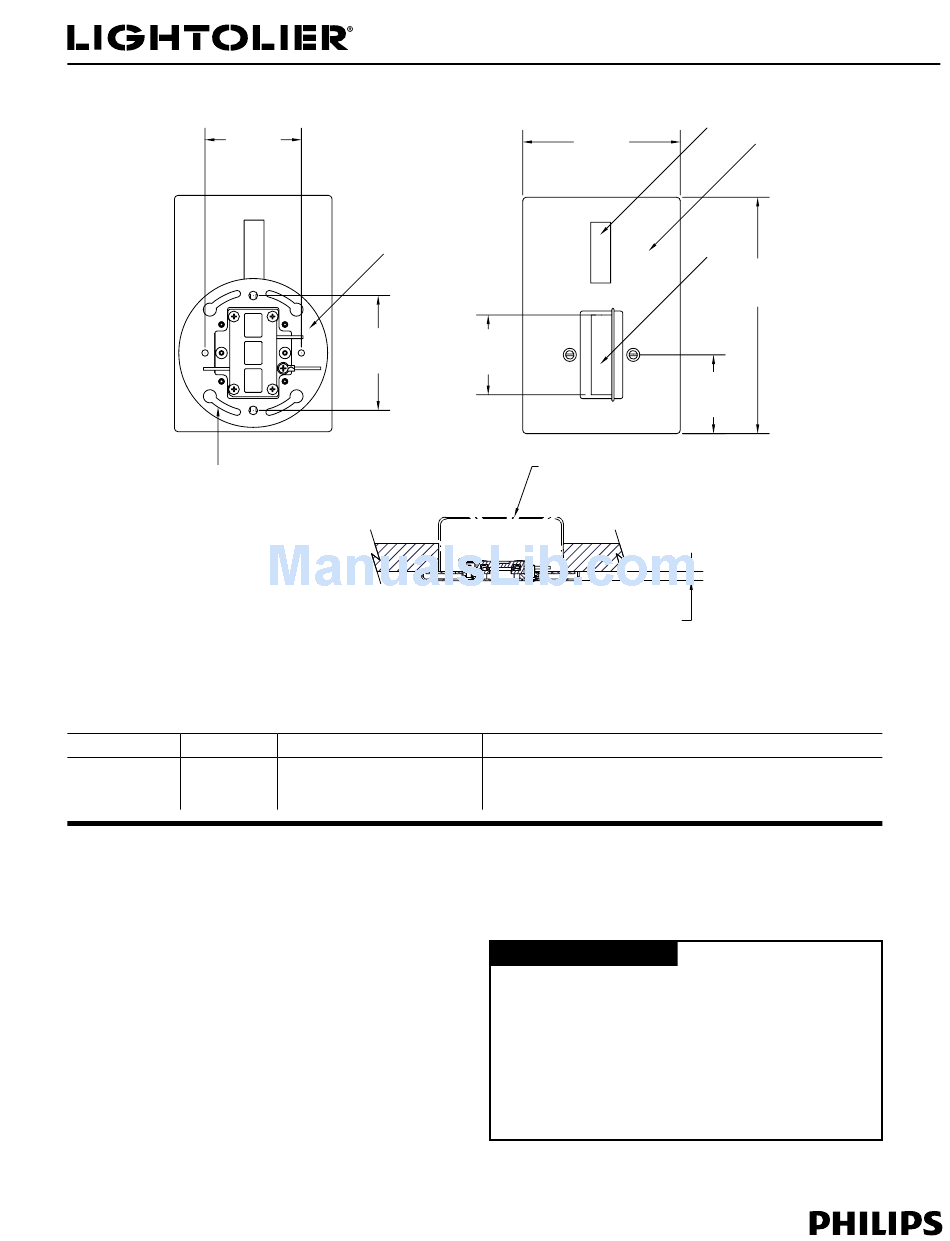

Lightolier Lytespan Track Lighting System 6171 Manual

Page 1 of 1
3 ½" Dia. J-Box
Mounting Slots

Ordering Information

Catalog No.

Finish

6171WH Matte White
6171BK
Matte Black
6171AL Matte Aluminum

Features

1. Basic Lytespan Track Strip: Die-cast with high-temperature impact-
resistant thermoplastic insulator, supporting electrical contacts. Accepts
Lytespan luminaires for individual applications.
2. Junction Box Canopy: Aluminum low-profile canopy, attached with two
painted slotted cap screws (provided).
3. Crossbar: 0.074 steel, permanently fixed to track. Provides secure mounting
of monopoint to electrical junction box.
4. Supply Leads: 16ga. White and Black, Green; insulated stranded wire.
5. Locking Slot: Accepts mechanical locking tab from Alcyon HID luminaire.

Electrical

Capacity is 120volts, 60Hz, 660W max. All Lytespan Track luminaires are polar-
ized and continuously grounded throughout. Electrical conductors are concealed
in an insulating liner. Intended for wiring to branch circuit building wire with
ground. All wiring must be in accordance with National and Local Codes.
Use 90°C minimum supply wire to monopoint.
Lightolier is a Philips group brand
2 ¾"
70mm
3
3 ¼"
83mm
ceiling
or wall
Junction Box Mounting
4" & 3 ½" Octagonal, 4" & 3 ½" Round
®
Lytespan Track Lighting System
4 ½"
114mm
2 ¼"
58mm
Junction Box
(by others)
ceiling
or wall
Compatibility
Alcyon HID: 23S20 Series, 23C20 Series, 23F20 Series. Also compatible with
Alcyon Low and Line Voltage. Lytespan luminaires with single track mounting
point. Not campatible for luminaires with adapter type 8171 and 6296.
Finish
All Painted finishes are baked enamel.

Labels

UL listed, cULus

Job Information

Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0708
Alcyon HID Monopoint for 20W
5
2
1
6 ¾"
171mm
2 ¼"
57mm
¼"
7mm
Type:
6171
