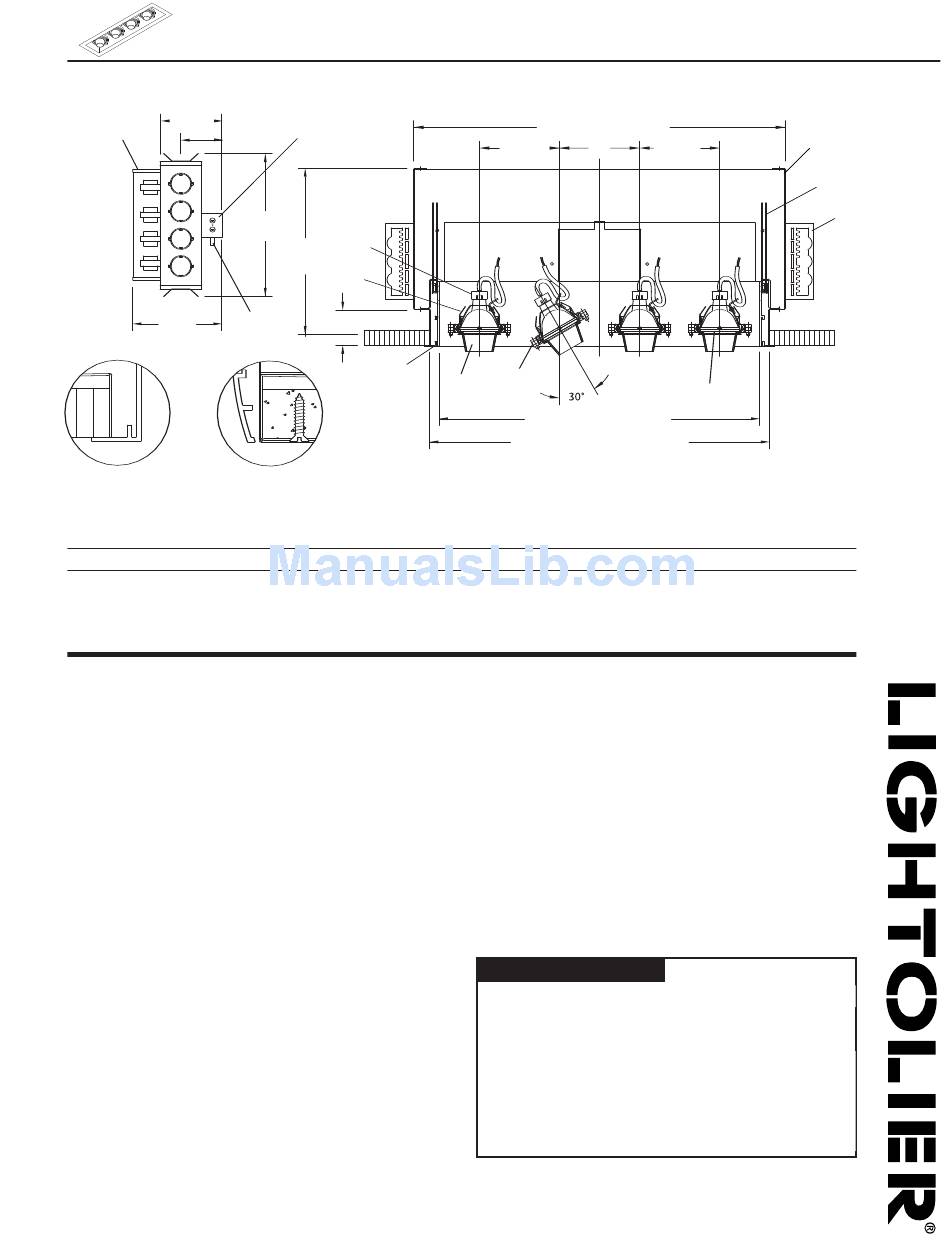

Lightolier Calculite ProSpec Linear Downlight PS4M1650 Specifications

Page 1 of 2
10 1/4"
12
7 1/4"
14 1/4"
Top View
TOP VIEW
Flanged
Ceiling Cutout: 17" L x 4 9/16" W
Ordering Information: MR 16 Series S
Cat. No. Lamp
PS4M165EBL (4) 50W MR 16
PS4M165EWL (4) 50W MR 16
PS4M165EBTL (4) 50W MR 16
PS4M165EWTL (4) 50W MR 16
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Lamp Shields: Die-formed aluminum. Shields spill light from lamp.
Removable for relamping
3. Adjustable Ring: Die-cast aluminum. 30° vertical adjustment.
4. Tortiontite Spring: For easy installation of aperture frame.
5. Housing: Die-formed NYC 20 ga. steel. Finish: Black.
6. Mounting Brackets: Adjustable vertically from outside of housing.
7. Thermal Protector: Meets NEC, CEC, UL & CSA requirements.
8. Lampholder: Steatite for GX/GY 5.3 Bi-Pin MR-16 lamps. 250°C Teflon
leads.
9. Heat Shield: Die-formed aluminum.
10. Junction Box: 14 ga. steel, 4" x 3-1/2" x 3" box. Allows inspection from
below.
11. Lamp Guard: Heat resistant Micro prismatic clear glass. Lamp manufac-
turer's requirement
12. Transformer Housing: Die-formed steel.
Electrical
Electronic Transformers: Offer reliable operation and are accessible from
below for servicing. 12V. Secondary 50 VA. each lamp.
Dimming Controls: Use only dimmers specifically designed for use with
electronic transformers. Low Voltage fixtures may produce audible sound
when used with dimmers, which may be objectionable in acoustically
critical areas.
UL/cUL listed for through branch circuit wiring with maximum of (4) no. 12
AWG, 90°.
Calculite ® ProSpec
10
21 5/16"
8
8 3/4"
Depth
9
7
1 3/4"
1
Trimless
PS4M165EBL = (Flanged) Black/White
PS4M165EWL = (Flanged) White
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage
®
® Linear Downlight
18 9/16"L x 6 1/16"W
4" OC 4" OC
2
3
16"L x 3 1/2"W Opening
17"L x 4 9/16"W Ceiling Cutout
Ceiling Trim
Overlap
Overlap
Trimless
Trimless
Finish
All painted finishes are powder coated baked enamel.
Labels
UL/cUL (Suitable for Damp Location), I.B.E.W.
Teflon ® is a registered trademark of E.I. DuPont.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • C1105
PS4M1650
4 Light MR 16 Series S
5
4" OC
11
PS4M165EBTL = (Trimless) Black
PS4M165EWTL = (Trimless) White
Aperture Finish
Black with White Flange
White with White Flange
Black
White
Type:
www.lightolier.com
4
6
