Lightolier Calculite ProSpec Linear Downlight PS2M1650 Specifications

Page 1 of 2

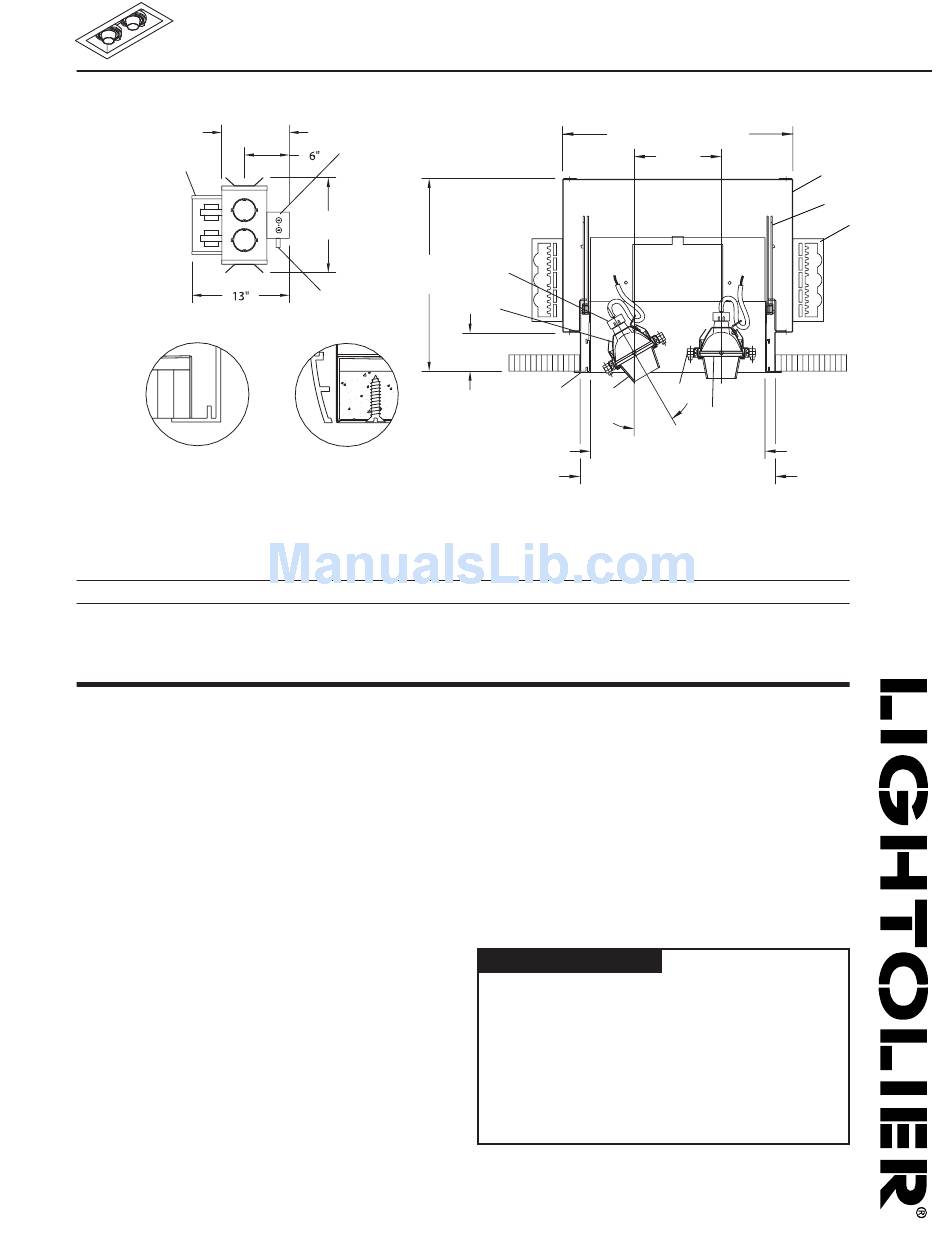

Top View
9 1/16"
12
FLANGED
Ceiling Cutout: 9" L x 4 9/16" W
Ordering Information: MR 16 Series S
Cat. No. Lamp
PS2M165EBL (2) 50W MR 16
PS2M165EWL (2) 50W MR 16
PS2M165EBTL (2) 50W MR 16
PS2M165EWTL (2) 50W MR 16
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Lamp Shields: Die-formed aluminum. Shields spill light from lamp.
Removable for relamping
3. Adjustable Ring: Die-cast aluminum. 30° vertical adjustment.
4. Tortiontite Spring: For easy installation of aperture frame.
5. Housing: Die formed NYC 20 ga. steel. Finish: Black.
6. Mounting Brackets: Adjustable vertically from outside of housing.
7. Thermal Protector: Meets NEC, CEC, UL & CSA requirements.
8. Lampholder: Steatite for GX/GY 5.3 Bi-Pin MR-16 lamps. 250° C Teflon
leads.
9. Heat Shield: Die-formed aluminum.
10. Junction Box: 14 ga. steel, 4" x 3 1/2" x 3" box. Allows inspection from
below.
11. Lamp Guard: Heat resistant Micro prismatic clear glass.
Lamp manufacture's requirement
12. Transformer Housing: Die formed steel.
Electrical
Electronic Transformers: Offer reliable operation and are accessible from
below for servicing. 12V. Secondary 50 VA. each lamp.
Dimming Controls: Use only dimmers specifically designed for use with
electronic transformers. Low Voltage fixtures may produce audible sound
when used with dimmers, which may be objectionable in acoustically
critical areas.
UL/cUL listed for through branch circuit wiring with maximum of
(4) no. 12 AWG, 90°C.
Calculite ® ProSpec
10
13 3/16"
8 3/4"
Depth
7
1 3/4"
TRIMLESS
PS2M165EBL = (Flanged) Black/White
PS2M165EWL = (Flanged) White
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 2 1/2" dia. series, filters, lenses, screens and louvers, (2)
accessories maximum, including lamp cover glass. Lamp guard glass may be
replaced with solid glass accessory.
®
Labels
UL/cUL (Suitable for Damp Location), I.B.E.W.
® Linear Downlight
10 7/16"L X 6 1/16"W
8
9
2
1
1330°
8"L X 3 1/2"W Opening
9" X 4 9/16" Ceiling Cutout
Ceiling Trim Aperture Finish
Overlap Black with White Flange
Overlap White with White Flange
Trimless Black
Trimless White
