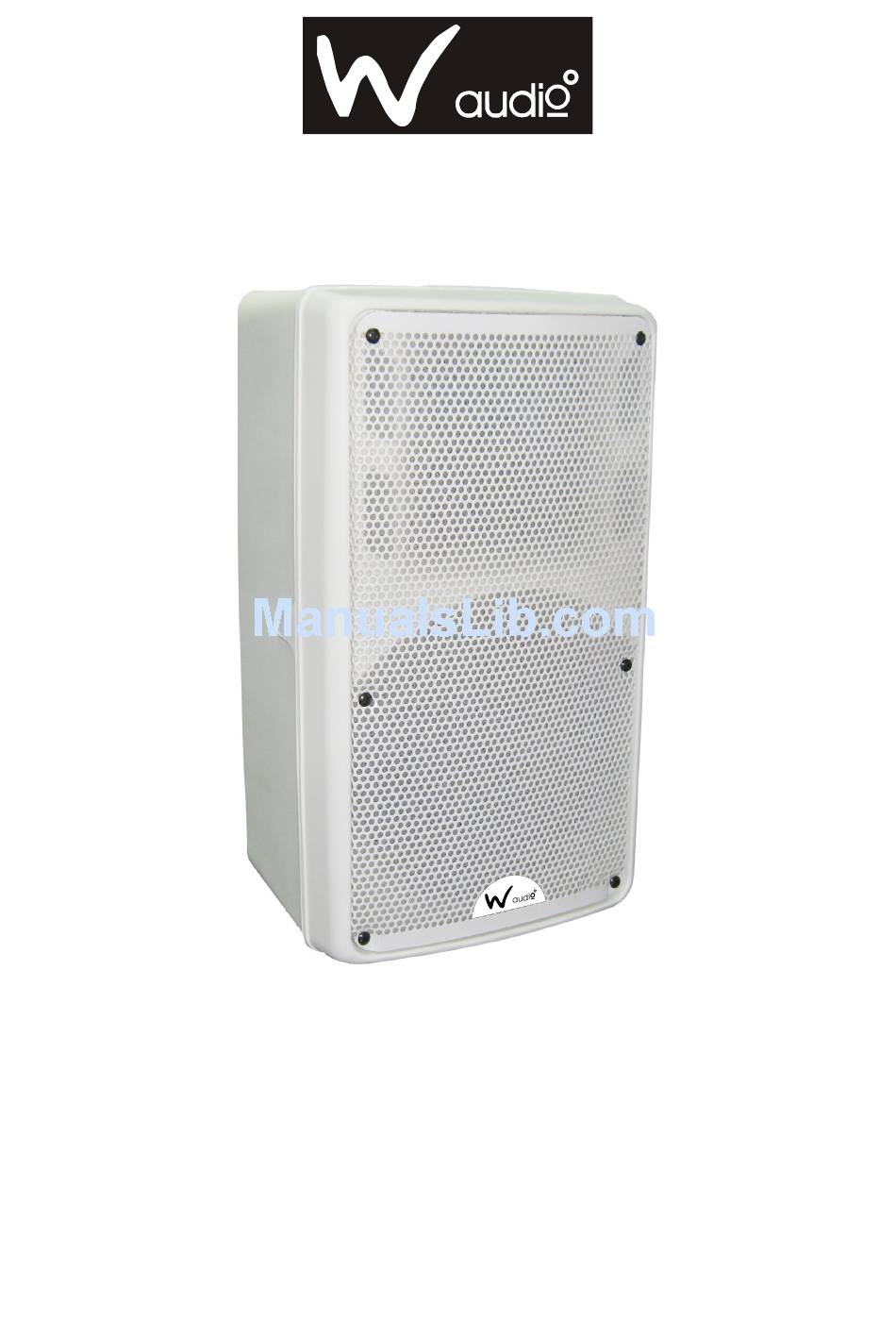

USER MANUAL
PSR-8i
Passive Professional Two-Way
Sound Reinforcement Loudspeaker
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it
cover every possible situation which may arise during installation, operation or maintenance.
The information provided in this manual was deemed accurate at the publication date.
www.prolight.co.uk
Advertisement
Table of Contents
Related Manuals for W Audio PSR-8i
Summary of Contents for W Audio PSR-8i
-
Page 1: User Manual
USER MANUAL PSR-8i Passive Professional Two-Way Sound Reinforcement Loudspeaker This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during installation, operation or maintenance. -
Page 2: Important Safety Instructions
Passive Speaker System Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any ventilation openings. Install in accordance with the TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS. -
Page 3: Table Of Contents
Passive Speaker System Table of Contents Important Safety Instructions ................2 Table of Contents ....................3 I n t r o d u c t i o n ................4 - 5 Connection Diagrams ..................6-7 Connector Wiring....................8 Block Diagram....................8... -
Page 4: Introduction
Passive Speaker System INTRODUCTION Thank you for choosing The Transducers Passive sound reinforcement speakers. The PSR-8i passive speaker The PSR-8i is an passive features a 8-inch high-power two-way loudspeaker capable of low-frequency woofer and a extremely high sound pressure 1.5-inch aluminum diaphragm... -
Page 5: Introduction
Passive Speaker System INTRODUCTION The Cabinet The PSR-8i cabinet was designed to be the strongest moulded composite cabinet on the planet. This material is rigid enough to prevent unwanted vibrations in the cabinet. It has built-in flying points for hanging, and a socket in the bottom for mounting on a tripod stand. -
Page 6: Connection Diagrams
Passive Speaker System HOOKUP DIAGRAMS NORMAL OPERATION PSR-8 Frequency Range 60Hz~20kHz Power Handling 120W Impedance 8 ohm SPL(1W/1m) 94dB IN/OUT PIN 1+ FULL RANGE+ PIN 1- FULL RANGE - SER.NO: www.prolight.co.uk CAUTION 30Hz 50Hz 100Hz 150Hz 0.775V 32dB 26dB RISK OF ELECTRIC SHOCK LOW CUT LOW PASS GAIN... - Page 7 Passive Speaker System HOOKUP DIAGRAMS PARALLEL MODE PSR-8 PSR-8 Frequency Range Frequency Range 60Hz~20kHz 60Hz~20kHz Power Handling Power Handling 120W 120W Impedance 8 ohm Impedance 8 ohm SPL(1W/1m) 94dB SPL(1W/1m) 94dB IN/OUT IN/OUT PIN 1+ FULL RANGE+ PIN 1+ FULL RANGE+ PIN 1- FULL RANGE - PIN 1-...
-
Page 8: Connector Wiring
Passive Speaker System CONNECTOR WIRING FREQUENCY RESPONSE PSR-8 BLOCK DIAGRAM N.C. N.C. DIMENSION DRAWINGS 170mm 255 mm page 8 Operation Manual... -
Page 9: S P E C I F I C A T I O N S
Passive Speaker System PSR-8i SPECIFICATIONS System Specifications Frequency Response(-3dB) 75Hz-20kHz Frequency Range(-10dB) 60Hz-20kHz Impedance 8 ohms Sensitivity 94dB Rated System Power(Continuous) 120W Rated System Power(Peak) 480W Max SPL Long-term@1m 114dB Max SPL Peak@1m 120dB Horizontal Coverage Vertical Coverage 2kHz Crossover...
