USER MANUAL
PSR-15A

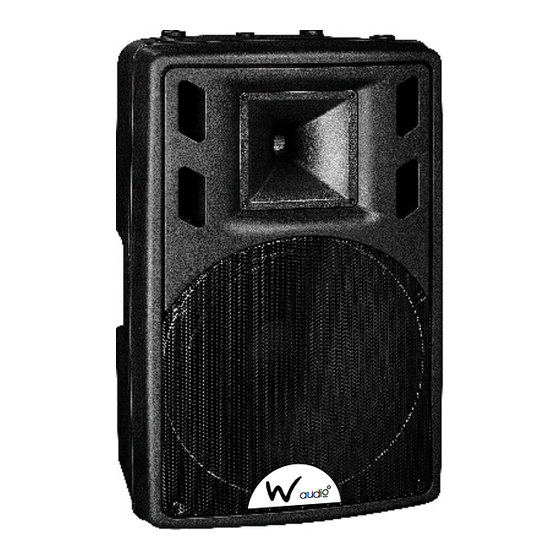

Active Professional Two-Way
Sound Reinforcement Loudspeaker
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible
situation which may arise during installation, operation or maintenance.
The information provided in this manual was deemed accurate at the publication date.
Www.prolight.co.uk
Advertisement
Related Manuals for W Audio PSR-15A
Summary of Contents for W Audio PSR-15A
-
Page 1: User Manual
USER MANUAL PSR-15A Active Professional Two-Way Sound Reinforcement Loudspeaker This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during installation, operation or maintenance. -
Page 2: Important Safety Instructions
Powered Speaker System Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer s instr TO PREVENT ELECTRIC SHOCK DO NOT REM- uctions. -
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ................2 Table of Contents ..................3 I n t r o d u c t i o n ............... . 4 - 5 Hookup Diagrams ..................6-7 Rear... -
Page 4: Introduction
PSR-15A,Our exclusive design useslow- negative feedback, yet allows the amplifie- sound reinforcement speakers. The PSR-15A is an active two-wayloud rs to maintain low distortion and stability speaker capable of extremely high sound and to quickly recover when driven into cli- pressure levels, and designed to give you pping. - Page 5 Powered Speaker System The Cabinet The Active Advantage The PSR-15A cabinet was designed to There are a number of advantages to using be the strongest moulded composite cabinet an active speaker system over a passive on the planet. This material is rigid enough...
-
Page 6: Hookup Diagrams
Powered Speaker System HOOKUP DIAGRAMS PSR-15A STEREO OPERATION WITH A MIXER Left Line level Right Line level output output MIXER page 6 Operation Manual... -
Page 7: Hookup Diagrams
Powered Speaker System HOOKUP DIAGRAMS PSR-15A USING A MICROPHONE AND THE THRU CONNECTION For microphone connections, you can daisy-chain up to two PSR-15A using the MIX OUTPUT jacks as shown. Take great care to point any microphon- es away from the... -
Page 8: Rear Panel Description
Powered Speaker System REAR PANEL DESCRIPTION Treble clip Bass Control Bass clip Treble Control Active Indicator Line Volume Control Microphone Input 1 Master Volume Control Line Input Jack Microphone Volume 1 Microphone Input 2 Mix Input Jack Microphone Volume 2 Power Switch IEC Socket Voltage Selector... - Page 9 Powered Speaker System PSR-15A SPECIFICATIONS System Specifications Frequency Response(-3dB) 45Hz-18kHz Frequency Range(-10dB) 40Hz-20kHz Max SPL Long-term@1m 125dB Max SPL Peak@1m 128dB Horizontal Coverage Vertical Coverage Linkwitz-Riley, 24dB/octave@2.6kHz Crossover Audio Input Type Balanced Differential Input Impedance 20kohms Sensitivity Line 0dBu -32dBu...
- Page 10 Powered Speaker System PSR-15A SPECIFICATIONS Physical Properties Height 29.1in/740mm 18.7 in/475mm Width Depth 15.7 in/400mm Weight 66.1 lb/30kg Disclaimer Since we are always striving to make our products better by incorporating new and improved materials, components, and manufacturing methods, we reserve the right to change these specifications at any time without notice.
-
Page 11: N O T E
Powered Speaker System NOTES page 11 Operation Manual...
