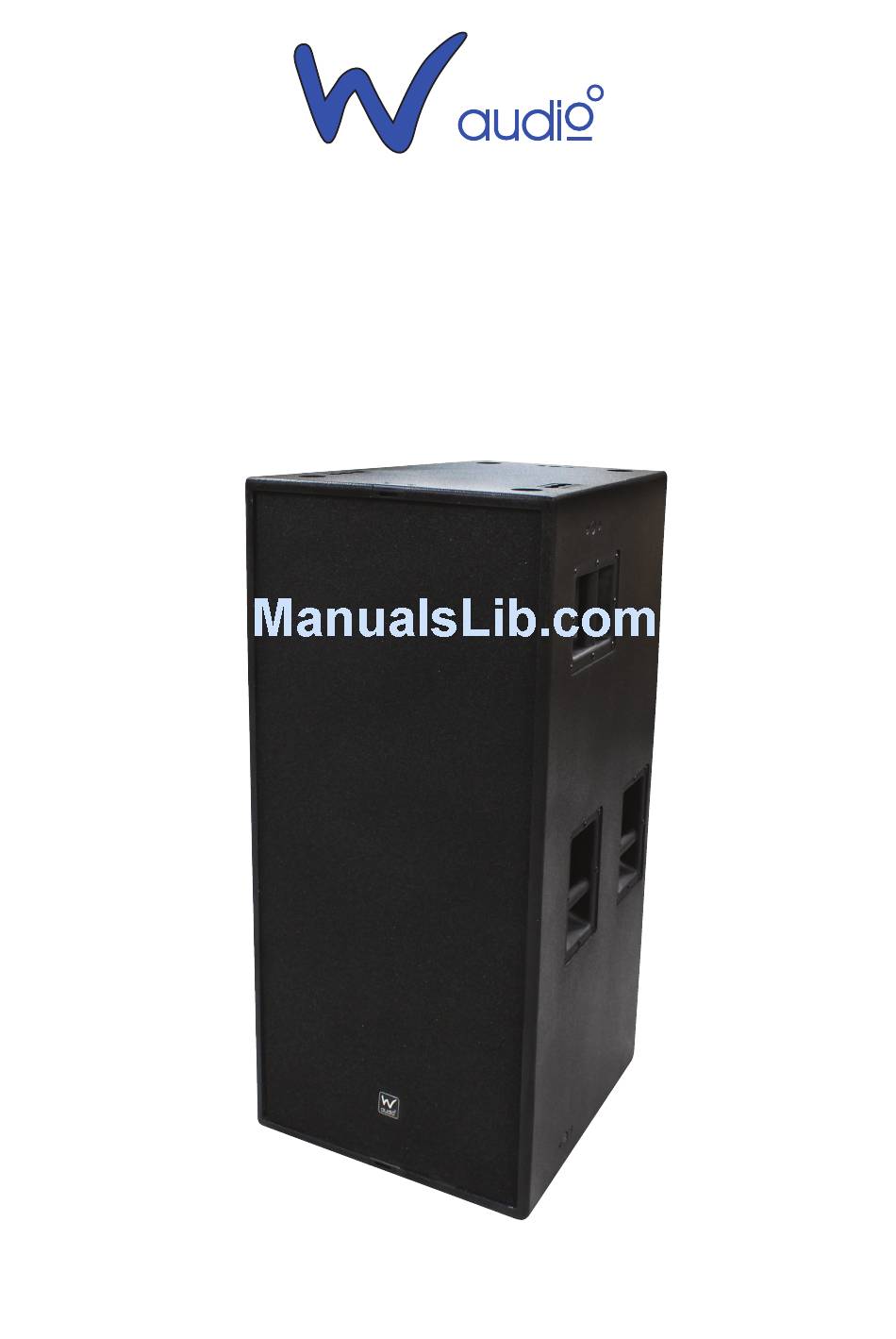

- Page 1 Zenith MH212 FOH Speaker User Manual Order code: SPEA80...
-
Page 2: Safety Advice
• Only use the equipment indoors. and falls. • Do not expose to flammable sources, liquids or gases. • Repairs, servicing and power connection must only be • If the equipment is dropped or damaged, have a qualified carried out by a qualified technician. THIS UNIT CONTAINS engineer inspect the equipment before operating again. NO USER SERVICEABLE PARTS. • If the equipment has been exposed to drastic temperature • WARRANTY: One year from date of purchase. fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation might damage the equipment. Leave the equipment switched off until it has reached room temperature. • If the product fails to function correctly, discontinue use immediately. Pack securely (preferably in the original packing material), and return to your dealer for service. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. In case of malfunction this system should be returned for service or inspection. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Zenith MH212 FOH Speaker User Manual... - Page 3 DANGER TO LIFE! A FALLING SPEAKER SYSTEM CAN CAUSE DEADLY ACCIDENTS, ALL SAFETY INSTRUCTIONS GIVEN IN THIS MANUAL MUST BE OBSERVED. WARNING! LOUD NOISE HAZARD EAR PROTECTION MUST BE WORN Please note that speaker systems can move due to bass beats and vibrations. Furthermore, unintended pushing on the speakers present a further risk. The speaker system must always be secured to prevent movement or the surrounding area has to be blocked. www.prolight.co.uk Zenith MH212 FOH Speaker User Manual...
- Page 4 • Before installing the speaker/sub, make sure that the installation area can hold a minimum point load of 5 times the systems weight (e.g. weight 20kg - point load 100kg). • The speaker must never be installed higher than 100cm with out a secondary attachment. • For over head installations (mounting height >100cm), always fix the speaker with an appropriate safety cable. • The installation area of the speaker/sub has to be built and constructed in a way that it can hold 10 times the weight of the speaker/sub for 1 hour without any deformation. DANGER TO LIFE - DUE TO FALLING SPEAKERS SYSTEMS! A SUBWOOFER MUST NEVER BE SUSPENDED. MID/HIGH SPEAKERS MUST ONLY BE SUSPENDED BY EXPERIENCED AND TRAINED PERSONS. www.prolight.co.uk Zenith MH212 FOH Speaker User Manual...
- Page 5 3200W Max. calculated SPL 138dB Sensitivity (1W/1m) 103dB THRU 2+ THRU Frequency range (-10dB) 50Hz~18kHz Frequency range (-3dB) 60Hz~16kHz LF transducer 2 x 12" HF transducer 1.4” THRU Nominal impedance 4Ω THRU Connections 2 x NL4 SpeakON Block diagram Dimensions (H x W x D) 1021 x 490 x 535mm Weight 57kg Order code SPEA80 490mm 535mm 490mm www.prolight.co.uk Zenith MH212 FOH Speaker User Manual...
-
Page 6: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Zenith MH212 FOH Speaker User Manual... - Page 7 Zenith MH212 FOH Speaker User Manual...
-
Page 8: Optional Accessories
Optional accessories Please contact your local retailer to purchase these accessories. Optional Wheel Board Order code: SPEA80W To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk www.prolight.co.uk Zenith MH212 FOH Speaker User Manual...
