Page 1

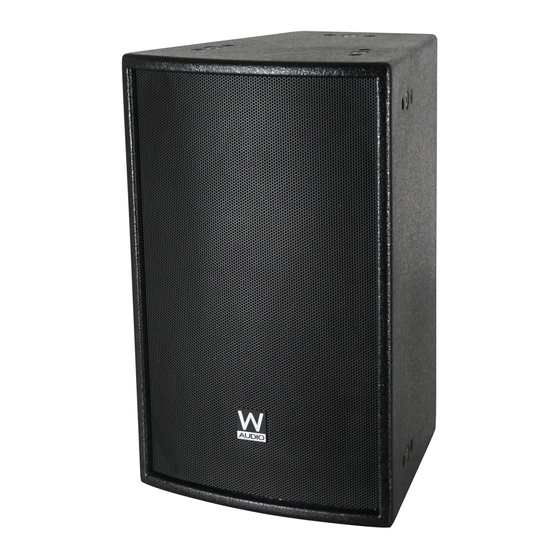

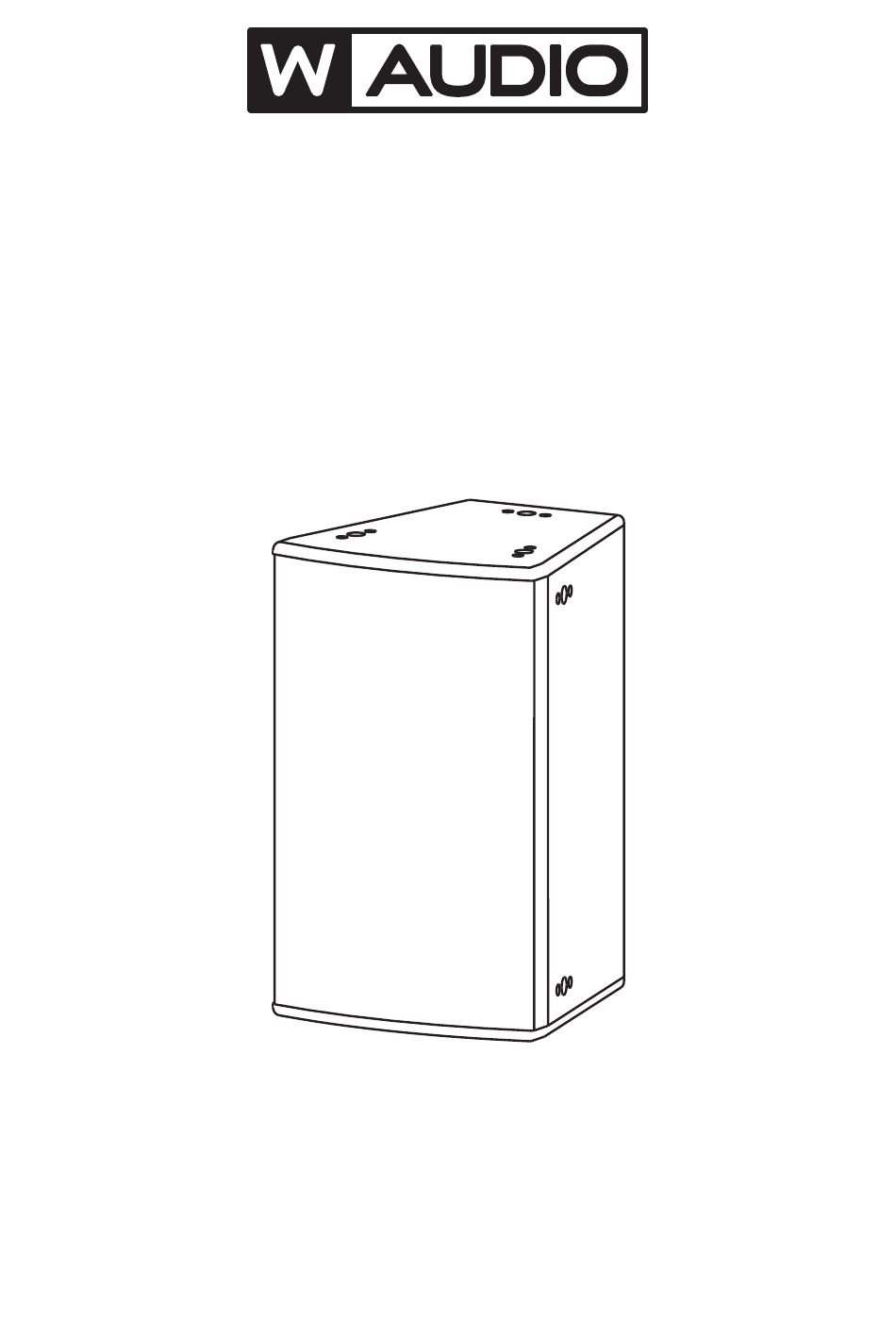

SR 10 Passive Speaker User Manual Order codes: SPEA71 - White housing SPEA72 - Black housing...
Page 2
In case of malfunction this system should be returned for service or inspection. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk SR 10 Passive Speaker User Manual...
Page 3
Safe installation Make sure that the area below the installation place is blocked when rigging, derigging or servicing the system. Please note: W Audio cannot be made liable for damages caused by incorrect installations and excessive noise levels. Unpacking and transportation: Unpack the unit and examine it for transport damage.
Page 4
THE MID/HIGH SPEAKER MUST ONLY BE SUSPENDED BY EXPERIENCED AND TRAINED PERSONS. These speakers can be mounted on a speaker stand using the supplied adaptors. The carrying capacity of the extension pole and the speaker stand must never be exceeded. www.prolight.co.uk SR 10 Passive Speaker User Manual...
Page 5
BRAC04 bracket Specifications Dimensions 490 x 310 x 320mm In the box: Weight 15.7kg 1 x speaker Order code SPEA71 - White housing, SPEA72 - Black housing www.prolight.co.uk SR 10 Passive Speaker User Manual...
Page 6
/THRU Power (RMS): 250W Impedance: 8Ω SPL (1W/1m): 95dB IN/OUT: Pin 1 + Full Range + INPUT Pin 1 - Full Range - /THRU Pin 2 + Thru Pin 2 - Thru www.prolight.co.uk www.prolight.co.uk SR 10 Passive Speaker User Manual...
Page 7
Technical specifications Block diagram Frequency response www.prolight.co.uk SR 10 Passive Speaker User Manual...
Page 8
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk SR 10 Passive Speaker User Manual...
