USER MANUAL

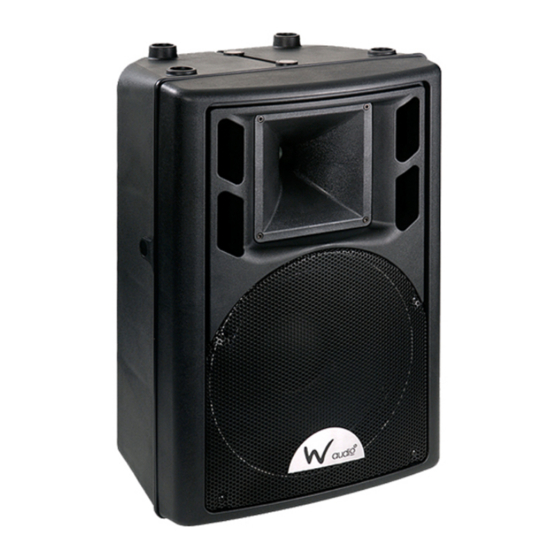

PSR-12A
Active Professional Two-Way
Sound Reinforcement Loudspeaker
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible
situation which may arise during installation, operation or maintenance.
The information provided in this manual was deemed accurate at the publication date.
Www.prolight.co.uk
Advertisement
Related Manuals for W Audio PSR-12A
Summary of Contents for W Audio PSR-12A

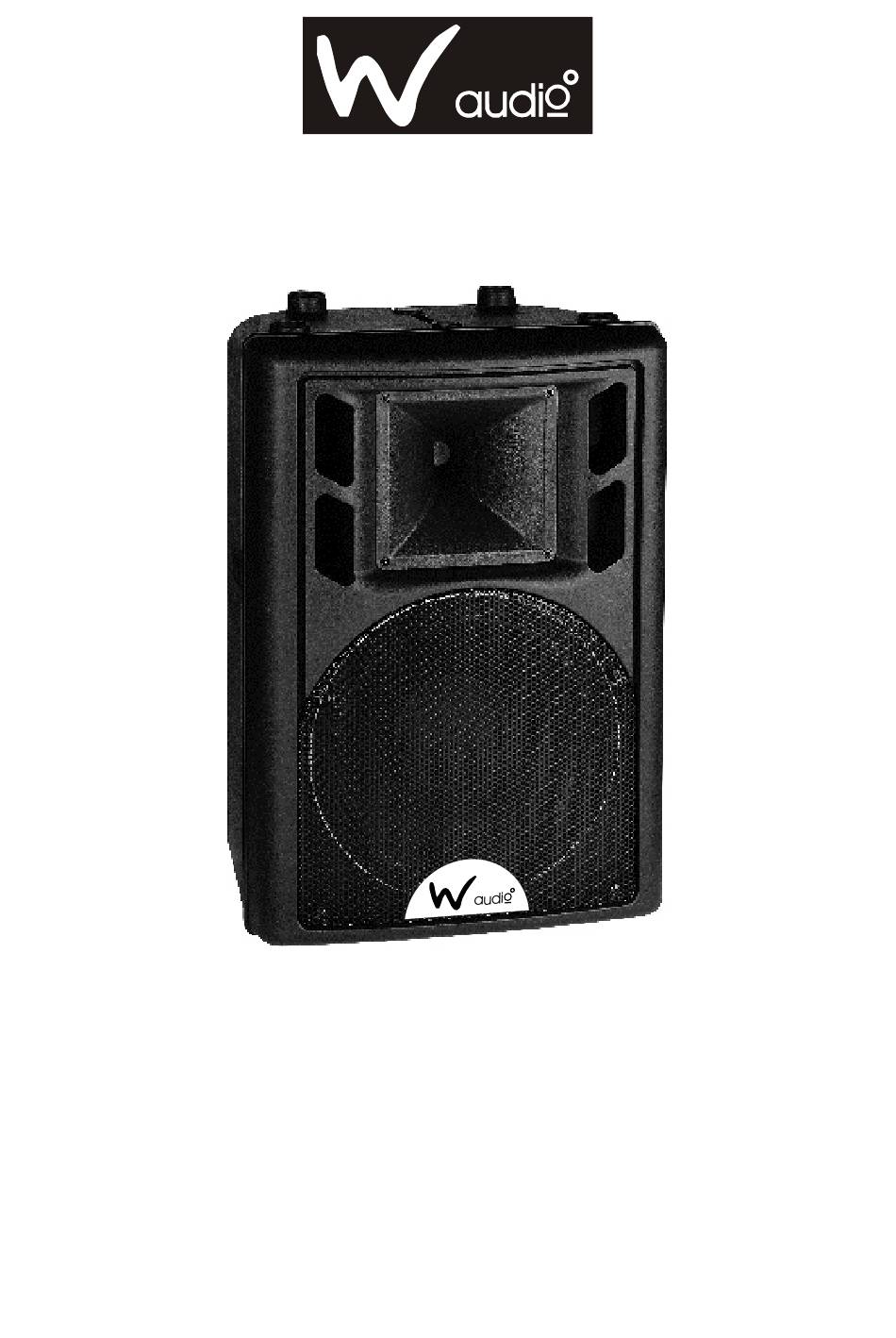

- Page 1 USER MANUAL PSR-12A Active Professional Two-Way Sound Reinforcement Loudspeaker This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during installation, operation or maintenance.
-
Page 2: Important Safety Instructions
Powered Speaker System Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer s instr TO PREVENT ELECTRIC SHOCK DO NOT REM- uctions. -
Page 3: Table Of Contents
Powered Speaker System Table of Contents Important Safety Instructions ................2 Table of Contents ..................3 I n t r o d u c t i o n ............... . 4 - 5 Hookup Diagrams ..................6-7 Rear... -
Page 4: Introduction
PSR-12A,Our exclusive design uses low negative feedback, yet allows the amplifie- sound reinforcement speakers. The PSR-12A is an active two-way rs to maintain low distortion and stability loudspeaker capable of extremely high sound and to quickly recover when driven into cli- pressure levels, and designed to give you pping. - Page 5 Powered Speaker System The Cabinet The Active Advantage The PSR-12A cabinet was designed to be There are a number of advantages to using an active speaker system over a passive the strongest moulded composite cabinet on the planet. This material is rigid enough...
-
Page 6: Hookup Diagrams
Powered Speaker System HOOKUP DIAGRAMS PSR-12A STEREO OPERATION WITH A MIXER Power:350W Left Line level Right Line level output output MIXER page 6 Operation Manual... - Page 7 Powered Speaker System HOOKUP DIAGRAMS PSR-12A USING A MICROPHONE AND THE THRU CONNECTION For microphone connections, you can daisy-chain up to two PSR-12A using the MIX OUTPUT jacks as shown. Take great care to point any microphon- es away from the...
-
Page 8: Rear Panel Description
Microphone Volume 1 Microphone Input 2 Mix Input Jack Microphone Volume 2 Power Switch IEC Socket Voltage Selector Grounded Screw Fuse PSR-12A BLOCK DIAGRAM MIC 1 INPUT MIC 1 INPUT LOW-AMP LOW-AMP MUSIC ENGINE MUSIC ENGINE MIC 2 INPUT MIC 2 INPUT... - Page 9 Powered Speaker System PSR-12A SPECIFICATIONS System Specifications Frequency Response(-3dB) 50Hz-18kHz Frequency Range(-10dB) 40Hz-20kHz Max SPL Long-term@1m 124dB Max SPL Peak@1m 127dB Horizontal Coverage Vertical Coverage Linkwitz-Riley, 24dB/octave@2.2kHz Crossover Audio Input Type Balanced Differential Input Impedance 20kohms Sensitivity Line 0dBu -32dBu...
- Page 10 Powered Speaker System PSR-12A SPECIFICATIONS Physical Properties Height 24.2in/615mm Width 16.4 in/416mm Depth 14 in/356mm Weight 55 lb/25kg Disclaimer Since we are always striving to make our products better by incorporating new and improved materials, components, and manufacturing methods, we reserve the right to change these specifications at any time without notice.
-
Page 11: N O T E
Powered Speaker System NOTES page 11 Operation Manual...
