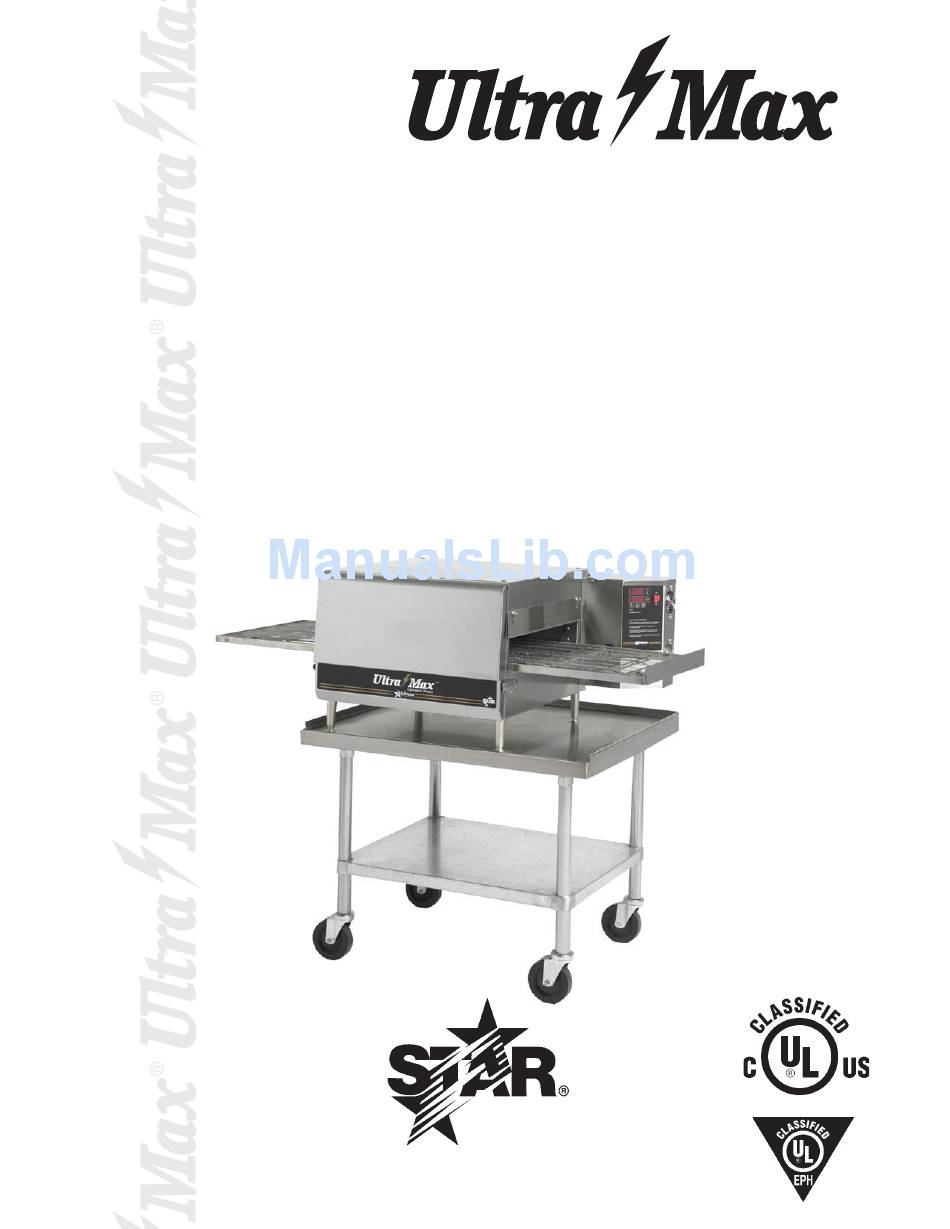

- Page 1 ® ELECTRIC CONVEYOR OVEN MODEL UM1833-208V UM1833-240V UM1850-208V UM1850-240V Installation and Operation Instructions 2M-Z6599 Rev. E 2/04/2010 UM1850...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
SPECIFICATIONS UM1833-208V, UM1833-240V Rating/Connection: 6,400 Watts (6,000 element), 32/29 Amps at 208/240V NEMA 6-50 plus with six foot oil-resistant cord Electrical Supply: Separate 50 Amp 208/240VAC, single phase, 50/60 Hz service per Oven Approximate Weight (1833 Oven with Legs): Installed - 180 Lbs (81.8 kg), Shipping - 210 Lbs (95.5 kg) Dimensions: Width: 51.2" (130.0 cm) - Oven with Shelves Depth: 30.4" (77.2 cm) Height: 20.0" (50.8 cm) - Single Oven with Legs 36.0" (91.4 cm) - Double Oven with Legs UM1850-208V, UM1850-240V Rating/Connection: 6,400 Watts (6,000 element), 32/29 Amps at 208/240V NEMA 6-50 plus with six foot oil-resistant cord Electrical Supply: Separate 50 Amp 208/240VAC, single phase, 50/60 Hz service per Oven Approximate Weight (1850 Oven with Legs): Installed - 210 Lbs (95.5 kg), Shipping - 240 Lbs (109.1 kg) Dimensions: Width: 50.0" (127.0 cm) Depth: 30.4" (77.2 cm) Height: 20.0" (50.8 cm) - Single Oven with Legs 36.0" (91.4 cm) - Double Oven with Legs UM1833 WITH INFEED/EXIT SHELVES 24.1 [612] TOP VIEW 1833 W\OUT SHELVES SHOWN A = 51.2 (1300) -
Page 4: General Information
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. First and foremost, each crate should be examined before signing the Bill of Lading to report any visible damage by the trucker in transit and to account for the proper number of crates. If there is apparent damage, arrangements should be made to file a claim against the carrier. Interstate Commerce Regulations require that the claim must be initiated by the consignee. Proper and secure storage facilities should be arranged for the oven(s) if necessary to protect it from outdoor or damp conditions at all times before installation. -IMPORTANT- When you have all the crates unloaded, open the crates and remove all plastic covers. Inspect at once for concealed damage. If anything appears to be damaged, contact the appropriate persons immediately to file a damage claim. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Do not attempt to operate the oven until connection of utility service has been fully inspected by an authorized service technician or a Star Service Representative. This service is required by Star in order to assist the purchaser in proper start-up of the oven on site. Please note the specific details on the Warranty and make certain that service connections are made to proper utility services. The warranty shall not apply if the oven is started up and operated prior to the utilities and oven being inspected and check-out made by an authorized service technician or a Star Service Representative. CAUTION IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE, OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY, OR DEATH. READ ALL INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. CAUTION Minimum clearances must be maintained from all walls and combustible materials. Minimum clearances for this unit should be 0 inches from the rear (rear bumpers provided must be in place) and 6 inches from both sides. Keep the oven free and clear of all combustible material. CAUTION Do not obstruct the ventilation holes in the control panels as these provide cooling air for the controls. WARNING The oven is to be operated only on the type of electricity shown on the specification plate. -
Page 6: Electrical Connection
This appliance must be installed on a sturdy counter or stand using the feet provided for cleaning clearance. As a minimum, 24" of clearance on the discharge end of the oven should be allowed for removal of the conveyor assembly if the oven is not on a mobile cart. Also allow room for a service technician to access the control box door and the fan motor cover over the rear of the oven if the oven is not movable. CAUTION Any surface the oven is mounted on should have a raised area around the perimeter to prevent the oven from accidentally sliding off the edge. Serious injury or death could occur if the oven falls on a person. CAUTION Any cart that the oven is mounted on must be deep and wide enough to provide a stable platform. A cart with a narrow stance could allow the oven to tip over,... -
Page 7: Stacking Instructions
STACKING INSTRUCTIONS The following instructions should be followed when stacking more than one unit. Single Oven (or Bottom) Cart Install: 1. Remove door, conveyor, and finger assemblies. 2. Unbolt unit from shipping crate (4 bolts). 3. Turn unit on front as shown. 4. Thread the four legs into the bottom of the oven. 5. CAREFULLY lift oven upright. Stacked Oven Install Preparation: 1. Remove door, conveyor, and finger assemblies. 2. Unbolt unit from shipping crate (4 bolts). 3. Turn unit on front as shown. 4. Remove top of lower oven (4 screws total, 2 each front and rear) and bolt to stacked oven base using 3/8 - 16 bolts. -
Page 8: Safety Tips
Please take time to read the following safety operating instructions. They are the key to the successful operation of your Ultra-Max Conveyor Oven. General Safety Tips: 1. If the oven needs to be moved for any SAFETY TIPS reason, the power must be disconnected For your safety, read before operating. from the unit before doing so. If you smell gas: 2. DO NOT remove the control box cover 1. DO NOT try to light any appliance. unless the oven is unplugged. 2. DO NOT touch any electrical switches. 3. Use an exterior phone to call your gas OPERATION supplier immediately. -
Page 9: Display Information
DISPLAY INFORMATION When operating the oven, there are three levels of access: 1. Store Level - General employees would know these functions and how to change them. While the oven is running, enter this mode by holding the DOWN and UP arrows ( simultaneously for four seconds. The TIME display goes blank and the TEMP setpoint is displayed. Adjust with the DOWN or UP arrows. The ENTER button ( ) toggles between TIME and TEMP. The parameter that can be adjusted is displayed, the other is blank. When TIME and TEMP are adjusted as needed, wait five seconds and SAVE is displayed. The values are accepted and the controller begins controlling to these new values. The conveyor continues to operate at the same speed until a new value is accepted. The temperature control output should be OFF during changes. - Page 10 BAKE TIME VERSUS TEMPERATURE 1. Bake time is actually conveyor speed and is defined as the time the product is actually in the oven. This is measured by noting the time when the leading edge of the product enters the oven and the time the leading edge of the product leaves the oven. This is adjusted by using the conveyor speed controller. 2. Bake temperature is adjusted by changing the setpoint of the temperature controller to the desired bake temperature. When the oven reaches the desired temperature, the red dot in the lower right corner of the temperature display will turn off and on as the controller maintains the temperature. 3. When establishing a bake time and temperature for a given product, the general rule shall be as the bake time increases the bake temperature decreases and the reverse is also true; increase temperature, decrease time. However, there are limits to the above rule. Going to extremes will result in a burnt exterior and raw interior or it will result in a very light color but over-baked product. 4. Once a good bake has been established, the fine adjustments should be made by holding either the bake time or bake temperature constant, then varying the other.
-
Page 11: Maintenance Instructions
MAINTENANCE INSTRUCTIONS CAUTION DISCONNECT THE POWER SUPPLY BEFORE SERVICING OR CLEANING THIS OVEN. SAFEGUARD THE POWER SO IT CANNOT BE A CCIDENTALLY RESTORED. FAILURE TO DO SO COULD RESULT IN DISMEMBERMENT, ELECTROCUTION, OR FATAL INJURY. THERE IS MORE THAN ONE POWER SUPPLY CONNECTION POINT WHEN OVENS ARE STACKED, SO MAKE SURE THAT ALL SWITCHES ARE IN THE OFF POSITION BEFORE CLEANING OR MAINTENANCE. No electrical components should be subjected to moisture. It is therefore important that the oven is wiped down carefully. NEVER throw buckets of water over the oven or subject it to pressure washing from a hose or a pressure spray. If water or other liquid is spilled on the oven, make sure that none of it has entered the control box area before switching the oven ON. If in doubt, call your service company. CAUTION Adhere to the following warnings when cleaning or maintaining your conveyor oven: 1. The oven must be cool. Do not use power cleaning equipment, steel wool, or wire brushes on stainless steel surfaces. 2. Do not use a caustic or an alkaline base cleaner on the interior of the oven. This will ruin the aluminized finish of the oven interior. 3. When using cleaning solutions, be sure they meet local and national health standards. Follow this recommended cleaning schedule for proper oven performance: DAILY 1. Clean the conveyor belt using a nylon brush. Allow any foreign material to drop into the crumb pans. 2. Empty and clean the crumb pans. Use a hot water and detergent mix. Rinse with clean water. EVERY MONTH 1. Brush and clean the guard on the motor cooling fan. - Page 12 DIRECTIONS FOR DISASSEMBLY 2. Push the spring-loaded coupling 1. Remove crumb trays and/or 3. Lift up the left end of the conveyor in to disengage the pin in the shelves from both ends. frame so the crumb tray supports shaft. Rotate the shaft so the pin (UM1850 only) clear the tunnel will not go back in the coupling opening. Push the conveyor slots. frame through the opening. 6. Upper nozzle (with slot) and 4. Finish removing the conveyor 5.
-
Page 13: Conveyor Belt Tension
CONVEYOR BELT TENSION The conveyor belt of the Ultra-Max Conveyor Oven does not have a tension adjustment. If the belt becomes too loose, a link will have to be removed to tighten. A belt that is too tight will also cause operational problems due to excessive drag. We suggest that you have a qualified service technician perform this adjustment. CAUTION Careful consideration should be exercised prior to removing a belt link because a belt that is too tight will impede the smooth operation of Remove the outside master links on the right and left the conveyor. sides of the conveyor belt. Remove the center splice clips next. CONVEYOR BELT LINK REMOVAL An entire link can be removed with the conveyor assembly either in or out of the oven. This may be necessary as the belt stretches after continuous use. Following are the necessary steps for removing links: 1. Move the splice clips to either end of the oven for easy access. 2. Unhook the splice clips using long nose pliers. 3. Unhook the full link to be removed and slide it out. Do not discard the link removed as it may be used for making spare splice clips. Unhook the end loop and pull up on the link section. 4. Reconnect the inside splice clips. Save this link as it may be used for making splice clips. - Page 14 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.
-
Page 19: Parts List
PARTS LIST February 4, 2010, Rev E Ultra-Max Electric Conveyor Oven 8B-UM1833/1850-208/240V - Main Assembly MODEL Number Part Number Unit Description and Model Designation Number G9-Z5716 TUNNEL SHROUD G9-Z5745 INFEED SHELF G9-Z5362 EXIT SHELF 2A-Z0314 ADJUSTABLE LEG 2C-Z5182 THUMB SCREW 2M-Z5747 CONTROL GRAPHIC 2M-Z5665 FRONT GRAPHIC 2P-Z4996 VENT PLUG 2R-Z5174 LATCH 2R-Z5188 LATCH KEEPER 2V-Z6696 PRESSURE TUBE G9-Z5574 HOSE SECTION 2V-Z5789 PROBE TUBE G9-EC0025 CONVEYOR FRAME UM1833 G9-EC0043 CONVEYOR FRAME... - Page 21 PARTS LIST February 4, 2010, Rev E Ultra-Max Electric Conveyor Oven 8B-UM1833/1850-208/240V - Control Box MODEL Number Part Number Number Description Unit 2E-Z5798 CORD SET 208V, 50A G9-EC0014 CONTROL BOX DOOR ASSEMBLY G9-Z7280 CONTROLLER, TIME / TEMPERATURE STD (°F) G9-Z7283 CONTROLLER, TIME / TEMPERATURE X/CE (°C) 2E-Z5683 VACUUM LIMIT SWITCH (Contact Service if replacing 2E-Z5180) 2T-Z5175 THERMOSTAT, 120°F 2T-Z5176 THERMOSTAT, 140°F 2T-Z5177 HIGH TEMPERATURE LIMIT THERMOSTAT 2E-Z1858 SWITCH - LIGHTED 2J-Z5189 THERMOCOUPLE ASSEMBLY G9-Z6610 POWER SUPPLY, 24VDC-150W (230V INPUT) G9-Z5738 LID, CONTROL BOX 2U-Z5171 GEARMOTOR G9-Z5740 GEARMOTOR BRACKET 2A-Z6534 COUPLING, SPRING LOADED 2B-Z5775...
- Page 23 PARTS LIST February 4, 2010, Rev E Ultra-Max Electric Conveyor Oven 8B-UM1833/1850-208/240V - Finger Assembly MODEL Number Part Number Number Description Unit G9-GC0037 LOWER FINGER BAFFLE G9-EC0048 LOWER FINGER WELDMENT G9-Z6407 LOWER COLUMNATING PLATE G9-Z6406 LOWER NOZZLE G9-Z6409 UPPER NOZZLE G9-Z6411 UPPER COLUMNATING PLATE G9-EC0044 UPPER FINGER WELDMENT PAGE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED INCLUDE MODEL AND SERIAL NUMBER OF Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. ...
