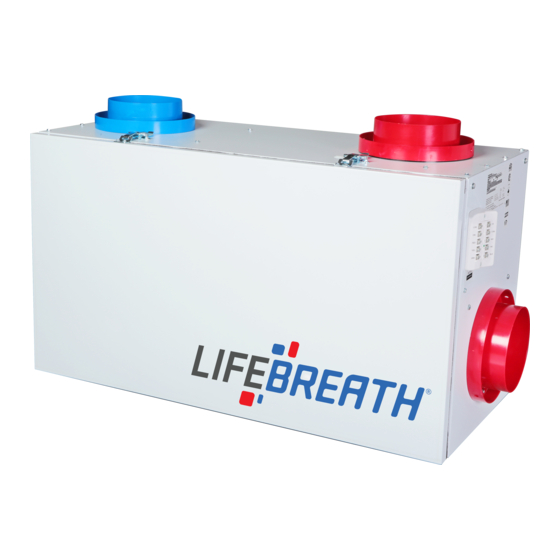

OPERATION AND
INSTALLATION MANUAL
For Models:
95MAX
155MAX
155ECM
155MAXRX
200MAX
200MAXRX
MAXTOP
195DCS
300DCS
200ERV
200ERVD
TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION
Installation Date
Contains ControlAir 15
IMPORTANT - PLEASE READ THIS
MANUAL BEFORE INSTALLING
UNIT.
CAUTION
Before installation, careful consideration must be given to
how this system will operate if connected to any other piece
of mechanical equipment, i.e. a forced air furnace or air
handler, operating at a higher static. After installation, the
compatibility of the two pieces of equipment must be
confirmed by measuring the airflow's of the Heat Recovery
Ventilator (HRV) Energy Recovery Ventilator (ERV) by
using the balancing procedure found in this manual.
It is always important to assess how the operation of any
HRV/ERV may interact with vented combustion equipment
(ie. Gas Furnaces, Oil Furnaces, Wood Stoves, etc.).
NEVER install a ventilator in a situation where its normal
operation, lack of operation or partial failure may result in
the backdrafting or improper functioning of vented combus-
tion equipment!!!
Installing Contractor
Telephone / Contact
Serial Number
Model
* LEAVE FOR HOMEOWNER
NOTE: Due to ongoing research and product development, specifications,
ratings and dimensions are subject to change without notice.
TI-84R-NE
0406
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lifebreath Air Purifier 155ECM
Summary of Contents for Lifebreath Air Purifier 155ECM
- Page 1 OPERATION AND INSTALLATION MANUAL Contains ControlAir 15 For Models: 95MAX 155MAX 155ECM 155MAXRX 200MAX 200MAXRX MAXTOP 195DCS 300DCS 200ERV 200ERVD TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION Installation Date IMPORTANT - PLEASE READ THIS MANUAL BEFORE INSTALLING UNIT. CAUTION Before installation, careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e.
-
Page 2: Table Of Contents
Table of Contents Introduction ...2 Warranty ...2 ERV Questions & Answers ...3 Climate Map...4 Technical Data - Model 95MAX ...5 Technical Data - Model 155MAX ...6 Technical Data - Model 155ECM ...7 Technical Data - Model 155MAX RX ...8 Technical Data - Model 200MAX ...9 Technical Data - Model 200MAX RX ...10 Technical Data - Model MAXTOP...11 Technical Data - Model 195DCS...12... -
Page 3: Erv Questions & Answers
ERV Questions and Answers What is the difference between an HRV and an ERV? The core in an HRV (Heat Recovery Ventilator) trans- fers heat from one air stream to the other. This is called sensible heat. The term ERV (Energy Recovery Ventilator) is usually used to describe a unit with an enthalpic core that transfers moisture as well as heat from one air stream to the other. -
Page 5: Warranty
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 6: Engineering Data
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 7: Technical Data - Model 155Ecm
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS High effficiency electronic comutated ECM motor for maximum energy sav- ings. Each air stream has one centrifugal blower. 5 speed fan operation driven by one double shaft motor. -
Page 8: Technical Data - Model 155Max Rx
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 9: Technical Data - Model 200Max
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 10: Technical Data - Model 200Max Rx
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. -
Page 11: Technical Data - Model Maxtop
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 12: Technical Data - Model 195Dcs
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. The two cores are arranged for highly efficient counter current airflow. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 13: Technical Data - Model 300Dcs
ENGINEERING DATA THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the twoairstreams. The two cores are arranged for highly efficient counter current airflow. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 14: Technical Data - Model 200Erv
ENGINEERING DATA LATENT RECOVERY/MOISTURE TRANSFER CORE The cross-flow energy recovery core transfers heat and water vapour between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. -
Page 15: Technical Data - Model 200Ervd
ENGINEERING DATA LATENT RECOVERY/MOISTURE TRANSFER CORE The cross-flow energy recovery core transfers heat and water vapour between the two airstreams. It is easily removed for cleaning or service. MOTORS AND BLOWERS Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. -
Page 16: Function And Control Operation Of The Controlair 15
Function and Controls Operating the ControlAir 15 Plugging in the HRV/ERV energizes the unit. A self test function will be performed every time the HRV/ERV is energized (refer to “Self Test” for more details). After the self test has completed successfully the HRV/ERV will default to Speed 1. -
Page 17: Selecting Speeds And Modes Of Operation
To Select Mode of Operation for ControlAir 15 Press and hold the fan selection button on the Control Pad. After 5 seconds the control will begin to cycle each mode holding each for 2 seconds. Release the button when the desired mode of operation is reached. Modes of Operation ON/STANDBY 20 ON / 40 OFF... -
Page 18: The Control Pad Mounted In The Control Module
The Control Pad Mounted in the Control Module Speed Indicator Lights Speed 5 - flashing yellow Speed 4 - solid yellow Speed 3 - solid yellow Speed 2 - solid yellow Speed 1 - solid yellow Mode Indicator Light OFF...no light ON/STANDBY...solid green 20 ON/40 OFF...flashing green RECIRCULATION* ...solid red... -
Page 19: Optional Remote Controls
ControlAir 15 Optional Remote Controls Optional Main Controls The amount of ventilation required in your home will fluctuate according to the activity level in the house. Higher activity levels require more ventilation. Main controls can be mounted in a central location of the home (i.e. beside the furnace thermostat) which will provide the user with com- plete control over their ventilation system from a convenient location. -
Page 20: Using The Dehumidistat
Using the Dehumidistat Some models have a built-in dehumidistat (an optional remote wall mount dehumidistat can be installed, see Optional Remote Controls), to control harmful, excess humidity during the heating season. The dehumidis- tat operates in % of RH (relative humidity) with 80 being high and 20 being low. -
Page 21: Schematic Diagram - Model 95Max
DIMENSIONS 95MAX inches (mm 18.5" (470 mm) Removably Heat Recovery Core Drain Pan Drain spout FRONT 95 MAX Port Specifications The 95 Max Heat Recovery Ventilator (HRV) has been designed to allow the installer to choose between two possible positions on the cabinet for the INDOOR EXHAUST (return from building) port. -
Page 22: Installation
Installation Location The HRV/ERV must be located in a heated space where it will be possible to conveniently service the unit. Typically the HRV/ERV would be located in the mechanical room or an area close to the outside wall where the weatherhoods will be mounted. If a base- ment area is not convenient or does not exist, a utility or laundry room may be used. -
Page 23: Installing Air Ducts
Installing Air Ducts A well designed and installed ducting system will allow theHRV/ERV to operate at its maximum efficiency. Always try to keep duct runs as short and straight as possible.See Installation Diagrams for various instal- lation options. Outside Weatherhoods The fixed covered hoods have a built-in bird screen with a 1/4"... -
Page 24: Supply Air Ducting
Supply Air Ducting In homes without a forced air furnace, fresh air should be supplied to all bedrooms and living areas, exclud- ing bathrooms, kitchen and utility areas. It should be supplied from high wall or ceiling locations. Grilles that diffuse the air comfortably such as the Techgrille™... -
Page 25: Installation Diagrams
Installation Diagrams Example diagram only - duct configuration may change depending on model Partially Dedicated System ATTENTION Duct configuration may change depending on the model. See Specifications for your unit. DIRECT CONNECTION of the SUPPLY AIR STREAM to the FURNACE COLD AIR RETURN (Stale air drawn from key areas of home) EXHAUST AIR from various parts of home. -
Page 26: Simplified Installation
Installation Diagrams Example diagram only - duct configuration may change depending on model Simplified Installation Option 1 (Return/Return Method) ATTENTION Duct configuration may change depending on the model. See Specifications for your unit. DIRECT CONNECTION of both the HRV/ERV SUPPLY AIR STREAM and EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN RETURN AIR Outdoors... -
Page 27: Return Air
Installation Diagrams Example diagram only - duct configuration may change depending on model Simplified Installation Option 2 (Supply/Return Method) ATTENTION Duct configuration may change depending on the model. See Specifications for your unit. DIRECT CONNECTION of both the HRV/ERV SUPPLY AIR STREAM and EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN &... -
Page 28: Fully Dedicated System
Installation Diagrams Example diagram only - duct configuration may change depending on model Fully Dedicated System ATTENTION Duct configuration may change depending on the model. See Specifications for your unit. Please Note: It is the responsibility of the installer to ensure all ductwork is sized and installed as designed to ensure the system will perform as intended. -
Page 29: Air Flow Balancing
Pitot Tube Air Flow Balancing It is necessary to have balanced air flows in an HRV/ERV. The vol- ume of air brought in from the outside must equal the volume of air exhausted by the unit. If the air flows are not properly balanced, then;... -
Page 30: Balancing Collar Instructions
Balancing Collar Instructions Push and turn with slotted screwdriver. Damper automatically locks when pressure is released. Hard/Rigid ducting 1/2” Installations where the HRV is ducted directly to the return of a furnace may require additional Insulated flexible dampening on the fresh air to building duct. ducting This is due to the high return static pressures found in some furnace installations. -
Page 31: Maintenance Routine For Hrv
Maintenance Routine for HRV (for ERV, see following page) 1. Inspect Exterior Hoods at least once a month. Make sure exhaust and fresh air supply hoods are not blocked or restricted by leaves, grass, or snow. In win- ter, it is especially important to make sure snow is not blocking the hoods or that frost has not built up on the wire mesh (bird screen). -
Page 32: Maintenance Routine For Erv
Maintenance Routine for ERV (for HRV, see previous page) 1. Inspect Exterior Hoods at least once a month Make sure exhaust and fresh air supply hoods are not blocked up or restricted by leaves, grass, or dirt. WARNING: Blockage of hoods may cause an imbal- ance. -
Page 33: Troubleshooting
Troubleshooting your HRV/ERV System SYMPTOM Poor Air Flows Supply air feels cold Dehumidistat is not Operating Humidity Levels are too High Condensation is appearing on the windows Humidity Levels are too Low HRV/ERV and / or Ducts Frosting up Condensation or Ice Build Up in Insulated Duct to the Outside Water in the bottom of the HRV/ERV CAUSE... -
Page 34: Interlocking Hrv Operation To An Airhandler/Furnace Blower
Interlocking HRV Operation to an Airhandler/Furnace Blower - ControlAir 15 Electronics Connecting the HRV/ERV as illustrated will ensure the Air Handler/Furnace Blower Motor is operating whenever the HRV/ERV is ventilating. MICRO PROCESSOR BOARD TO DISABLE RECIRCULATION REMOVE SEL2 SEL2 REMOVE SEL1 FOR R-2000 SEL1 COMMON... -
Page 35: Wiring Diagrams
Residential Wiring Diagram RESIDENTIAL WIRING DIAGRAM MICRO PROCESSOR BOARD TO DISABLE RECIRCULATION REMOVE SEL2 SEL2 REMOVE SEL1 FOR R-2000 SEL1 CONTACT WARNING 750 ma MAX FUSE CHASSIS FAN O/P LEGEND HIGH VOLTAGE 12V LOW VOLTAGE FIELD INSTALLED 12V LOW VOLTAGE IMPORTANT: Control Low Voltage is 12VAC DO NOT CONNECT EXTERNAL POWER SOURCES TO UNIT DEFROST DETAILS... - Page 36 Residential Wiring Diagram RESIDENTIAL WIRING DIAGRAM MICRO PROCESSOR BOARD TO DISABLE RECIRCULATION REMOVE SEL2 SEL2 REMOVE SEL1 FOR R-2000 SEL1 CONTACT WARNING 750 ma MAX FUSE CHASSIS FAN O/P DEFROST DETAILS PLUG IN CONNECTOR ORANGE ORANGE BI-DIRECTIONAL DAMPER MOTOR THERMIST0R (NOT ON ALL UNITS) INTERNAL DEHUMIDISTAT COMMON...
