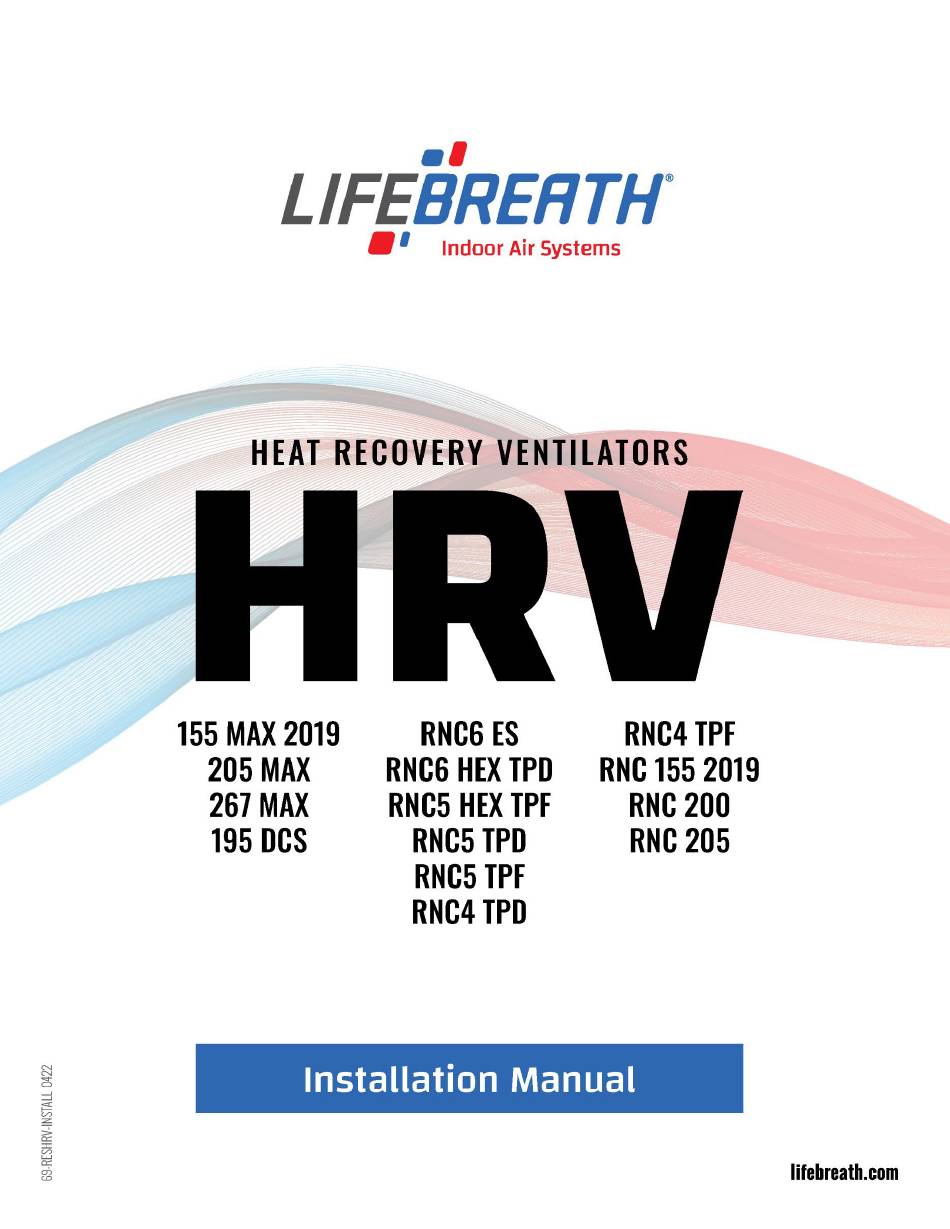

Lifebreath 155 MAX 2019 Installation Manual

Lifebreath 155 MAX 2019 Installation Manual

Hide thumbs Also See for 155 MAX 2019:

Advertisement

wwf
Pre-Installation Notes
Note
Due to ongoing research and product development, specifications, ratings, and dimensions are
subject to change without notice. Refer to www.LIFEBREATH.com for the latest product
information.
Attention
Do not apply electrical power to the unit until after the completion of the installation (including
installation of low voltage control wiring).
Ensure the installation and wiring is in accordance with CEC, NEC, and local electrical codes.
Plug the unit into a standard designated (120 VAC) electrical outlet with ground.
The use of an extension cord with this unit is not recommended. If the installation requires
further wiring, have a licensed electrician make all of the electrical connections. The
recommended circuit is a separate 15 A/120 V circuit.
Caution
Before installation, careful consideration must be given to how this system will operate if
connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler,
operating at a higher static. After installation, the compatibility of the two pieces of equipment
must be confirmed, by measuring the airflows of the HRV, by using the balancing procedure
found in this manual. Never install a ventilator in a situation where its normal operation, lack of
operation or partial failure may result in the back drafting or improper functioning of vented
combustion equipment
Unit must be installed level to ensure proper condensate drainage. Due to the broad range of
installation and operational conditions, consider the possibility of condensation forming on
either the unit or connecting ducting. Objects below the installation may be exposed to
condensate.
Do not install control wiring alongside electrical wire.
Warning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 155 MAX 2019 and is the answer not in the manual?

Questions and answers

Chris Chernow
July 2, 2025

Does the drain line just hang?

User image 6865b1589bb9a

Summary of Contents for Lifebreath 155 MAX 2019

  • Page 1 Note Due to ongoing research and product development, specifications, ratings, and dimensions are • subject to change without notice. Refer to www.LIFEBREATH.com for the latest product information. Attention Do not apply electrical power to the unit until after the completion of the installation (including •...
  • Page 2 Note Due to ongoing research and product development, specifications, ratings, and dimensions are • subject to change without notice. Refer to www.lifebreath.com for the latest product information. Attention Do not apply electrical power to the unit until after the completion of the installation (including •...
  • Page 3: Table Of Contents

    Airflow Charts (RNC205) ........46 Timers ..............21 Airflow Charts (RNC205) ........47 Repeater ............22 Airflow Charts (155 MAX 2019) ......48 Installer Selectable High Speed Settings ... 23 Airflow Charts (205MAX) ........49 Dimensional Drawings ........24 Airflow Charts (205MAX) ........50 Dimensional Drawings ........
  • Page 4: Location Notes

    (EC) variable speed blower motor will minimize your electrical energy consumption and operating cost. Installation of a user-accessible control with your product model will improve comfort and may • significantly reduce the product model’s energy use. lifebreath.com...
  • Page 5: Simplified Installation (Return/Return Method)

    Backdraft dampers are recommended for the stale air to outside air duct. This damper prevents • outdoor air from entering the HRV during the operation of the furnace/air handler while the HRV is in standby, off, or recirculating. lifebreath.com...
  • Page 6: Partially Dedicated System Installation

    Backdraft dampers are recommended for the stale air to outside air duct. This damper prevents • outdoor air from entering the HRV during the operation of the furnace/air handler while the HRV is in standby, off, or recirculating. lifebreath.com...
  • Page 7: Fully Dedicated System Installation

    Backdraft dampers are recommended for the stale air to outside air duct. This damper prevents • outdoor air from entering the HRV during the operation of the furnace/air handler while the HRV is in standby, off, or recirculating. lifebreath.com...
  • Page 8: Optional Duct Configurations (195Dcs)

    Note: DIP Switch #2 must be set to “OFF” position to activate recirculation if this configuration is applied. See Installer Selectable High Speed Settings for more information. Attention Use Figure B ducting configuration to avoid negative pressure from being built up in the mechanical • room during the defrost cycle. lifebreath.com...
  • Page 9: Mounting (Rnc4-Tpd / -Tpf)

    3. Once the tabs have all been bent outwards, insert the “S” hooks through the four holes on the tabs. 4. Install the unit to the structure. Refer to Hanging Straps. Attention Do not drill additional holes in the HRV • lifebreath.com...
  • Page 10: Hanging Straps

    The washer must be wider than the eyelet of the grommet on the hanging strap. • Must push up on the bottom of the HRV when pulling the hanging straps. • The unit must be mounted level for proper drainage of the condensate pans. • lifebreath.com...
  • Page 11: Drain Connection

    Drain trap and tubing must be below bottom of door with 1/4 in. per foot downwards slope away • from unit. Under certain conditions, a secondary drain pan may be required to protect from condensate • leakage. lifebreath.com...
  • Page 12: Grilles

    The TechGrille is a round, fully adjustable grille, which provides quiet air distribution. • Part # 99-EAG4, 4 in (100 mm) • Part # 99-EAG5, 5 in (125 mm) • Part # 99-EAG6, 6 in (150 mm) • Part # 99-EAG8, 8 in (200 mm) lifebreath.com...
  • Page 13: Grille Fittings

    Available size: 6 in. • Caution Do not mount exhaust grille within 4 ft (1.2 m) (horizontally) of a stove to prevent grease from entering the • unit. lifebreath.com...
  • Page 14: Lifebreath Weather Hoods

    Intake: Should be located upstream (if there are prevailing winds) from the exhaust outlet. Not near dryer vents, furnace exhaust, driveways, oil fill pipes, gas meters, or garbage containers. Exhaust: Not near a gas meter, electric meter or a walkway where fog or ice could create a hazard. lifebreath.com...
  • Page 15: Lifebreath Dual Hood

    12 L IFEBREATH The Lifebreath Dual Hood only requires one 6 in. opening for intake and exhaust. The Lifebreath Dual Hood can be used up to a maximum airflow of 140 cfm. Available Units: 99-194 – 4 in. Dual Hood (not shown) •...
  • Page 16: Main Control Installation (99-Dxpl02)

    11. Connect the 3 wires 20 gauge (min.), 100 ft length (max.), to the 3 (RED), 4 (YEL), and 5 (GRN) terminals located on the HRV terminal block (figure C). Attention • Use care when separating or attaching the face plate to avoid damaging the contact pins. lifebreath.com...
  • Page 17: Main Control Installation (99-Bc02/3/4)

    10. Connect the 3 wires 20 gauge (min.), 100 ft length (max.), to the 3 (RED), 4 (YEL), and 5 (GRN) terminals located on the HRV terminal block (figure D). Attention • Use care when separating or attaching the face plate to avoid damaging the contact pins. lifebreath.com...
  • Page 18: Interlocking The Hrv

    Method). The HRV should be interlocked to the furnace/air handler with a Partially Dedicated System Installation. • Caution • Consideration should be given to competing airflows when connecting the HRV in conjunction with an air handler/ furnace blower system. lifebreath.com...
  • Page 19: Additional Controls

    Building codes in some areas require “fully-off” functionality. Check with your local building authority before modifying the unit to “standby-off”. Unintentional operation of the HRV by the end user may occur if the unit is modified from “fully-off” to “standby-off”. lifebreath.com...
  • Page 20: Timers

    (HI) terminals on the HRV terminal block as shown. Attention • Timers mount in standard electrical boxes. Use 3 wire 20 gauge (min.) 100 ft length (max.) low voltage wire and multiple timers individually wired • back to the unit. lifebreath.com...
  • Page 21: Timers

    5. Attach the face plate to the back plate (figure B). Attention The wireless timers and repeaters must be paired to the main control of the HRV. This process is called • “Pairing”. Multiple timers and repeaters can be paired to the main control. lifebreath.com...
  • Page 22: Repeater

    7. To pair additional repeaters with the same main control, repeat steps 1 through 5 until all repeaters have been paired. Attention • The repeaters are to be plugged directly into a 120V power outlet. lifebreath.com...
  • Page 23: Installer Selectable High Speed Settings

    Hi 1 (Low Speed) Leave on factory setting Note: Low Speed is not adjustable; Switch 1 factory setting is ON Functionality of DIP Switches Switch Status Description Recirculation enabled Recirculation disabled Note: Recirculation is not available on all units. lifebreath.com...
  • Page 24: Dimensional Drawings

    20 D IMENSIONAL RAWINGS RNC4-TPD and RNC4-TPF Dimensions: RNC5-TPD, RNC5-TPF, and RNC6-ES Dimensions: RNC6-HEX-TPD and RNC5-HEX-TPF Dimensions: lifebreath.com...
  • Page 25: Dimensional Drawings

    20 D IMENSIONAL RAWINGS 155MAX 2019, and RNC155 2019 Dimensions: lifebreath.com...
  • Page 26: Dimensional Drawings

    21 D IMENSIONAL RAWINGS 205MAX, 267MAX, and RNC205 Dimensions: 195DCS Dimensions: lifebreath.com...
  • Page 27: Balancing The Airflows

    Gauge Attachments: When sampling an airflow, various attachments are available for use on a digital manometer. Consult with your Lifebreath distributor for available options such as a pitot tube, flow measuring station, and an airflow measuring probe. The illustration below shows a digital manometer with a pitot tube attachment.
  • Page 28: Balancing The Airflows

    • Installations where the HRV is ducted directly to the return of a furnace may require additional dampening on the fresh air to building duct. This is due to the high return static pressures found in some furnace installations. lifebreath.com...
  • Page 29: Balancing The Airflows - Pitot Tube

    3. Repeat Step 2 to measure the “Fresh Air to Inside” stream. 4. Review the readings and damper down the duct with the highest duct velocity pressure. Repeat Steps 2 and 3 until both ducts show identical readings. Upon completion of balancing, seal the holes with foil tape. lifebreath.com...
  • Page 30: Balancing The Airflows - Door Ports

    8. Damper down the higher airflow and repeat Steps 5 through 7 as required until both airflows are identical (balanced). 9. Remove the tape and hoses and reinstall the four door port covers. lifebreath.com...
  • Page 31: Door Port Locations

    Door Ports Exhaust Balance Port High (+) Exhaust Balance Port Low (-) Supply Balance Port High (+) Supply Balance Port Low (-) RNC5-TPD/TPF/ RNC 6ES RNC6-HEX-TPD/5-HEX-TPF RNC 155 2019 RNC205 MAX 155 2019 MAX 205 MAX 267 RNC4-TPD RNC4-TPF lifebreath.com...
  • Page 32: Airflow Charts (Rnc4-Tpd)

    0.540 135 0.470 118 0.420 0.550 138 0.480 120 0.430 0.560 140 0.490 123 0.440 0.570 143 0.500 125 0.450 0.580 145 0.510 128 0.460 0.590 148 0.520 130 0.470 0.600 150 0.530 133 0.480 Continued next page ► lifebreath.com...
  • Page 33: Airflow Charts (Rnc4-Tpd)

    0.740 185 0.670 168 0.620 0.750 188 0.680 170 0.630 0.760 190 0.690 173 0.640 0.770 193 0.700 175 0.650 0.780 195 0.710 178 0.660 0.790 198 0.720 180 0.670 0.800 200 0.730 183 0.680 0.810 203 0.740 185 0.690 lifebreath.com...
  • Page 34: Airflow Charts (Rnc4-Tpf)

    0.530 133 0.510 128 0.530 0.540 135 0.520 130 0.540 0.550 138 0.530 133 0.550 0.560 140 0.540 135 0.560 0.570 143 0.550 138 0.570 0.580 145 0.560 140 0.580 0.590 148 0.570 143 0.590 Continued next page ► lifebreath.com...
  • Page 35: Airflow Charts (Rnc4-Tpf)

    0.810 203 0.790 198 0.810 0.820 205 0.800 200 0.820 0.830 208 0.810 203 0.840 210 0.820 205 0.850 213 0.830 208 0.860 215 0.840 210 0.870 218 0.850 213 0.880 220 0.860 215 0.890 223 0.870 218 0.900 225 lifebreath.com...
  • Page 36: Airflow Charts (Rnc6-Es)

    0.67 0.60 0.81 0.68 0.61 0.82 0.69 0.62 0.83 0.70 0.63 0.84 0.71 0.64 0.85 0.72 0.65 0.86 0.73 0.66 0.87 0.74 0.67 0.88 0.75 0.68 0.89 0.76 0.69 0.90 0.77 0.70 0.91 0.78 0.71 Continued next page ► lifebreath.com...
  • Page 37: Airflow Charts (Rnc6-Es)

    0.85 0.78 0.99 0.86 0.79 1.00 0.87 0.80 1.01 0.88 0.81 1.02 0.89 0.82 1.03 0.90 0.83 1.04 0.91 0.84 1.05 0.92 1.06 0.93 1.07 0.94 1.08 0.95 1.09 0.96 1.10 0.97 1.11 1.12 1.13 1.14 1.15 1.16 1.17 lifebreath.com...
  • Page 38: Airflow Charts (Rnc5-Tpd/Tpf)

    0.550 0.470 0.780 0.560 0.480 0.790 0.570 0.490 0.800 0.580 0.500 0.810 0.590 0.510 0.820 0.600 0.520 0.830 0.610 0.530 0.840 0.620 0.540 0.850 0.630 0.550 0.860 0.640 0.560 0.870 0.650 0.570 0.880 0.660 0.580 Continued next page ► lifebreath.com...
  • Page 39: Airflow Charts (Rnc5-Tpd/Tpf)

    0.830 0.440 1.060 0.840 0.450 1.070 0.850 0.460 1.080 0.860 0.470 1.090 0.870 0.480 1.100 0.880 0.490 1.110 0.890 0.500 0.900 0.510 0.910 0.520 0.920 0.530 0.930 0.540 0.940 0.550 0.950 0.560 0.960 0.570 0.970 0.580 0.980 0.990 1.000 lifebreath.com...
  • Page 40: Airflow Charts (Rnc6-Hex-Tpd/5-Hex-Tpf)

    0.410 0.410 0.420 0.420 0.420 0.430 0.430 0.430 0.440 0.440 0.440 0.450 0.450 0.450 0.460 0.460 0.460 0.470 0.470 0.470 0.480 0.480 0.480 0.490 0.490 0.490 0.500 0.500 0.500 0.510 0.510 0.510 0.520 0.520 0.520 Continued next page ► lifebreath.com...
  • Page 41: Airflow Charts (Rnc6-Hex-Tpd/5-Hex-Tpf)

    0.620 0.630 0.630 0.630 0.640 0.640 0.640 0.650 0.650 0.660 0.660 0.670 0.670 0.680 0.680 0.690 0.690 0.700 0.700 0.710 0.710 0.720 0.720 0.730 0.730 0.740 0.740 0.750 0.750 0.760 0.770 0.780 0.790 0.800 0.810 0.820 0.830 0.840 0.850 lifebreath.com...
  • Page 42: Airflow Charts (Rnc155 2019)

    0.105 0.105 0.110 0.110 0.110 0.115 0.115 0.115 0.120 0.120 0.120 0.125 0.125 0.125 0.130 0.130 0.130 0.135 0.135 0.135 0.140 0.140 0.140 0.145 0.145 0.145 0.150 0.150 0.150 0.155 0.155 0.155 0.160 0.160 0.160 Continued next page ► lifebreath.com...
  • Page 43: Airflow Charts (Rnc155 2019)

    0.230 0.230 0.235 0.235 0.235 0.240 0.240 0.240 0.245 0.245 0.245 0.250 0.250 0.250 0.255 0.255 0.255 0.260 0.260 0.260 0.265 0.265 0.265 0.270 0.270 0.270 0.275 0.275 0.275 0.280 0.280 0.280 0.285 0.285 0.285 Continued next page ► lifebreath.com...
  • Page 44: Airflow Charts (Rnc155 2019)

    0.315 0.315 0.320 0.320 0.320 0.325 0.325 0.330 0.330 0.335 0.335 0.340 0.340 0.345 0.345 0.350 0.350 0.355 0.355 0.360 0.360 0.365 0.365 0.370 0.370 0.375 0.375 0.380 0.380 0.385 0.385 0.390 0.390 0.395 0.395 0.400 0.400 0.405 0.410 lifebreath.com...
  • Page 45: Airflow Charts (Rnc200)

    42.4 0.180 44.9 0.190 47.3 0.200 49.8 0.210 52.3 0.220 54.8 0.230 57.3 0.240 59.8 0.250 62.3 0.260 64.8 0.270 67.3 0.280 69.8 0.290 72.3 0.300 74.8 0.310 77.2 0.320 79.7 0.330 82.2 0.340 84.7 0.350 87.2 0.360 89.7 lifebreath.com...
  • Page 46: Airflow Charts (Rnc205)

    0.73 0.66 0.92 0.74 0.67 0.93 0.75 0.68 0.94 0.76 0.69 0.95 0.77 0.70 0.96 0.78 0.71 0.97 0.79 0.72 0.98 0.80 0.73 0.99 0.81 0.74 1.00 0.82 0.75 1.01 0.83 0.76 1.02 0.84 0.77 Continued next page ► lifebreath.com...
  • Page 47: Airflow Charts (Rnc205)

    1.05 0.98 1.24 1.06 0.99 1.25 1.07 1.00 1.26 1.08 1.01 1.27 1.09 1.02 1.28 1.10 1.03 1.29 1.11 1.04 1.30 1.12 1.05 1.31 1.13 1.32 1.14 1.33 1.15 1.34 1.16 1.35 1.36 1.37 1.38 1.39 1.40 1.41 1.42 lifebreath.com...
  • Page 48: Airflow Charts (155 Max 2019)

    34 A (155 MAX 2019) IRFLOW HARTS Speed 5 Speed 5 Speed 5 Pressure Supply Exhaust Pressure Supply Exhaust Pressure Supply Exhaust Drop Airflow Airflow Drop Airflow Airflow Drop Airflow Airflow (“w.g.) (Pa) (cfm) (cfm) (“w.g.) (Pa) (cfm) (cfm) (“w.g.) (Pa)
  • Page 49: Airflow Charts (205Max)

    0.73 0.66 0.92 0.74 0.67 0.93 0.75 0.68 0.94 0.76 0.69 0.95 0.77 0.70 0.96 0.78 0.71 0.97 0.79 0.72 0.98 0.80 0.73 0.99 0.81 0.74 1.00 0.82 0.75 1.01 0.83 0.76 1.02 0.84 0.77 Continued next page ► lifebreath.com...
  • Page 50: Airflow Charts (205Max)

    1.05 0.98 1.24 1.06 0.99 1.25 1.07 1.00 1.26 1.08 1.01 1.27 1.09 1.02 1.28 1.10 1.03 1.29 1.11 1.04 1.30 1.12 1.05 1.31 1.13 1.32 1.14 1.33 1.15 1.34 1.16 1.35 1.36 1.37 1.38 1.39 1.40 1.41 1.42 lifebreath.com...
  • Page 51: Airflow Charts (267Max)

    1.50 1.06 0.85 1.52 1.07 0.86 1.54 1.08 0.87 1.56 1.09 0.88 1.58 1.10 0.89 1.60 1.11 0.90 1.62 1.12 0.91 1.64 1.13 0.92 1.66 1.14 0.93 1.68 1.15 0.94 1.70 1.16 0.95 1.72 1.74 Continued next page ► lifebreath.com...
  • Page 52: Airflow Charts (267Max)

    2.16 1.39 1.18 2.18 1.40 1.19 2.20 1.41 1.20 2.22 1.42 0.98 2.24 1.43 0.99 2.26 1.44 1.00 2.28 1.45 1.01 2.30 1.46 1.02 2.32 1.47 1.03 2.34 1.48 1.04 2.36 1.49 1.05 2.38 1.50 1.06 2.40 1.51 1.07 lifebreath.com...
  • Page 53: Troubleshooting

    HRV is set at too low a speed remove additional moisture • • On humid days, as the seasons change, some condensation may appear, but the homes air quality will remain high with some HRV use Increase speed of the HRV lifebreath.com...
  • Page 54: Troubleshooting

    Look for kinks in the drain line drain lines • HRV is not level Drain lines are obstructed • • HRV heat exchange core is not properly installed Excessive Vibration • Dirt on fan wheels • Have contractor service HRV lifebreath.com...
