Lifebreath Air Purifier 195ECM Specifications

ENGINEERING DATA
THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE
The cross-flow heat recovery core transfers heat between the two airstreams. The two
cores are arranged for highly efficient counter current airflow.
MOTORS AND BLOWERS
Each air stream has one centrifugal blower driven by a common ECM motor. 5 speed
fan operation. 120 VAC, 1.4 Amps.
FILTERS
Washable air filters in exhaust and supply air streams.
MOUNTING THE HRV
Four threaded inserts at corners of case designed to accept four reinforced polyester
straps that are supplied with the unit.
DEFROST
Damper defrost system.
DEHUMIDISTAT
Adjustable Internal Dehumidistat.
CASE
Twenty gauge prepainted galvanized steel (G60) for superior corrosion resistance.
Insulated to prevent exterior condensation. Drain connections 2 - 1/2" (12 mm) OD.
CONTROLS
ControlAir 15 - Standby/ON mode, 20 ON/ 40 OFF mode (each mode has 5 speeds).
Control pad can be removed from HRV and remotely mounted.
Weight 106 lbs. (48 kg) Shipping Weight 108 lbs. (49 kg)
OPTIONAL MAIN CONTROLS
99-350 Lifestyle Ventilation Control 7/24 programmable ventilation, (3 wire) 20
gauge wire (min.) 100' length
99-109 Air Sentry Air Quality Monitor designed to accept remotely mounted
Control Pad, (3 wire) 20 gauge wire (min.) 100' length
99-250 Ventilation Dehumidistat designed to accept remotely mounted Control
Pad, (4 wire) 20 gauge wire (min.) 100' length
OPTIONAL TIMERS
99-104 Digital Electronic Timer - initiates high speed ventilation for 20, 40 or 60
minutes, (3 wire) 20 gauge wire (min.) 100' length
99-101 Crank Timer - Initiates high speed ventilation for up to 60 minutes, (2 wire)
20 gauge wire (min.) 100' length
OPTIONAL ACCESSORIES
99-163 Duct Heater w/ Electronic SCR Thermostat, 1 Kw, 6" (150 mm)
99-164 Duct Heater w/ Electronic SCR Thermostat, 2 Kw, 6" (150 mm)
99-185 Weatherhoods, Two - 6" (150 mm) c/w 1/4" (6 mm) mesh screen
WARRANTY
Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement
parts warranty.

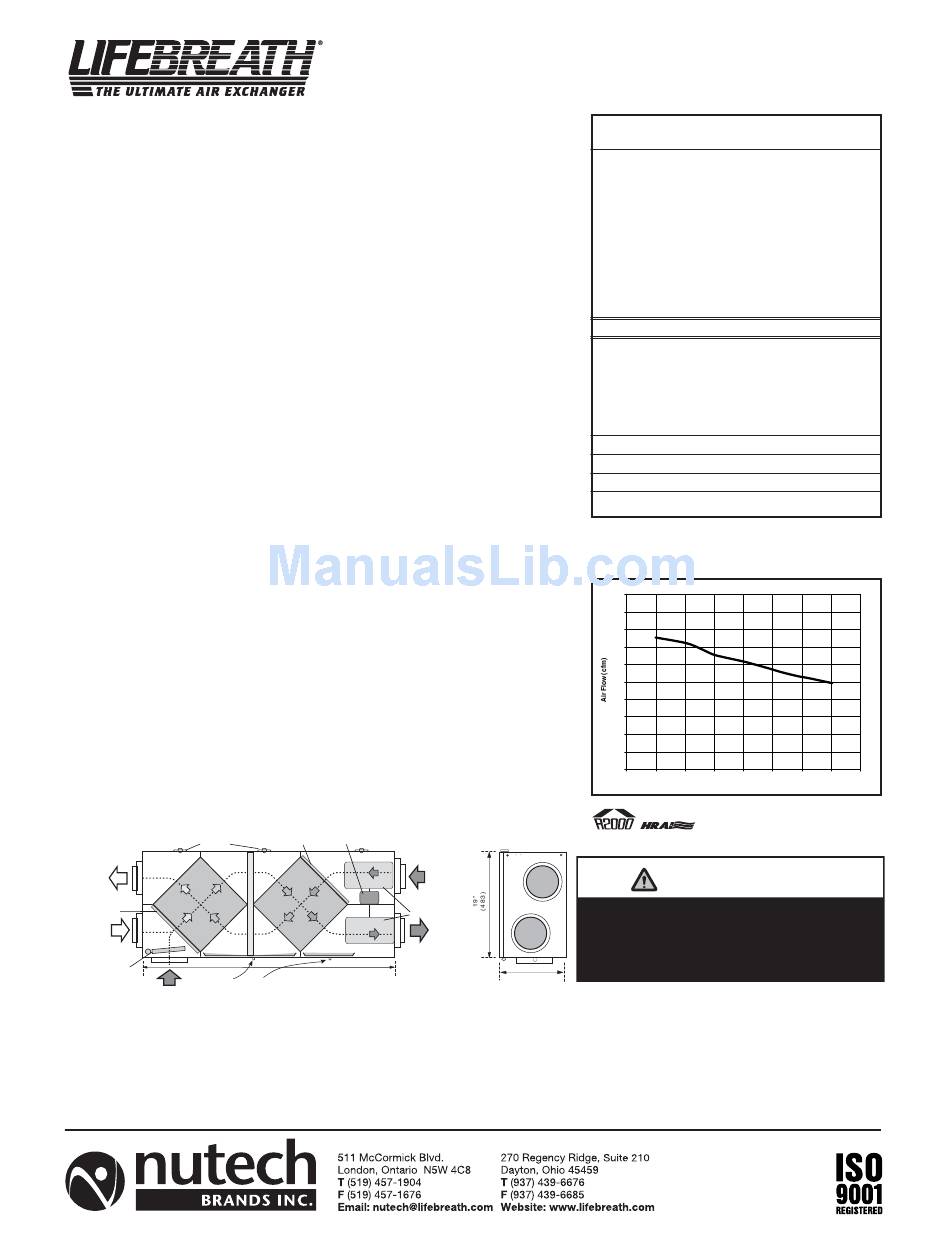

DIMENSIONS 195ECM
METAL CLASPS
STALE AIR
TO OUTSIDE
Por ts
6" (150 mm)
FILTER
FRESH AIR
FROM OUTSIDE
DEFROST
DAMPER
CONDENSATE
DRAINS
DEFROST AIR
FROM INSIDE
Date: ___________________________________________
Tag: _____________________Qty:___________________
Project: _________________________________________
Engineer: _______________________________________
inches (mm)
FILTER MOTOR
STALE AIR
FROM INSIDE
Por ts
7" (178 mm)
BLOWERS
FRESH AIR
TO INSIDE
49 "
(1245)
*NOTE: Front clearance of 25 inches (635 mm)
is recommended for servicing unit.
Net supply air flow in cfm (L/s) against external static pressure
E.S.P
(external static pressure)
@ 0.1" (25 Pa)
@ 0.2" (50 Pa)
@ 0.3" (75 Pa)
@ 0.4" (100 Pa)
@ 0.5" (125 Pa)
@ 0.6" (150 Pa)
@ 0.7" (175 Pa)
Max. Temperature Recovery
Sensible Effectiveness
@ 114 cfm (54 L/s)
*Sensible Efficiency
@ 114 cfm (54 L/s)
*Sensible Efficiency
@ 119 cfm (56 L/s)
VAC @ 60HZ
WATTS / Low speed
WATTS / High speed
Amp rating
*Sensible Efficiency – thermal **Latent Efficiency – moisture
Note: Effectiveness - based on temp. differential between the 2 airstreams
Efficiency – takes into account all power inputs
220
200
180
160
140
120
100
80
60
40
20
0 0.1
ATTENTION
The ECM motor produces a tone that some may
find objectionable. We
installation of the optional 99-SILENCER6 on the
'Stale Air from Inside' and 'Fresh Air to Inside'
ducts.
14 3/4"
(375)
Contractor: ______________________________________
Supplier: ________________________________________
Quote#: _________________________________________
Submitted by: ____________________________________
Model 195ECM
Performance
[cfm (L/s)]
171 (81)
164 (77)
156 (74)
143 (67)
134 (63)
126 (59)
119 (56)
88%
32°F (0°C) 88%
32°F (0°C) 81%
-13°F (-25°C) 77%
120
34
95
1.4
0.2 0.3 0.4 0.5 0.6 0.7 0.8
Static Pressure (in w.g.)
All units conform to
CSA and UL standards.
recommend the
TI-195ECM
