Removing the Hard Drive

1. Follow the procedures in
2. Remove battery
3. To remove the hard drive:

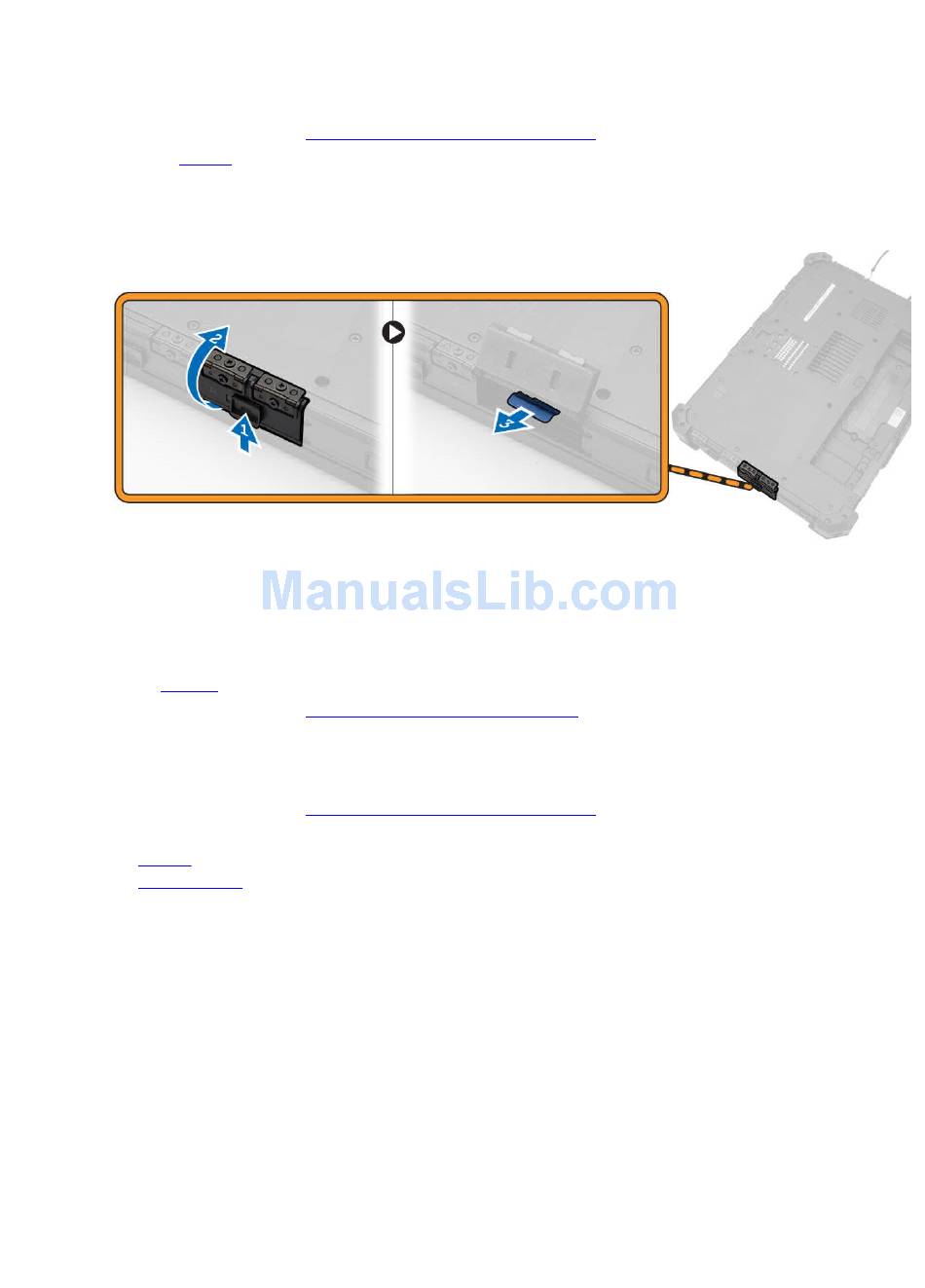

a. Unlock the hard-drive press latch door and lift it upwards to open it [1,2].
b. Pull the tab to pull the hard drive out of the computer [3].

Installing the Hard Drive

1. Slide the hard drive into its place on the computer.
2. Close the hard-drive bay press latch door.
3. Install battery.
4. Follow the procedures in

Removing the System Fan

1. Follow the procedures in
2. Remove:
a. battery
b. bottom cover
3. To remove the system fan:
a. Disconnect the system fan cable from the system board [1].
b. Remove the screws that secure the system fan to the computer chassis [2].
c. Lift and remove the system fan from the computer chassis [3].
12
Before Working Inside Your
After Working Inside Your
Before Working Inside Your
Computer.
computer.
Computer.
