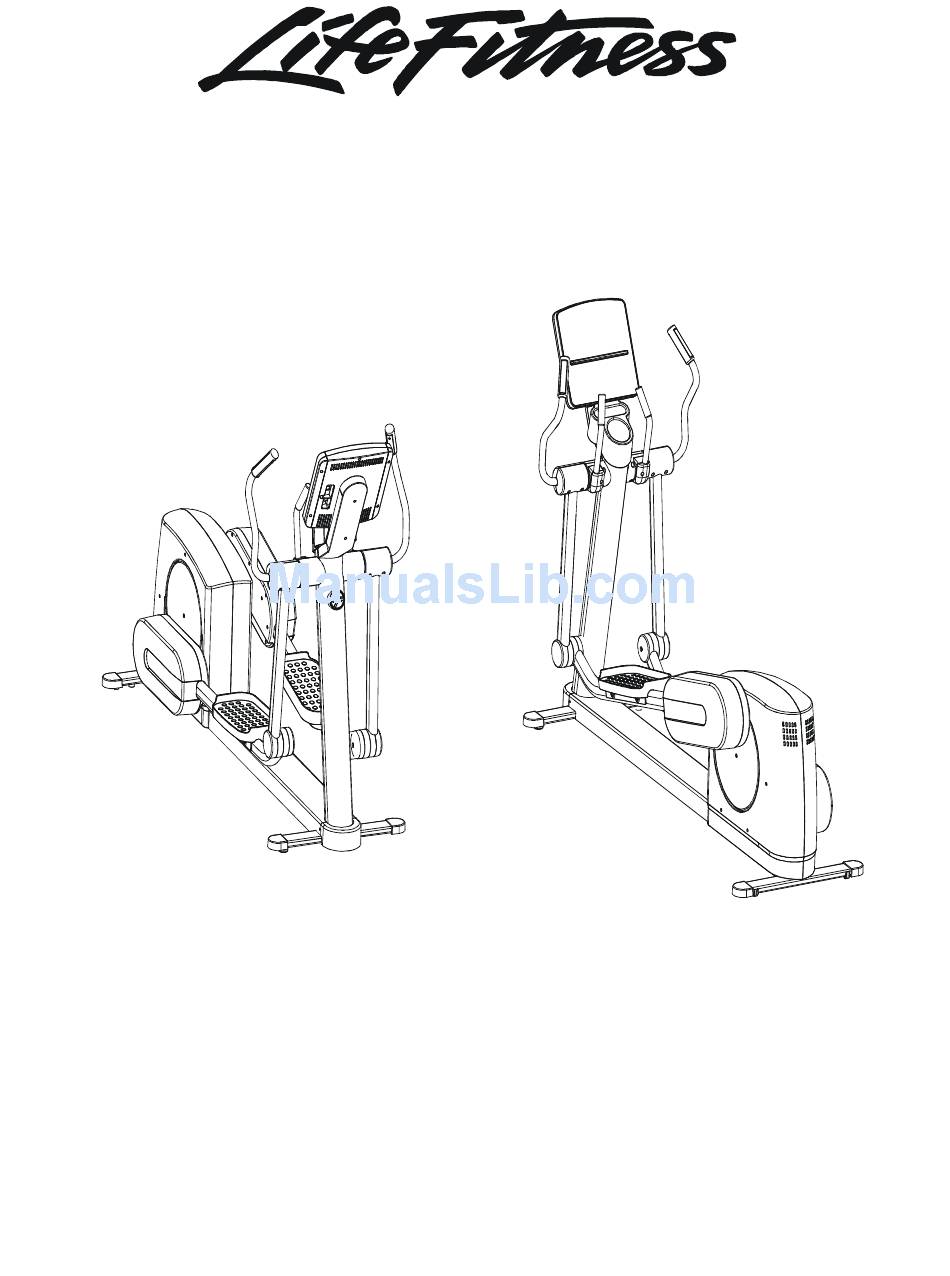

- Page 1 ARCTIC SILVER CROSS TRAINER 95XEZ-0XXX-01 Customer Support Services PARTS MANUAL rev 31 Jul 2008, A.D.
- Page 2 ASSEMBLY CONSISTS OF: 1) COAX CABLE 2) POWER EZTENSION CABLE 3) ACCESS PANEL BRACKET 4) F TYPE CONNECTOR 5) PLASTIC GROMMET (QTY. 2) CRANKSHAFT W/BEARINGS KIT HARDWARE BAG 95XEZ-0XXX-01 S/N WZX100000 and up M051-00K62-A072 0017-00008-0204 0017-00008-0205 0017-00008-0206 M051-00K62-A060 GK62-00002-0018 GK62-00002-0019...
-
Page 3: Table Of Contents
ARCTIC SILVER 95XEZ 95XEZ-0XXX-01 CONTENTS S/N WZX100000 and up Page Console Support and Deadshaft Covers ...4 Handlebars and Bullhorns ...5 Console and Related Components ...6 Entertainment TV Console...7 Connector Bracket ...8 Entertainment Mounting Bracket ...9 Upper Frame Hardware ...10 Rocker Arms and Pedal Levers ...11 Crank Cover and Lower Caps ...12... -
Page 4: Console Support And Deadshaft Covers
Console Support Shroud 0K62-01023-0000 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 95XEZ-0XXX-01 S/N WZX100000 and up Right Bullhorn Cover 0K62-01007-0001 Left Bullhorn Cover 0K62-01008-0001 2-Outside Front Deadshaft Cover 0K62-01013-0000 2-Outside Rear Deadshaft Cover... -
Page 5: Handlebars And Bullhorns
Bug Adaptor 0K62-01034-0000 *Right Bullhorn Assembly consists of: AK62-00057-0001 Bullhorn, 0K62-01136-0000 Grip and 0K62-01199-0000 Gasket Left Bullhorn Assembly consists of: AK62-00058-0001 Bullhorn, 0K62-01136-0000 Grip and 0K62-01199-0000 Gasket 95XEZ-0XXX-01 S/N WZX100000 and up *Right Bullhorn AK62-00053-0001 Left Bullhorn AK62-00054-0001 HR Sensor Kit... -
Page 6: Console And Related Components
Battery Door 0K62-01026-0000 CONS-ASSY: 95XEZ; ENG CONS-ASSY: 95XEZ; GER CONS-ASSY: 95XEZ; SPN CONS-ASSY: 95XEZ; JAP CONS-ASSY: 95XEZ; FRN CONS-ASSY: 95XEZ; ITL CONS-ASSY: 95XEZ; DUT CONS-ASSY: 95XEZ; POR CONS-ASSY: 95XEZ; TUR 95XEZ-0XXX-01 S/N WZX100000 and up Console Case Back AK62-00142-0000 Screw 0017-00101-1242... -
Page 7: Upper Frame Hardware
Screws 0017-00101-1796 Inside Deadshaft Cover Screws 0017-00101-1796 (2 per side) Items Not Shown: Accessory Tray, 0K62-01022-0000 Mounting Screws (2), 0017-00101-1846 95XEZ-0XXX-01 S/N WZX100000 and up Handlebar Mounting Screws 0017-00101-1791 (3 per side) Bullhorn Mounting Screw Kit (includes 4 screws) GK62-00002-0042... -
Page 8: Rocker Arms And Pedal Levers
Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad LF Bug Medallion Assy. AK58-00245-0000 Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly AK62-00021-0000 Left Pedal Lever Assembly AK62-00020-0000 95XEZ-0XXX-01 S/N WZX100000 and up... -
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER 95XEZ Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 S/N WZX100000 and up Stabilizer Caps 4 - 0K62-01003-0000 95XEZ-0XXX-01 Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
0017-00101-1796 Ladder Frame Cover w/decal AK62-00106-0001 4 - Mounting screws 0017-00101-1795 Shroud Panel 0K62-01002-0003 Mounting screws (2 per side) 0017-00101-1795 95XEZ-0XXX-01 Rear Shroud Assembly AK62-00223-0000 Mounting screws (2 per side) 0017-00101-1796 Wheel/Bracket Assy. AK62-00102-0000 Mounting Screws ( 3 per assy.) -
Page 11: Pedal Lever Assembly Components
0017-00103-0338 Roller w/bearing AK62-00196-0001 Shaft Collar 0K62-01065-0000 Washer 0017-00104-0474 Brass Washer Anti-Lift Track 0K47-01104-0000 Anti-Lift Roller Screws (2) 0K62-01191-0000 95XEZ-0XXX-01 S/N WZX100000 and up Washer 0017-00104-0479 0017-00103-0333 Crank Extension Mounting Bolt 0017-00101-1907 Roller Extrusion AK62-00197-0000 Screws (4) 0017-00101-1789 0K62-01208-0000 0017-00101-1836... -
Page 12: Pcb, Battery, Reed Switch & Bracket
PCB, Battery, Reed Switch & Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 95XEZ-0XXX-01 S/N WZX100000 and up Grommet (4) 0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch Mounting screws (2) 0017-00101-1794... -
Page 13: Bearing-Insert Assembly - Ak62-00299-0000
2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges 4- nuts and washers 95XEZ-0XXX-01 S/N WZX100000 and up Bearing Flanges (2) 0K62-01220-0000 1” Bearing 0K62-01221-0000... -
Page 14: Crank Arm Pulley Assembly
Crank arm mounting bolt 0017-00101-1849 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly AK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 95XEZ-0XXX-01 S/N WZX100000 and up Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001 Crankshaft Plate Mounting screws (4) 0017-00101-1834... -
Page 15: Drive Module
See Page 14 for breakdown Crankshaft 0K62-01222-0000 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft 0K62-01223-0000 Resistor Assembly Includes Power Control Cable AK62-00260-0000 95XEZ-0XXX-01 S/N WZX100000 and up Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Right Crank Arm Weld Assembly AK62-00204-0000 Poly-V Metric Pulley... -
Page 16: Drive Module Hardware
ARCTIC SILVER 95XEZ Drive Module Hardware Crankshaft 0K62-01222-0000 Square Machine Key (2) 0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 95XEZ-0XXX-01 S/N WZX100000 and up Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1849 0017-00103-0334 Machine Key 0K53-01183-0000 Bearing-Insert... -
Page 17: Cables
RPM_REED FIELD BLK/PURPLE 13POS.KK-156 Upper Console Board A084-92219-A016 START START 17POS. LOWER KEYPAD 19 POS. UPPER KEYPAD 95XEZ-0XXX-01 S/N WZX100000 and up 3 POS. MINI FIT N.C. N.C. Vbat MAGNET REED SWITCH Main Cable AK62-00093-0000 Lower Console Cable AK63-00038-0000 24POS. MICROFIT 24POS. - Page 18 0K62-01011-0000 0K62-01012-0000 0K62-01013-0000 0K62-01022-0000 0K62-01023-0000 0K62-01026-0000 0K62-01030-0000 0K62-01034-0001 0K62-01136-0000 0K62-01199-0000 AK32-00020-0002 AK32-00078-0001 AK32-00133-0000 AK32-00147-0000 AK58-00245-0000 AK62-00054-0001 AK62-00057-0001 AK62-00058-0001 AK62-00062-0001 AK62-00086-0000 AK62-00087-0000 AK62-00123-0000 AK62-00142-0000 AK62-00152-0001 AK62-00210-0000 AK62-00235-0000 AK62-00236-0000 M051-00K62-A149 M051-00K63-A102 +A084-92219-A020 +AK62-00053-0001 +AK62-00234-0000 +AK62-00315-0001 +GK62-00002-0005 +GK62-00002-0042 95XEZ-0XXX-01 S/N WZX100000 and up...
