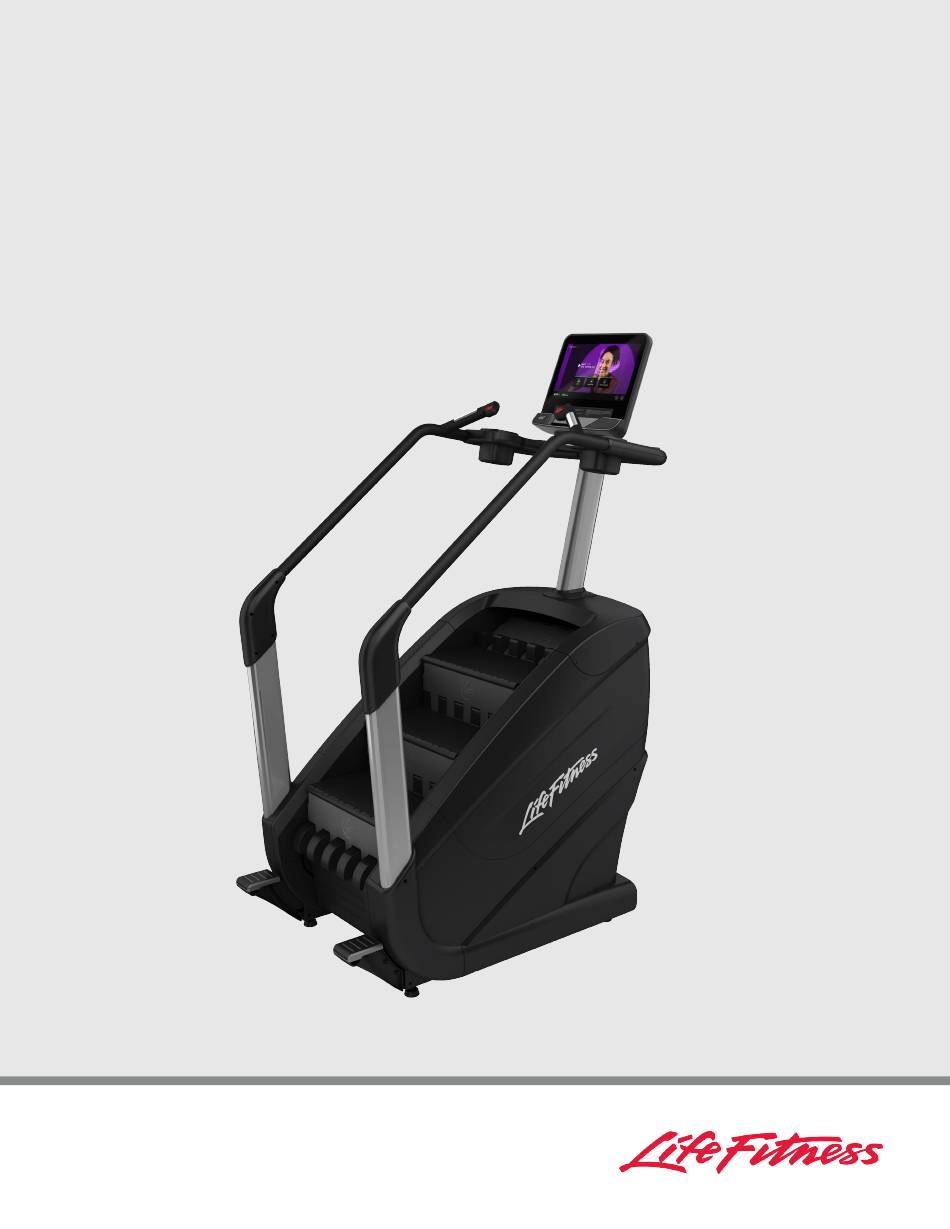

- Page 1 Life Fitness PowerMill™ Climber Assembly Instructions 95PS-XX03, 95PS-XX04, 95PS-XX05 Assembly Instructions 1015938-0001 REV AB...
- Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD 10601 W Belmont Ave C/Frederic Mompou 5,1º1ª 26/F, Global Trade Square Franklin Park, IL 60131 U.S.A. 08960 Sant Just Desvern Barcelona...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Copyright 2023, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Safety Instructions
• Life Fitness Family of Brands does not warrant nor guarantee that component parts used in the manufacture of products offered under the Life Fitness Family of Brands are latex-free. Users of these products must take all necessary precautions to prevent accidental contact that could lead to an adverse latex reaction. - Page 7 • Unlike bikes, cross-trainers, or the traditional paddle stairclimbers, this is a motorized product. This motorized product causes stair steps to descend at variable rates and therefore operates on different planes simultaneously. While operating the product during a typical workout, the user is forced to fully concentrate on coordinating his or her efforts on the moving stairs.
-
Page 8: Consignes De Sécurité
• Life Fitness recommande de débrancher le produit quand il n’est pas utilisé. Débranchez-le systématiquement après son utilisation et avant l’ajout et le retrait de pièces. - Page 9 à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness Family of Brands n’est pas responsable des étiquettes manquantes ou endommagées.
-
Page 10: Electrical Power Requirements
Electrical Power Requirements The PowerMill with the Integrity and Discover consoles require an AC power supply according to the electrical configurations listed in the chart below. • Units with Integrity consoles can be used with an optional attachable TV. Use of an attachable TV requires an external power supply. -
Page 11: Immobilization Method - Integrity Sl - Powermill
Immobilization Method - Integrity SL - PowerMill The purpose of immobilizing the PowerMill is to prevent unauthorized use. The system causes immobilization of the PowerMill when activated. 1. Enter Manager's Configuration: • Press the LEVEL UP / DOWN arrow keys in the following sequence: UP, DOWN, UP, DOWN. •... -
Page 12: Immobilization Method - Discover Se3 / Se3
Immobilization Method - Discover SE3 / SE3 HD / ST The purpose of immobilizing the unit is to prevent unauthorized use. The system causes immobilization of the unit when activated. 1. Tap the LANGUAGE icon to access the SELECT LANGUAGE screen. 2. -
Page 13: Immobilization Method - Discover Se4
Immobilization Method - Discover SE4 Console The purpose of immobilizing the unit is to prevent unauthorized use. The system causes immobilization of the unit when activated. 1. Tap the LANGUAGE icon on the ATTRACT SCREEN to access the SELECT LANGUAGE screen. (Language Icon position may vary on consoles.) 2. - Page 14 6. UNIT IMMOBILIZED BY MANAGER message appears on screen. 7. Tap the upper part of the ATTRACT SCREEN in the following sequence: Upper-Left, Upper-Right, Upper-Left, and Upper-Right to enter SYSTEM OPTIONS. 8. Tap the Immobilize Unit icon to disable. Page 12 of 30...
-
Page 15: Console
2. Product Overview Product Features Item Description Qty. Console Stop Keypads Contact Heart Rate Sensors Cup Holder Step Assist Wheel Leg Leveler Decrease Speed Keypad Increase Speed Keypad Where to Place Unit Following all Safety Instructions, move the unit to the location in which it will be used. See Specifications for the dimensions of the footprint. -
Page 16: How To Stabilize Unit
How to Stabilize Unit After placing the unit in position, check the unit’s stability by attempting to rock it. Any slight rocking indicates that the unit must be leveled. There are four stabilizing feet on the unit. Check the front and back stabilizing feet to determine which foot does not rest fully on the floor. -
Page 17: Assembly
3. Assembly Hardware and Required Tools Hardware Item Description Qty. M8 X 35 mm Socket head cap screw Grommet M10 X 20 mm Hex head cap screw M8 X 16 mm Button head cap screw M8 X 18 mm Hex washer head screw M4 X 16 mm Phillips pan head screw M4 X 12 mm Phillips pan head screw M5 X 14mm Phillips pan head screw (Discover or Integrity Console) -
Page 18: Install Step Assists
Install Step Assists Item Description Qty. Step Assist, Left Step Assist, Right M8 X 35mm Socket Head Cap Screw 18-20 ft. lbs. (24.4-27.1 Nm) Install Left and Right Rear Uprights Item Description Qty. Rear Upright, Left M10 X 20m Hex Head Cap Screw Rear Upright, Right 28-32 ft. -
Page 19: Install Console Support Weldment
Install Console Support Weldment 1. Place top cap gasket on console support weldment. 2. Route cables up through console support weldment. 3. Secure console support weldment to base. Item Description Qty. Console Support Weldment Top Cap Gasket M8 X 18mm Hex Washer Head Screw Cables 18-20 ft. -
Page 20: Install Handlebars
Install Handlebars 1. Join the left and right rear handlebars to left and right "L" tubes (front handlebars). Secure using screws. Item Description Qty. "L" Tube (Front Handlebar), Left Handlebar (Rear), Left "L" Tube (Front Handlebar), Right Handlebar (Rear), Right M8 X 16mm Button Head Cap Screw 16 - 18 ft. -
Page 21: Install Accessory Trays
Install Accessory Trays Item Description Qty. M4 X12mm Phillips Pan Head Screw Accessory Tray, Top Right Accessory Tray, Bottom Right Accessory Tray, Top Left Accessory Tray, Bottom Left 10 -12 in. lbs. (1.1 - 1.3 Nm) Attach Handlebar Covers Item Description Qty. -
Page 22: Base To Console Cable Connections
Base to Console Cable Connections Integrity X/C Item Description Console to Base Power Base Signal Left Handlebar Keypad Switch Lifepulse Right Handlebar Keypad Switch Discover SE3 / SE3HD / ST Item Description Qty. CAT5e Ethernet 24V DC Coax, RG6, Base Ground Wire Integrity SL Item... - Page 23 Discover SE4 Item Description Ethernet STB HDMI STB IR CSAFE Base Power Base Signal (Lifepulse, Base Switches) Base Comm RF Coax Page 21 of 30...
-
Page 24: Attach Console And Rear Console Shroud Assembly
Attach Console and Rear Console Shroud Assembly Integrity (SL / X / C) Discover (SE4 / SE3HD / ST / SE3) Discover SE4 Only NOTE: Do not install the screw in the location shown (next to arrow) if the Discover SE4 console has a Set Top Box Sync (STB) receiver! The screw will hit the STB receiver inside of the console. -
Page 25: Attach Access Panels
Attach Access Panels Item Description Qty. M4 X 12mm Phillips Pan Head Screw Access Panel, Left Access Panel, Right 10 - 12 in. lbs. (1.1 - 1.3 Nm) Tighten Hardware and Verify Leg Leveler Position Tighten all hardware and make sure all leg levelers are down. Item Description Qty. -
Page 26: Remove Line Cord Bracket And Secure Power Cord
Remove Line Cord Bracket and Secure Power Cord 1. Remove line cord bracket and screw. Item Description Qty. Bracket, Line Cord M4 X 12mm Phillips Pan Head Screw 2. Plug in power cord and reattach line cord bracket and screw. Item Description Qty. -
Page 27: Service And Technical Data
4. Service and Technical Data Preventive Maintenance Tips The following preventive maintenance tips will keep the product operating at peak performance: • Locate the product in a cool, dry place. • Clean the top surface of the steps regularly. • Clean the display console and all exterior surfaces with an approved or compatible cleaner (see Approved Cleaners) and a microfiber cloth. -
Page 28: Preventive Maintenance Schedule
Preventive Maintenance Schedule Item Weekly Monthly Quarterly Biannually Comments Console Overlays Clean Inspect Cup Holder Clean Inspect Console Mounting Inspect Bolts Frames Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust Side Hand Rails Clean Inspect Steps... -
Page 29: How To's
Belt Inspection - Brake and Drive Belts The PowerMill has two belts. A brake belt and a drive belt. Item Description Brake belt Drive belt Inspect belts for cracking or wear. Belt Cracking If cracks appear 2 cm or less apart, then 80% of the belt life is gone and the belt should be replaced. Belt Wear (Material Loss) If material loss is occurring as shown above, the belt should be replaced. -
Page 30: Specifications
5. Specifications Specifications Designed Use Heavy / Commercial Maximum User Weight 400 lbs. / 181 kg Ceiling Height Minimum 9 ft. / 2.7 m Usable Step Surface Area 205 sq. in. (520.7 cm) Power Requirements 100 - 240 volts, 50/60 Hz, 5 Amps Resistance Levels 26 (0-25) Heart Rate Monitoring... -
Page 31: Getting Started What We Will Do To Correct Covered Defects
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 32: Changes In Warranty Not Authorized
Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
