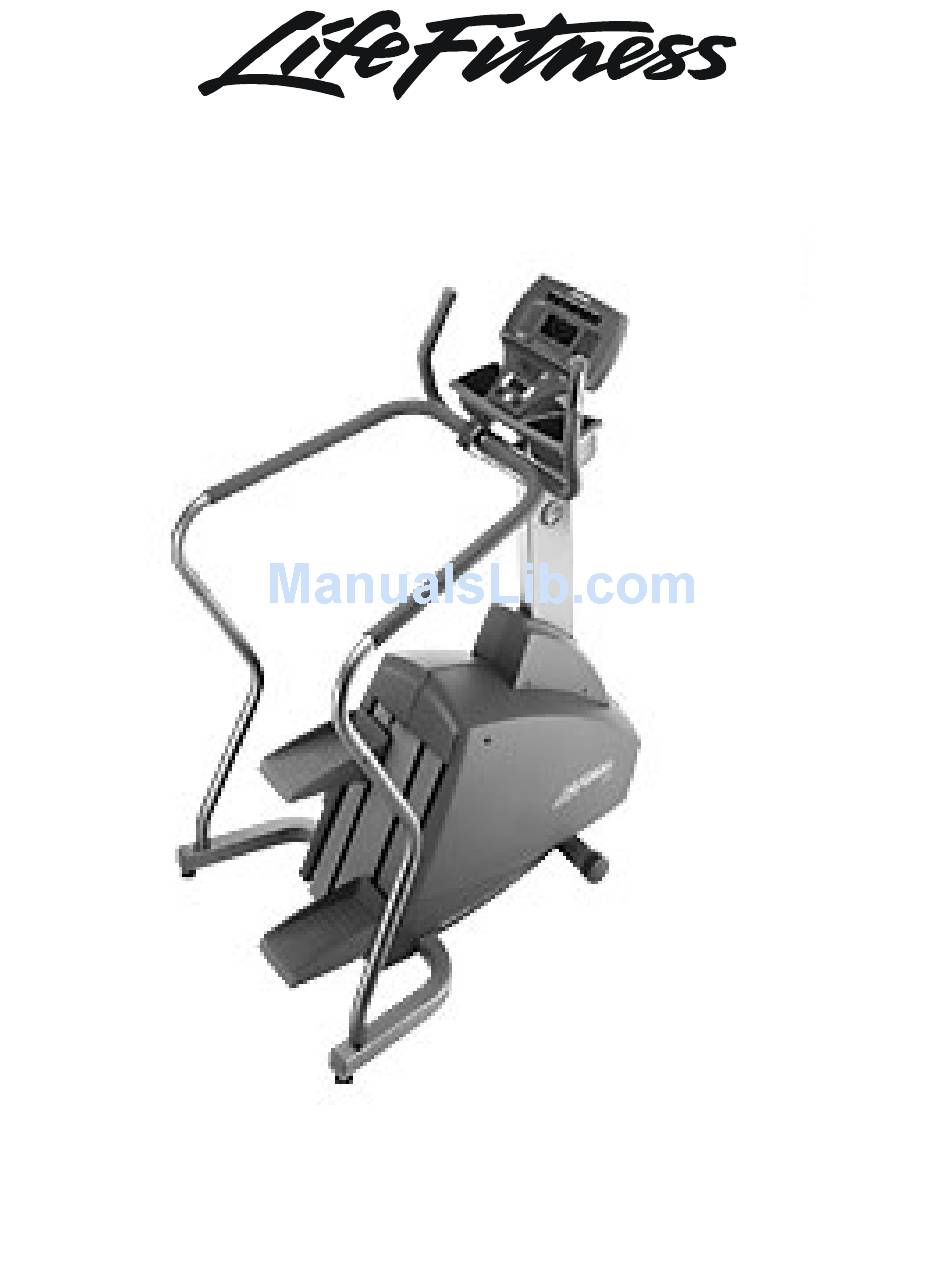

- Page 1 ARCTIC SILVER 95SWEZ Stairclimber Customer Support Services PARTS MANUAL rev 14 Jul 2008...
-
Page 2: Hardware Bag
ARCTIC SILVER 95SWEZ REFERENCES OPERATION MANUAL HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN ACCESS PANEL ASSEMBLY CONSISTS OF: 1) COAX CABLE 2) POWER EXT. CABLE 3) MOUNTING PLATE 4) F TYPE CONNECTOR SERVICE MANUAL... -
Page 3: Table Of Contents
ARCTIC SILVER 95SWEZ 95SWEZ-0xxx-01 CONTENTS S/N SZW100000 and up Page Console Components ...4 Entertainment TV Console...5 Connector Bracket ...6 Entertainment Mounting Bracket ...7 Frame Components ...8 Shrouds and Pedal Tube ...9 Pedal Assembly ...10 Clutch/Shaft/Pulley Assembly ...11 Left Clutch Assembly ...12 Crossover Pulley Assembly ...13... -
Page 4: Console Components
ARCTIC SILVER 95SWEZ Console Components PROG CONS PCB ASSY A084-92219-A021 Screw 0017-00101-1650 PCB-ASSY: CONSOLE; LOWER B084-92222-B000 CBL-ASSY: CONSOLE; LOWER AK63-00038-0000 AK47-00147-0001 CONS-ASSY: 95SEZ; ENG AK47-00147-0003 CONS-ASSY: 95SEZ; GER AK47-00147-0004 CONS-ASSY: 95SEZ; SPN AK47-00147-0006 CONS-ASSY: 95SEZ; JAP AK47-00147-0007 CONS-ASSY: 95SEZ; FRN AK47-00147-0008 CONS-ASSY: 95SEZ;... -
Page 5: Frame Components
ARCTIC SILVER 95SWEZ Frame Components Console Mounting Screws 0017-00101-1744 Accessory Tray 0K63-01030-0001 Mounting Screws 0017-00101-1744 Mono-Column AK47-00068-0003 Bull Horn w/HR - RT AK47-00110-0001 Bull Horn w/HR - LT AK47-00110-0002 Wheel w/Bearings Handlebar AK63-00016-0000 Hex Screws(2) 0017-00101-0933 95SWEZ-0xxx-01 S/N SZW100000 and up... -
Page 6: Shrouds And Pedal Tube
ARCTIC SILVER 95SWEZ Shrouds and Pedal Tube Mono-Column Shroud AK47-00082-0001 Phillips Pan Screw(2) 0017-00101-1769 Phillips Pan Screws(2) 0017-00101-1764 Center Shroud 0K47-01165-0000 Decal; ISO Track 0K47-01181-0000 Phillips Pan Screw(9) 0017-00101-1769 Track Cover Bracket Right Shroud 0K47-01146-0001 AK47-00111-0007 Bracket Screw 0017-00101-1763 Track Cover... -
Page 7: Pedal Assembly
ARCTIC SILVER 95SWEZ Pedal Assembly Side Track Roller 0K47-01084-0000 Roller Sleeve(2) 0K47-01138-0000 Roller Sleeve (2) 0K47-01136-0000 Track Roller(4) w/Busshing Assy AK47-00087-0000 Thin Lock Nut(2) 0017-00103-0324 Low Head Terminator Screw(2) 0K47-01153-0000 Pedal Bracket Assembly w/o Rollers AK47-00086-0002 Pedal Assembly LT w/Rollers... -
Page 8: Clutch/Shaft/Pulley Assembly
ARCTIC SILVER 95SWEZ Clutch/Shaft/Pulley Assembly Clutch/Shaft/Pulley Assy. AK47-00006-0000 E-ring 0017-00100-0107 Special Thrust Washers Hardened Thrust Washers 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000 95SWEZ-0xxx-01 S/N SZW100000 and up Special Thrust Washer(3) 0K47-01104-0000... -
Page 9: Left Clutch Assembly
ARCTIC SILVER 95SWEZ Left Clutch Assembly Hardened Thrust Washers(3) 0K47-01105-0000 Special Thrust Washer E-Ring Special Hardened Thrust Thrust Washer Washer 95SWEZ-0xxx-01 S/N SZW100000 and up Left Clutch/Sprocket Assy. AK47-00043-0002 E-Rings(2) 0017-00100-0107... -
Page 10: Crossover Pulley Assembly
ARCTIC SILVER 95SWEZ Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Lock Nut 0017-00103-0025 Magnet 118E-00001-0124 Screw 0017-00101-1148 Tensioning Bolt 0017-00101-0928 Frame 0017-00103-0026 Intermediate Pulley Bracket 0K47-01052-0000 Reed Switch Bolts(2) 118E-00001-0140 0017-00101-1048 95SWEZ-0xxx-01 S/N SZW100000 and up Washer 0017-00104-0043 Bolt 0017-00101-1717... -
Page 11: Alternator Assembly
ARCTIC SILVER 95SWEZ Alternator Assembly Locking Nut 0017-00103-0117 Alternator Strap 0K47-01053-0000 Alternator Belt 0K47-01106-0000 Alternator w/Flywheel Alternator Flywheel AK47-00038-0000 0K47-01069-0000 Washer 0017-00104-0043 95SWEZ-0xxx-01 S/N SZW100000 and up Alternator Pivot Bolt 0017-00101-0962 Tensioning Bracket Bolt 0017-00101-0986... -
Page 12: Guide Rollers
ARCTIC SILVER 95SWEZ Guide Rollers Return Spring Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Pulley Spring Shaft 0K47-01154-0000 Bolt 0017-00101-1048 0017-00103-0025 Idler w/Bearing(2) AK63-00008-0000 Bolt - 0017-00101-1722 Nut - 0017-00103-0025 95SWEZ-0xxx-01 S/N SZW100000 and up Belt Idler Pulley(2) 0017-00009-1147 Bolt(2) 0017-00101-1098... -
Page 13: Power Control Board And Resistor
ARCTIC SILVER 95SWEZ Power Control Board & Resistor Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92239-B000 Phillips Screw(4) 0017-00101-0823 95SWEZ-0xxx-01 S/N SZW100000 and up Resistor Assembly AK47-00037-0000 PCB Bracket 0K47-01087-0000... -
Page 14: Polar Receiver Assembly
ARCTIC SILVER 95SWEZ Polar Receiver Assembly Electrode, Bottom AK47-00061-0001 Screws(2) 0017-00101-1277 Screw 0017-00101-1844 0K63-01114-0001 Electrode, Top AK47-00060-0001 Polar Receiver SK40-00045-0001 Screw 0017-00101-1761 95SWEZ-0xxx-01 S/N SZW100000 and up Polar Cap 0K47-01075-0002 Isolator 0K36-01059-0002... -
Page 15: Cables
ARCTIC SILVER 95SWEZ Cables Description Domestic 120/60 Battery Charge w/Cord Universal Battery Charger w/o Line Cord Line Cord 220V/60Hz Line Cord 100V/50Hz Line Cord 240+ Line Cord 220V/50Hz Line Cord 200V/50Hz Line Cord 230V/50Hz 95SWEZ-0xxx-01 S/N SZW100000 and up Part Number...
