Summary of Contents for Powr-Flite PF28SV

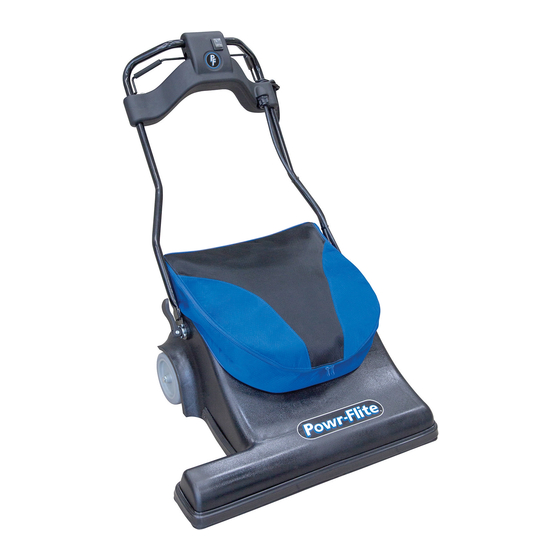

- Page 1 OPERATOR’S MANUAL WIDE AREA SWEEPER VACUUM PF28SV WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © PF28SV-MAN 06/2021 Tacony Corporation, All rights reserved Save These Instructions...
- Page 2 Congratulations on your purchase of a Wide Area Sweeper Vacuum. You are now equipped to handle any and all commercial carpet cleaning jobs. Your new unit is a high quality, precision- made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This vacuum is not a household appliance, intended for commercial use only. READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense,staying alert, and knowing how your unit works. - Page 4 This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 5: Handle Adjustment
HANDLE ADJUSTMENT 1. Using the wing nuts (Fig. 1), adjust the handle length to a comfortable working position. Tighten all wing nuts. 2. Loosen the handle lock levers (Fig. 2) on both sides of the unit and adjust the handle to a comfortable operation height. -
Page 6: Brush Height Adjustment
BRUSH HEIGHT ADJUSTMENT 1. This machine has 5 brush adjustment levels. 2. To lower brush height level: depress the lower pedal, Fig 8., down and release one notch of ratchet at a time to desired carpet height. Fig. 10 3. To operate brush and vacuum motor squeeze the brush start triggers, Fig. -
Page 7: Machine Maintenance
1. Detach belt cover by removing the 4 belt cover screws as shown in Fig. 13. This will expose the belt connected to the brush roll Fig. 14. Fig. 17 5. Inert the new brush roll. Ensure the belt loops around the grooved end of brush roll and that there is tension in the belt Fig 18. - Page 8 FOR BEST PERFORMANCE • Keep machine and all accessories clean and in good operating condition. • Change vacuum bags and filters as recommended to maintain optimum cleaning efficiency. • Always use genuine bags, filters and parts, as use of other products may result in poor cleaning or filtration performance.
- Page 9 For warranty information go to www.Powr-Flite.com A Tacony Company 3101 Wichita Court • Fort Worth, TX 76140-1755 1-800-880-2913 • Fax: 1-817-551-0719 PF28SV-MAN 06/2021...
