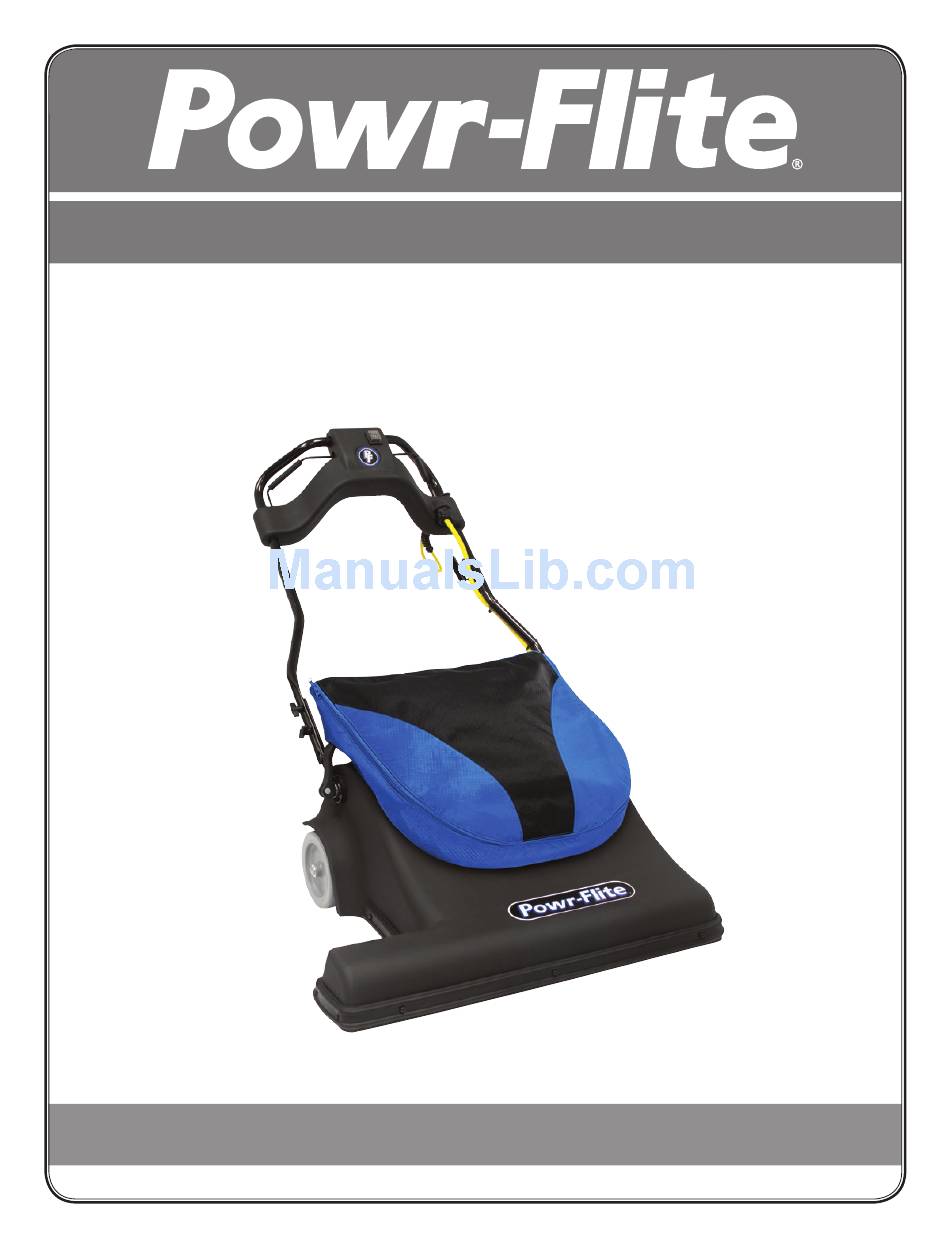

- Page 1 OPERATOR’S MANUAL & PARTS LIST WIDE AREA SWEEPER VACUUM MODEL PF28SV WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved PF28SV-Man 1-2016 Save These Instructions...
-
Page 2: When The Machine Is Delivered
WHEN THE MACHINE IS DELIVERED If machine is damaged, notify the carrier immediately and request an inspection. Be sure to keep the carton, packing inserts, packing lists, and carrier’s receipt until the inspector has verified your claim. CUSTOMER'S RECORD Model Number: ________________________________________________________________________________________ Serial Number: _________________________________________________________________________________________ Date Purchased: _______________________________________________________________________________________... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Save These Instructions This vacuum is not a household appliance, intended for commercial use only. afety arningS and recautionS Read all instructions before using. Save These Instructions. WARNING! Following the cleaning instructions will prolong the life of this vacuum. Warning –... -
Page 4: Grounding Instructions
CONNECT TO A PROPERLY GROUNDED OUTLET ONLY! See Grounding Instructions rounding nStructionS This vacuum must be grounded! Grounding is a safety measure to reduce the risk of electrical shock to the operator should the machine malfunction or stop working. Grounding provides the path of least resistance for electric current and will trip the circuit breaker, stopping the flow of electricity. -
Page 5: Handle Adjustment
HANDLE ADJUSTMENT 1. Using the wing nuts (Fig. 1), adjust the handle length to a comfortable workng position. Tighten all wing nuts. 2. Loosen the handle lock levers (Fig. 2) on both sides of the unit and adjust the handle to a comfortable operation height. 3. -
Page 6: Operation Of Machine
OPERATION OF MACHINE BRUSH ROLL REPLACEMENT 1. Plug power cord into properly grounded power outlet. Brush Roll Replacement for the Wide Area Sweeper 2. To turn on machine, click the ON/OFF switch to the ON position. Tools: NOTE: The vacuum does not turn on until step 3. •... -
Page 7: Machine Maintenance
Inert the new brush roll. Ensure the belt loops around the grooved Install belt cover and secure with previously removed screws. end of brush roll and that there is tension in the belt. The brush should be able to spin without any interference. MACHINE MAINTENANCE CAUTION: Unplug the vacuum cleaner Using the 10mm wrench and Allen wrench, screw in the brush roll... - Page 8 chematicS HOUSING MOTOR AND BRUSH ROLLER X9943 X9942 X9945 X9941 X9947 X9904 X9971 X9948 X9944 X9948 X9919 X9946 X9949 X9972 FAN DUCT BRUSH STRIP X9923 X9974 X9976 X9973 X9977 CHASSIS X9981 X9978 X9899 X9979...
- Page 9 chematicS X9987 HANDLE 19849 X9940 19357 32966 19357 X9983 X9986 X9982 X9984 X9983 X9982 X9988 X9991 X9992...
-
Page 10: Parts List
artS PARTS # DESCRIPTION X9941 MOTOR ASSEMBLY KIT X9942 BRUSH GUARD KIT X9943 FAN CHAMBER KIT X9944 BRUSH ROLLER KIT X9945 MOTOR FAN KIT X9946 BELT COVER KIT X9947 MOTOR COVER KIT X9948 LOCATING PLATE KIT X9949 HOUSING BUMPER KIT X9971 HOUSING BASE KIT X9972... - Page 11 The Limited Warranty The manufacturer warrants to the original purchaser that products manufactured are free from defects, provided such goods are installed, operated and maintained in accordance with written manuals or other instructions for a period of 1 year from date of purchase on workmanship, motor, and parts.
- Page 12 A Tacony Company 3101 Wichita Court • Ft. Worth, TX 76140-1755 1-800-880-2913 • Fax: 1-817-551-0719 • www.Powr-Flite.com...
