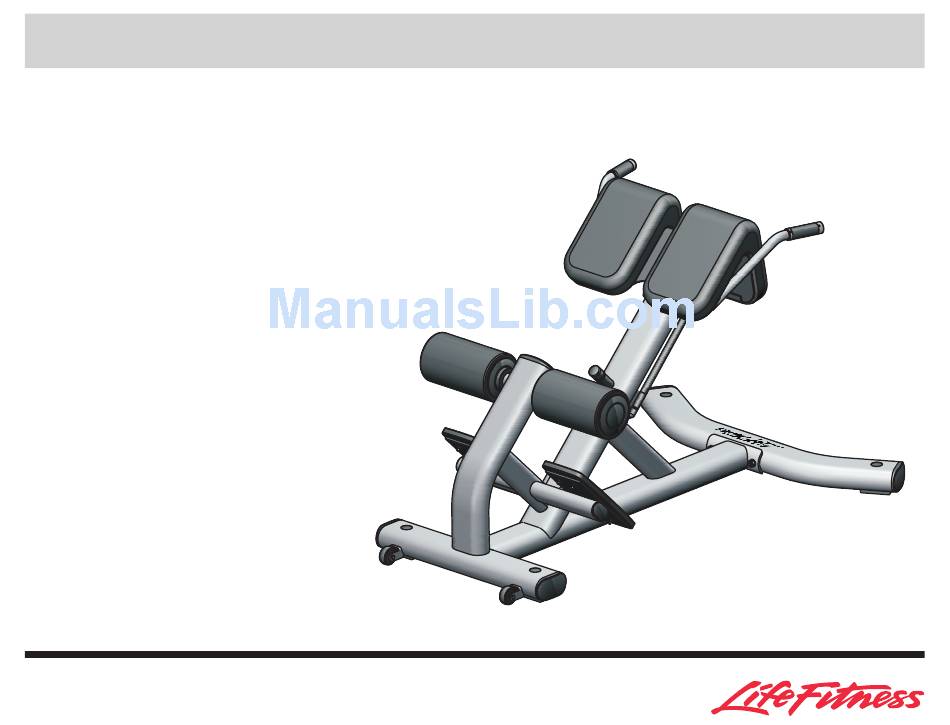

Page 1: Back Extension
Back Extension Owner’s Manual... -
Page 2: Tools Required
Back Extension 1. Assembly Instructions Item Description Front Foot Center Frame M10 x 135mm Bolt Flat Washer Nylock Nut Waist Frame M10 x 25mm Bolt Spacer Hole Plug Roller Pad Plate Bearing Cap Angle Pad Gas Spring Tools Required: 7mm Allen Wrench 17mm Wrench Ratchet 3”... - Page 3 1. Attach the FRONT FOOT (1) to the CENTER FRAME (2) using two M10 x 135mm BOLTS (3), FLAT WASHERS (4), and NYLOCK NUTS (5). Tighten the BOLTS and NUTS securely. 2. With the WAIST FRAME (6) positioned as shown, carefully slide the WAIST FRAME into the CENTER FRAME (2).
- Page 4 Back Extension 1. Assembly Instructions 3. Attach one ROLLER PAD (10) to a CENTER FRAME SHAFT (C) using ONE PLATE (11), M10 x 25mm BOLTS (7) and BEARING CAP (12). Tighten the BOLTS securely. Repeat for the remaining ROLLER PAD (10). 4.
- Page 5 Back Extension 2. Safety & Warranty It is the sole responsibility of the purchaser of Life Fitness products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Life Fitness exercise equipment be informed of the following information prior to its use.
- Page 6 WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE If the Product or any covered part must be returned to a service facility for repairs, Life Fitness, will pay all transportation and insurance charges for the first year. The purchaser is responsible for transportation and insurance charges during the second and third years (if applicable).
- Page 7 Life Fitness Products are designed and manufactured to the highest standards. Life Fitness wants its customers to be completely satisfied with the its Product and will do everything possible under the terms of this warranty to keep its customers secure in knowing they have bought the best!
-
Page 8: General Specifications
Foot platforms are molded rubber with a slip resistant texture. 7. Equipment Anchoring All machines have holes in the feet, which allow for easy anchoring to the floor. Life Fitness recommends that all machines be anchored to the floor to minimize the possibility of tipping. -
Page 9: Product Specifications
Product Specifications Body Weight Back Extension Product # - SBWBE Machine Weight: 140 lbs. Size: in = 54 L x 37 W x 37 H • Adjustable pad support to accommodate users of all sizes. • V-shaped pad design provides greater comfort throughout range of motion. -
Page 10: Maintenance
Back Extension 4. Maintenance ONCE A DAY Wipe down upholstery with a mild soap and water or comparable all purpose cleaner. ONCE A WEEK Visually inspect all hardware for loosening, tampering or wear. Check condition of hand grips. ONCE A MONTH Inspect hardware and tighten any bolts or nuts that may have loosened during use. - Page 12 © 2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness is a registered trademark of Brunswick Corporation. 8006201 REV. A 10-28-05...
