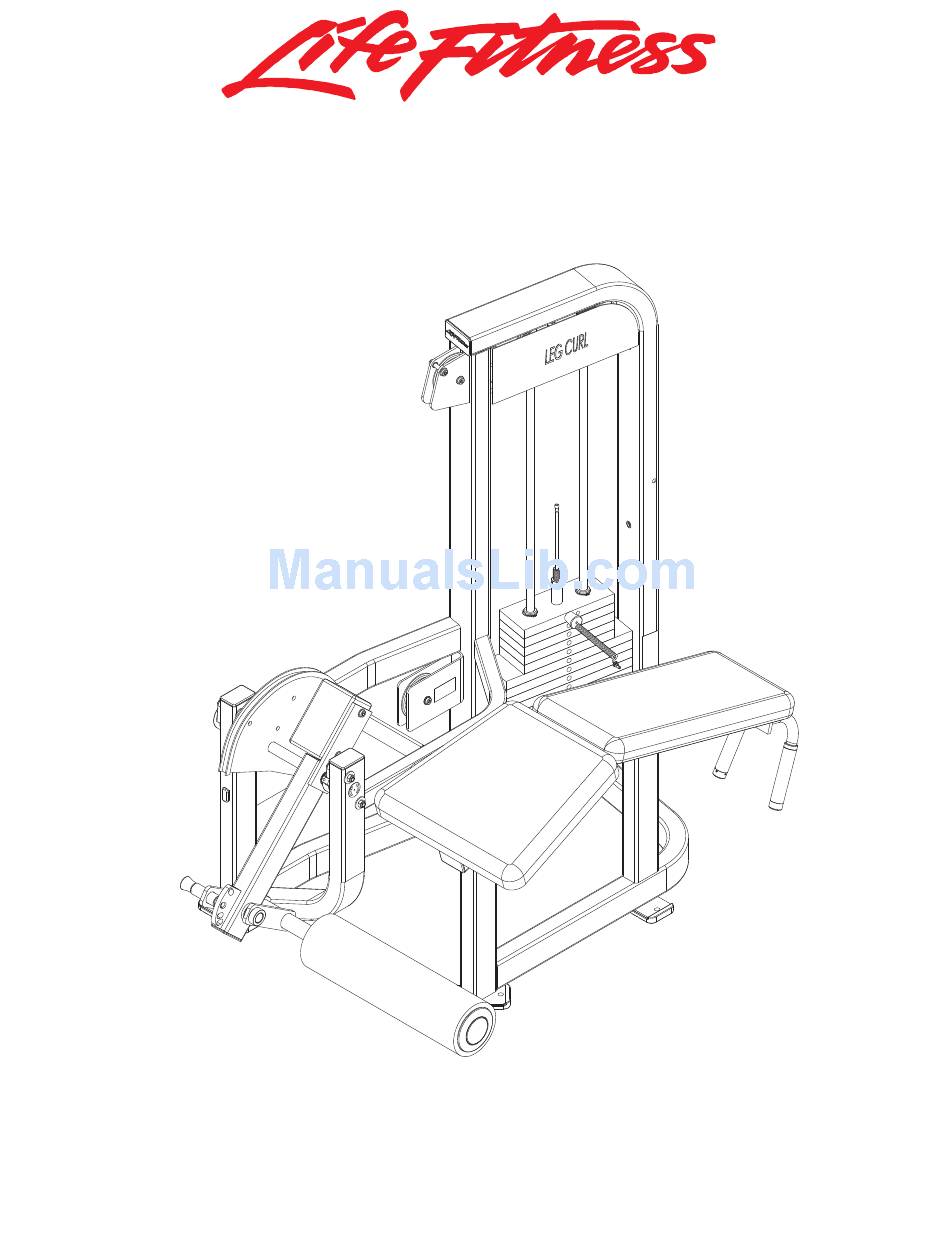

- Page 1 PRO 2 SERIES PSLC LEG CURL Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
PSLC LEG CURL CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND SIDE FRAME ASSEMBLY SIDE FRAME ASSEMBLY LEGEND SEAT FRAME ASSEMBLY KICKER ASSEMBLY KICKER ASSEMBLY LEGEND ADD-ON INCREMENT WEIGHT WEIGHT STACK ASSEMBLY OPTIONAL REAR SHROUD ASSEMBLY Page 2 PAGE... -
Page 3: Pslc Leg Curl
PSLC LEG CURL COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
PSLC LEG CURL COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7394801 ASSY, PSLC-SEAT FRAME 7393501 ASSY, PSLC-SIDE FRAME 3236601 WASHER, 3/8 SAE SS 3236204 SCREW, M10 X1.5 35MM 3236209 SCREW, M10 X1.5 60MM 3236801 NUT, M10 HEX NYLOCK SS 3236602 WASHER, 3/8 ID X 1.25 OD SS... -
Page 5: Side Frame Assembly
PSLC LEG CURL SIDE FRAME ASSEMBLY - 7393501 ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Side Frame Assembly Legend
3240501 M10 X 1.5 HXS NO CUP ST BO 7544202 PAD, DUAL LOCK 250 1.5" X 2.0" 7443701 LABEL, PSLC PLACARD 7491501 LABEL, PSLC LOGO PANEL 7348001 LABEL, LIFE FITNESS LOGO 7422004 LABEL, 2" ASTM WARN 7571301 LABEL, SERIAL NUMBER 7422003 LABEL, MOVING PARTS 3238101 NUT, BLIND INSERT M10 X 1.5... -
Page 7: Seat Frame Assembly
________________________________________ SEAT FRAME ASSEMBLY - 7394801 ITEM NO. QTY. PART NO. DESCRIPTION 7394901 WLDMT, PSLC-ST FRAME 7662901 CAP, GRIP 1.25 OD 3235801 1.18 ID X 6.00 7662801 RING, GRIP 1.25 OD 7352301 CAP, END 2 X 3 7388201 FOOTPAD, PS RUBBER 3247701 M4 X .7 HXS NO CUP ST BO... -
Page 8: Kicker Assembly
PSLC LEG CURL ________________________________________ KICKER ASSEMBLY SEE PAGE 9 FOR LEGEND Page 8... -
Page 9: Kicker Assembly Legend
________________________________________ KICKER ASSEMBLY LEGEND ITEM NO. QTY. PART NO. DESCRIPTION 7395801 WLDMT, PSLC-BASE MA 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7352301 CAP, END 2 X 3 3236203 SCREW, M10 X1.5 30MM 3236601 WASHER, 3/8 SAE SS 7374695 WELDMENT, PSLE&LC-BASE KICKER 7351501 SPRING;... -
Page 10: Add-On Increment Weight
PSLC LEG CURL ADD-ON INCREMENT WEIGHT ASSEMBLY - 7415001 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 3236601 WASHER, 3/8 SAE SS 3236221 SCREW, M10 X1.5 140MM 7401701 COVER, PLASTIC PEG 2-1/4 7366101 WEIGHT, 7.5 LB. ADD-ON Page 10... -
Page 11: Weight Stack Assembly
PSLC LEG CURL WEIGHT STACK ASSY 200LB - 7353401 ________________________________________ WEIGHT STACK LABELS PART NO DESCRIPTION 7987001 LABEL, 200 LB STACK 7987301 LABEL, 95 KG STACK ITEM NO 2 / 2 PART NO DESCRIPTION 7353901 HEADPLATE, WT. STACK 7352601 BAYONET, 14 PLATE 7338001 HEADPLATE BUSHING &... -
Page 12: Optional Rear Shroud Assembly
PSLC LEG CURL OPTIONAL REAR SHROUD KIT STD-SHORT - 7415201 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8352401 SHROUD, PS REAR 42.5 X 16.43 7655301 BRACKET, PS REAR SHIELD 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM Page 12...
