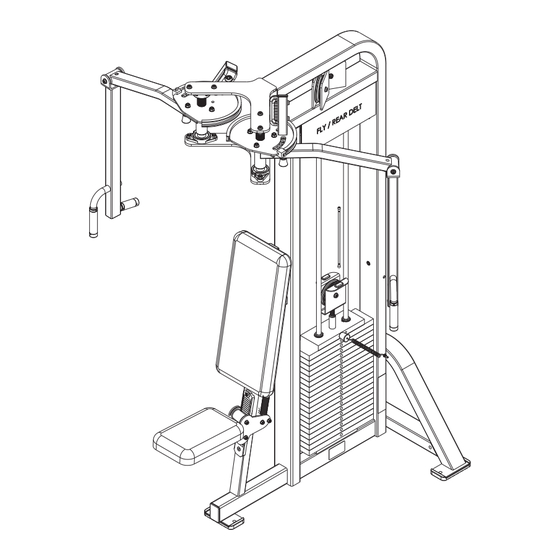

Life Fitness Pro 2 Series PSFLYSE Parts Manual
Pro 2 series pectoral fly / rear deltoid
Hide thumbs
Also See for Pro 2 Series PSFLYSE:
- Owner's manual (43 pages) ,
- Parts manual (22 pages) ,
- Assembly manual (18 pages)
Related Manuals for Life Fitness Pro 2 Series PSFLYSE
Summary of Contents for Life Fitness Pro 2 Series PSFLYSE

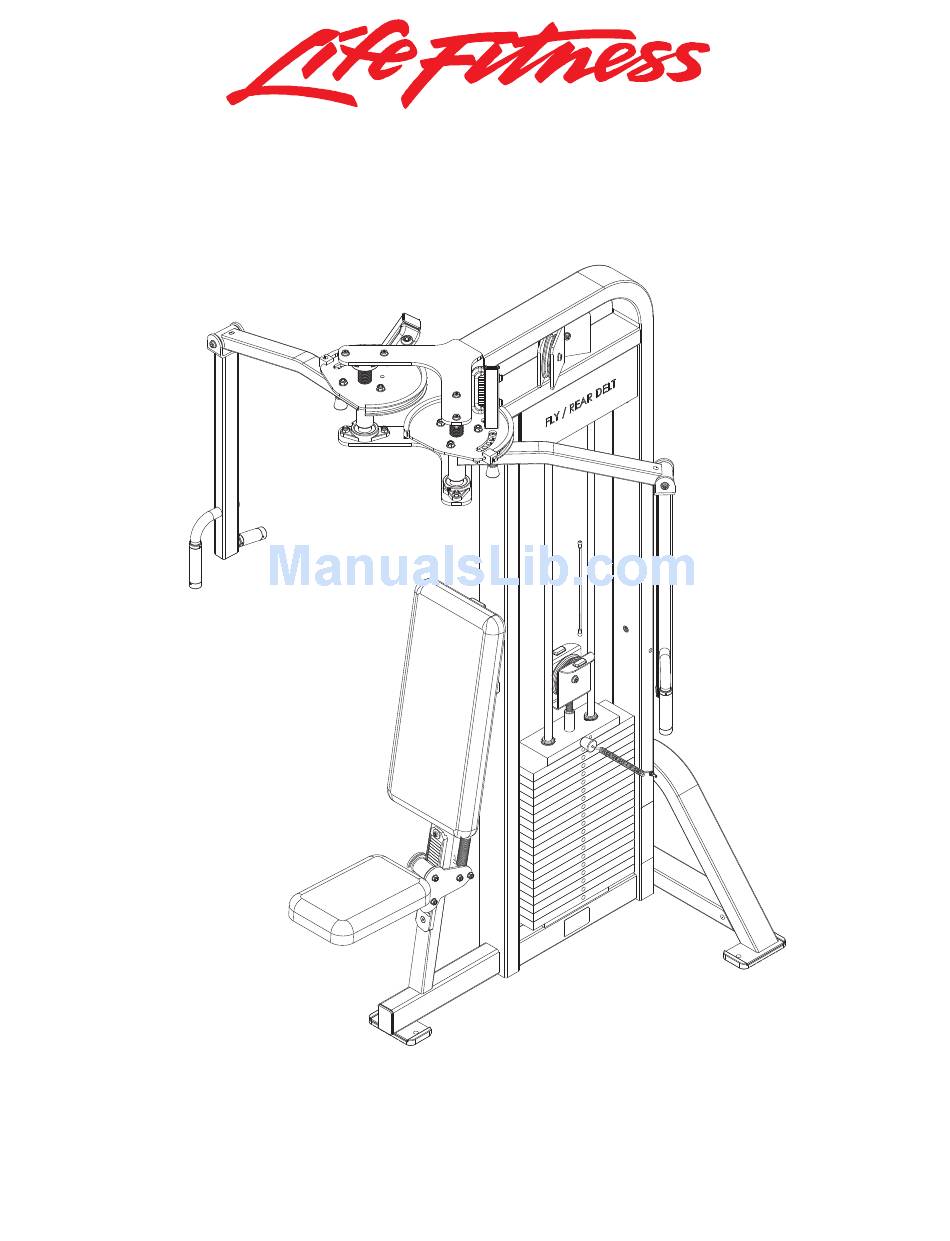

- Page 1 PRO 2 SERIES PSFLYSE PECTORAL FLY / REAR DELTOID Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
PSFLYSE PECTORAL FLY/REAR DELTOID Contents ________________________________________ COMPONANT ASSEMBLY 97 ROLLER SEAT ASSEMBLY RIGHT WORKARM ASSEMBLY LEFT WORKARM ASSEMBLY STACK FRAME ASSEMBLY 300LB WEIGHT STACK ASSEMBLY INCREMENT WEIGHT ASSEMBLY INCREMENT WEIGHT W/STRIKER REAR SHROUD KIT OPTIONAL FULL SHROUD KIT Page 2 PAGE... -
Page 3: Psflyse Pectoral Fly/Rear Deltoid
PSFLYSE PECTORAL FLY/REAR DELTOID COMPONENT ASSEMBLY ________________________________________ ITEM NO PART NO DESCRIPTION 7425801 ASSY, PSFLY STACK FRAME 7427301 ASSY, PSFLY WORKARM RHT 7427801 ASSY, PSFLY WORKARM LFT 7398801 PAD, BACK 25 X 11-1/4 3236601 WASHER, 3/8 SAE SS 3236204 SCREW, M10 X1.5 35MM 3236212 SCREW, M10 X1.5 75MM 7544202 PAD, DUAL LOCK 250 1.5"... -
Page 4: Roller Seat Assembly
PSFLYSE PECTORAL FLY/REAR DELTOID 97 DEGREE ROLLER SEAT ASSEMBLY - 7396701 ________________________________________ ITEM NO PART NO DESCRIPTION 7396801 Wldmnt, 90 Deg Roller Seat 7564201 ASSY, SEAT ROLLER 7387595 WELDMNT, PS-ROLLER SEAT HANDLE 3236217 SCREW, M10 X1.5 100MM 3236601 WASHER, 3/8 SAE SS 3236801 NUT, M10 HEX NYLOCK SS 7352301 CAP, END 2 X 3 7564301 SEATRACK, ROLLER SERRATED... -
Page 5: Right Workarm Assembly
PSFLYSE PECTORAL FLY/REAR DELTOID ________________________________________ RIGHT WORKARM ASSEMBLY ITEM NO PART NO DESCRIPTION 7427401 7428001 3104903 7352201 3236601 3236801 3236202 7351501 7351301 7351401 7324903 7874601 7352001 3236210 7662901 7662801 3235801 7428301 7422003 6912804 3237401 3247701 7570801 Page 5 WELDMENT, PSFLY CAM R WELDMENT, PS TOP WORKARM 1.00"... -
Page 6: Left Workarm Assembly
PSFLYSE PECTORAL FLY/REAR DELTOID LEFT WORKARM ASSEMBLY ________________________________________ ITEM NO PART NO DESCRIPTION 7427901 WELDMENT, PSFLY CAM L 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7428001 WELDMENT, PS TOP WORKARM 7352201 CAP, END 1-1/2 X 2 7351501 SPRING; PULL PIN LARGE 7351301 PIN, PULL X 4.375 7351401 KNOB, TULIP STYLE 3236601 WASHER, 3/8 SAE SS... -
Page 7: Stack Frame Assembly
7425795 WELDMENT, FLOATING PULLEY 7352301 CAP, END 2 X 3 7352201 CAP, END 1-1/2 X 2 7422004 LABEL, 2" ASTM WARN 7348001 LABEL, LIFE FITNESS LOGO 3238101 NUT, BLIND INSERT M10 X 1.5 7570801 Guard, Paint 1.25"x.75"x.25" 7571301 LABEL, SERIAL NUMBER... -
Page 8: 300Lb Weight Stack Assembly
PSFLYSE PECTORAL FLY/REAR DELTOID WEIGHT STACK ASSY 300LB - 7353501 ________________________________________ ITEM NO QTY PART NO DESCRIPTION 7353901 HEADPLATE, WT. STACK 7356600 STEM, PRO2 19 HOLE 2 / 2 7338001 HEADPLATE BUSHING & CLIP 7353001 ASSY, SELECTOR PIN 7356501 PLUG, LANYARD ATTACHMENT 3236001 BUSHING, SPRING PIN 7353801... -
Page 9: Increment Weight Assembly
PSFLYSE PECTORAL FLY/REAR DELTOID 5LB INCREMENT WEIGHT ASSEMBLY - 7446501 ________________________________________ ITEM NO PART NO DESCRIPTION 7446602 BODY, 5LB INCREMENT WEIGHT 7446901 PIN, RETAINING 7447001 SPRING, COMPRESSION 7560001 BUSHING, MTS, INC WEIGHT 7351401 KNOB, TULIP STYLE Page 9... -
Page 10: Increment Weight W/Striker
PSFLYSE PECTORAL FLY/REAR DELTOID INCREMENT WEIGHT W/STRIKER - 7415101 ________________________________________ ITEM NO PART NO DESCRIPTION 7446501 ASSY, 5LB INCREMENT WEIGHT 7447101 PLATE, INCR. WT STRIKER 3236202 SCREW, M10 X1.5 25MM 3236801 NUT, M10 HEX NYLOCK SS 7767601 BUMPER, PS INCREMENT WT 3237401 PLUG, 7/16"... -
Page 11: Rear Shroud Kit
PSFLYSE PECTORAL FLY/REAR DELTOID REAR SHROUD KIT - 7601001 ________________________________________ ITEM NO PART NO DESCRIPTION 7600801 GUARD, PSFLY KNEE 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM 7376806 SHIELD, PS REAR 7655301 BRACKET, PS REAR SHIELD Page 11... -
Page 12: Optional Full Shroud Kit
PSFLYSE PECTORAL FLY/REAR DELTOID OPTIONAL FULL SHROUD KIT - 7539606 ________________________________________ ITEM NO PART NO DESCRIPTION 7376806 SHIELD, PS REAR 7655301 BRACKET, PS REAR SHIELD 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM 3236203 SCREW, M10 X1.5 30MM 7376601 BRACKET, PS FRONT SHIELD 7376906...
