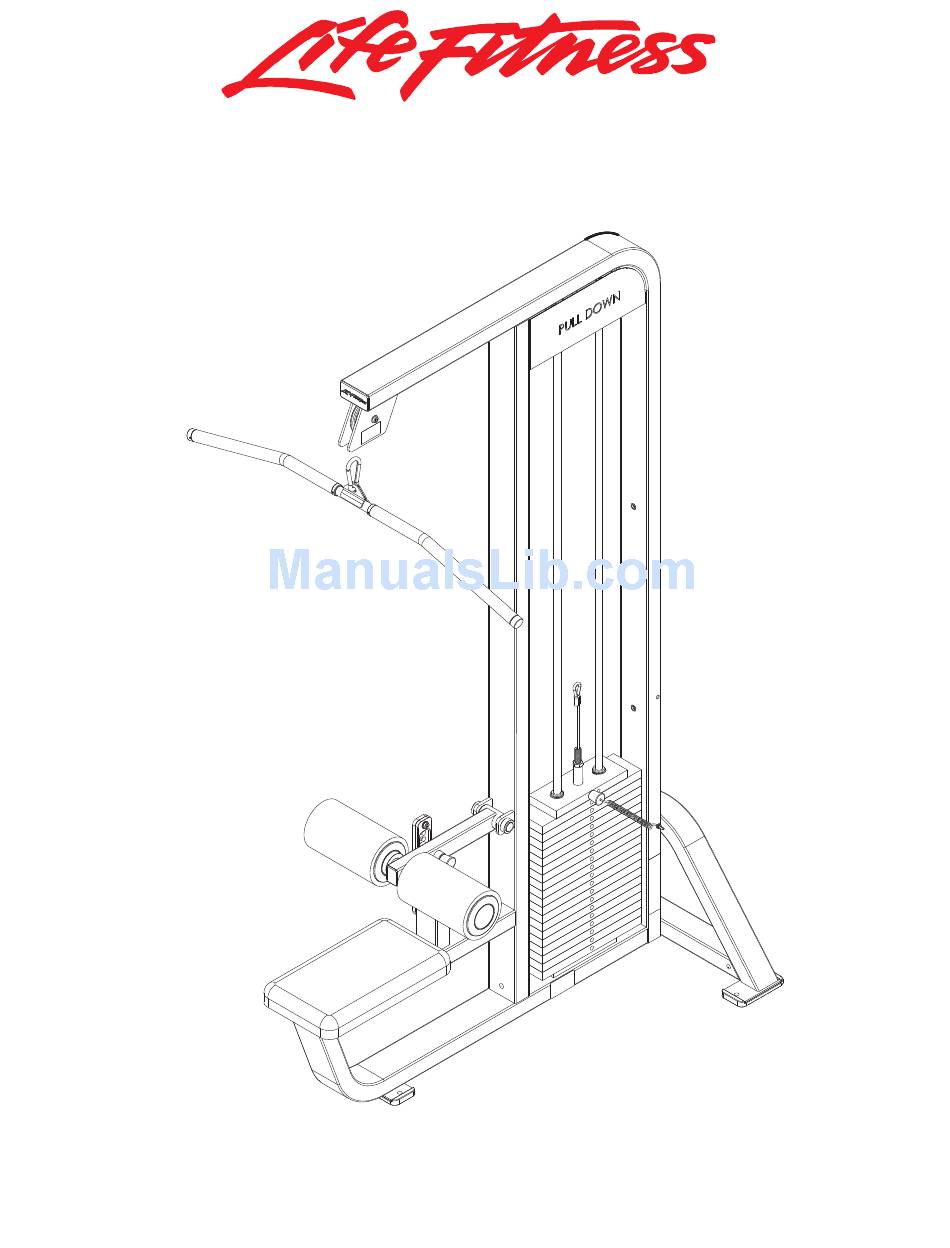

- Page 1 PRO 2 SERIES PSPD LAT PULLDOWN Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
PSPD LAT PULLDOWN CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND MAIN FRAME ASSEMBLY MAIN FRAME ASSEMBLY LEGEND THIGH PULLDOWN ASSEMBLY LAT BAR ASSEMBLY ADD-ON INCREMENT WEIGHT ASSEMBLY WEIGHT STACK (300LB) OPTIONAL REAR SHROUD KIT Page 2 Page... -
Page 3: Component Assembly
PSPD LAT PULLDOWN COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
PSPD LAT PULLDOWN COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7441901 PTD ASSY, MAIN FRAME 7442201 PTD ASSY, THIGH HOLD DOWN 7442301 PTD ASSY, LAT BAR 72973XX PAD, ASSY 18 X 10 7358201 SHAFT, 1 DIA X 4.88 3236212 SCREW, M10 X1.5 75MM 3236601 WASHER, 3/8 SAE SS 7435301 COLLAR, SHAFT 1.020 ID... -
Page 5: Main Frame Assembly
PSPD LAT PULLDOWN MAIN FRAME ASSEMBLY - 7441901 ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Main Frame Assembly Legend
7442001 LABEL, PSPD PLACARD 7422004 LABEL, 2" ASTM WARN 7571301 LABEL, SERIAL NUMBER 7422003 LABEL, MOVING PARTS 7348001 LABEL, LIFE FITNESS LOGO 7388201 FOOTPAD, PS RUBBER 3238101 NUT, BLIND INSERT M10 X 1.5 3237401 PLUG, 7/16" HOLE 3237402 PLUG, HOLE 3236901 NUT, M10 X 1.5 JAM... -
Page 7: Thigh Pulldown Assembly
PSPD LAT PULLDOWN THIGH PULLDOWN ASSEMBLY - 7442201 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7365501 WLDMT, PSPD -HOLD DOWN 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7351501 SPRING; PULL PIN LARGE 7351401 KNOB, TULIP STYLE 7352201 CAP, END 1-1/2 X 2 7347301 NUT, SPIDER M10 X 1.5 7357901... -
Page 8: Lat Bar Assembly
PSPD LAT PULLDOWN LAT BAR ASSEMBLY - 7442301 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7365795 WLDMT-PSPD -LAT BAR 7662801 RING, GRIP 1.25 OD 3235801 GRIP, TBC 7662900 CAP, GRIP Page 8... -
Page 9: Add-On Increment Weight Assembly
PSPD LAT PULLDOWN ADD-ON INCREMENT WEIGHT ASSEMBLY - 7415001 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 3236601 WASHER, 3/8 SAE SS 3236221 SCREW, M10 X1.5 140MM 7401701 COVER, PLASTIC PEG 2-1/4 7366101 WEIGHT, 7.5 LB. ADD-ON Page 9... - Page 10 PSPD LAT PULLDOWN WEIGHT STACK ASSY 300LB - 7353501 ________________________________________ WEIGHT STACK LABELS PART NO. DESCRIPTION 7987201 LABEL, 300 LB STACK 7987401 LABEL, 138 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7353901 HEADPLATE, WT. STACK 7356600 STEM, PRO2 19 HOLE 7338001 BUSHING, HEADPLATE 7353001...
- Page 11 PSPD LAT PULLDOWN OPTIONAL REAR SHROUD KIT XL - 7442501 ________________________________________ ITEM NO PART NO DESCRIPTION 8352601 SHROUD, PSPD REAR 7655301 BRKT, PS REAR SHIELD 3236601 WASHER,3/8 SAE STAINLESS STEEL 3236201 M10 X 1.5 X 20 HXS SOC CS SS Page 11...
