Summary of Contents for Life Fitness PSABSE

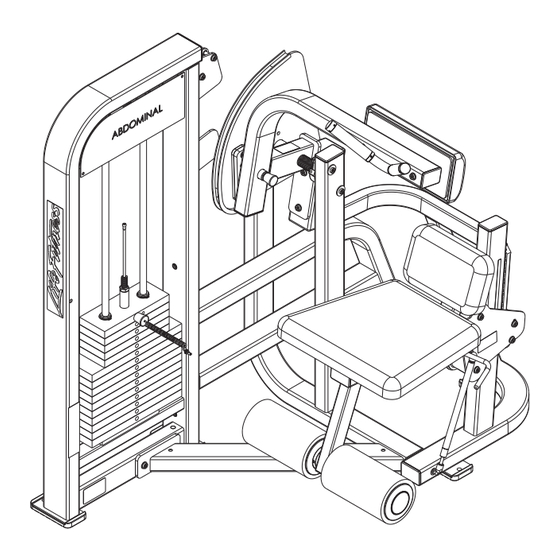

- Page 1 PRO 2 SERIES PSABSE ABDOMINAL Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
PSABSE ABDOMINAL CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND MAIN FRAME MAIN FRAME ASSEMBLY LEGEND SIDE FRAME ASSEMBLY SIDE FRAME ASSEMBLY LEGEND WORK ARM ASSEMBLY WORK ARM ASSEMBLY LEGEND ADJUSTABLE SEAT ASSEMBLY ADJUSTABLE SEAT ASSEMBLY LEGEND 5LB INCREMENT WEIGHT ASSEMBLY... -
Page 3: Component Assembly
PSABSE ABDOMINAL COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
PSABSE ABDOMINAL COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7454801 ASSY, PSAB MAIN FRAME 7456101 ASSY, PSAB ADJ. SEAT 7457001 ASSY, PSAB SIDE FRM 7424701 ASSY, ROLLER PAD - SHORT 7457501 ASSY, PSAB WORKARM 3236212 SCREW, M10 X1.5 75MM... -
Page 5: Main Frame
PSABSE ABDOMINAL MAIN FRAME ASSEMBLY - 7454801 ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Main Frame Assembly Legend
PSABSE ABDOMINAL MAIN FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7454901 WELDMENT, PSAB MAIN 7352301 CAP, END 2 X 3 3237701 ASSY, PILLOW BLOCK 4.88 X 2.75 3236602 WASHER, 3/8 ID X 1.25 OD SS 3236212 SCREW, M10 X1.5 75MM... -
Page 7: Side Frame Assembly
PSABSE ABDOMINAL ________________________________________ SIDE FRAME ASSEMBLY - 7457001 SEE PAGE 8 FOR LEGEND Page 7... -
Page 8: Side Frame Assembly Legend
7544202 PAD, DUAL LOCK 250 1.5" X 2.0" 7491701 LABEL, PSAB LOGO PANEL 7490101 LABEL, PSAB PLACARD 7422004 LABEL, 2" ASTM WARN 7348001 LABEL, LIFE FITNESS LOGO 7571301 LABEL, SERIAL NUMBER 7422003 LABEL, MOVING PARTS 3238101 NUT, BLIND INSERT M10 X 1.5... -
Page 9: Work Arm Assembly
PSABSE ABDOMINAL WORK ARM ASSEMBLY - 7457501 ________________________________________ SEE PAGE 10 FOR LEGEND Page 9... -
Page 10: Psabse Abdominal
PSABSE ABDOMINAL WORK ARM ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7457601 WELDMENT, PSAB WORKARM 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7458201 WELDMENT, PSAB CAM 7351301 PIN, PULL X 4.375 7351501 SPRING; PULL PIN LARGE 7351401 KNOB, TULIP STYLE... -
Page 11: Adjustable Seat Assembly
PSABSE ABDOMINAL ADJUSTABLE SEAT ASSEMBLY - 7456101 ________________________________________ SEE PAGE 12 FOR LEGEND Page 11... -
Page 12: Adjustable Seat Assembly Legend
PSABSE ABDOMINAL ADJUSTABLE SEAT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7456201 WELDMENT, PSAB ADJ. SEAT 7564201 ASSY, SEAT ROLLER 3236217 SCREW, M10 X1.5 100MM 3236601 WASHER, 3/8 SAE SS 3236801 NUT, M10 HEX NYLOCK SS 7504695 WLDMT, MTS/PS, SEAT HANDLE... -
Page 13: 5Lb Increment Weight Assembly
PSABSE ABDOMINAL 5LB INCREMENT WEIGHT ASSEMBLY - 7446501 ________________________________________ ITEM NO PART NO DESCRIPTION 7446602 BODY, 5LB INCREMENT WEIGHT 7446901 PIN, RETAINING 7447001 SPRING, COMPRESSION 7560001 BUSHING, MTS, INC WEIGHT 7351401 KNOB, TULIP STYLE Page 13... -
Page 14: Increment Weight Assembly W/Striker
PSABSE ABDOMINAL INCREMENT WEIGHT W/STRIKER - 7415101 ________________________________________ ITEM NO PART NO DESCRIPTION 7446501 ASSY, 5LB INCREMENT WEIGHT 8002601 PLATE, INCR. WT STRIKER 3236202 SCREW, M10 X1.5 25MM 3236801 NUT, M10 HEX NYLOCK SS 7767601 BUMPER, PS INCREMENT WT 3237401 PLUG, 7/16" HOLE... -
Page 15: Weight Stack (200Lb)
PSABSE ABDOMINAL WEIGHT STACK ASSY 200LB - 7353401 ________________________________________ WEIGHT STACK LABELS PART NO DESCRIPTION 7987001 LABEL, 200 LB STACK 7987301 LABEL, 95 KG STACK ITEM NO 2 / 2 PART NO DESCRIPTION 7353901 HEADPLATE, WT. STACK 7352601 BAYONET, 14 PLATE 7338001 HEADPLATE BUSHING &... -
Page 16: Rear Shroud Kit
PSABSE ABDOMINAL REAR SHROUD KIT STD-SHORT - 7415201 ________________________________________ ITEM NO PART NO DESCRIPTION 7376801 SHIELD, PS REAR 7655301 BRACKET, PS REAR SHIELD 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM Page 16... -
Page 17: Optional Full Shroud Kit
PSABSE ABDOMINAL OPTIONAL FULL SHROUD KIT STD-SHORT - 7539601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7376801 SHIELD, PS REAR 7655301 BRACKET, PS REAR SHIELD 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM 3236203 SCREW, M10 X1.5 30MM... -
Page 18: Image
PSABSE ABDOMINAL IMAGE ________________________________________ Page 18...
