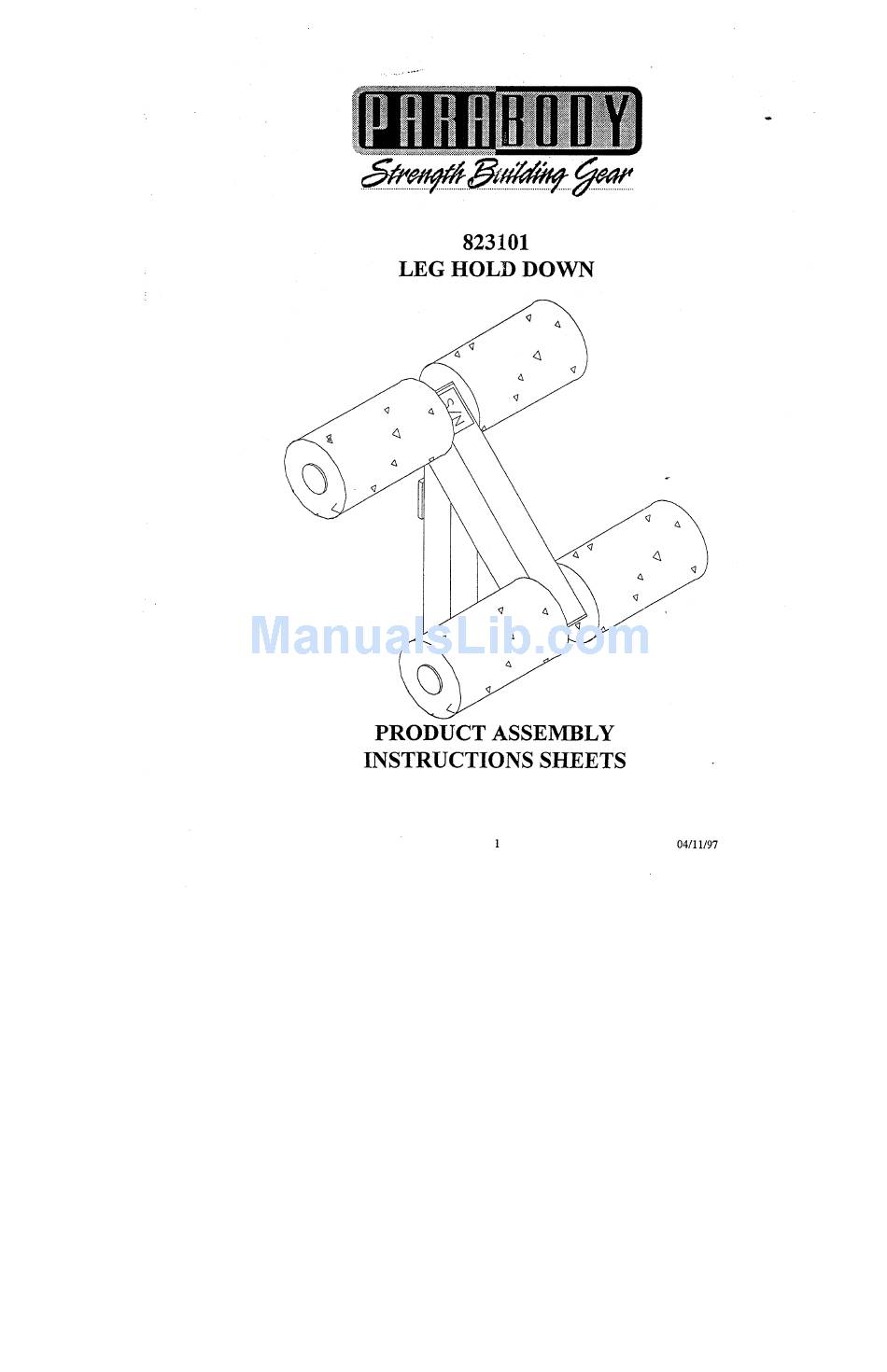

- Page 1 823101 LEG HOLD DOWN PRODUCT ASSEMBLY INSTRUCTIONS SHEETS 04/11197...
- Page 2 823101 LEG HOLD DOWN ASSEMBLY PARTS LIST SORT AND COUNT PARTS HARDWARE: ITEM NAME/DESCRIPTION 3/4 IN. STARLOCK COLLAR. 1-3/4 IN. SQ. END CAP ... WELDMENTS/PARTS: ITEM NAME/DESCRIPTION LEG HOLD DOWN FRAME WLDMT ... ROLLER PAD SHAFT ROLLER PAD ... NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT. , ~iiiiiiii BOLT LEI~IGTH BOLT LENGTH RULER:...
- Page 3 823101 LEG HOLD DOWN ASSEMBLY INSTRUCTIONS Insert two (2) 1-3/4 IN. SQ. END CAP into both ends of the LEG HOLD DOWN FRAME as shown drawing. Assemble four (4) ROLLER PADS to the LEG HOLD DOWN FRAME as st~own on drawing, using two (2) ROLLER PAD SHAFTS, and four (4) 3/4 IN.
