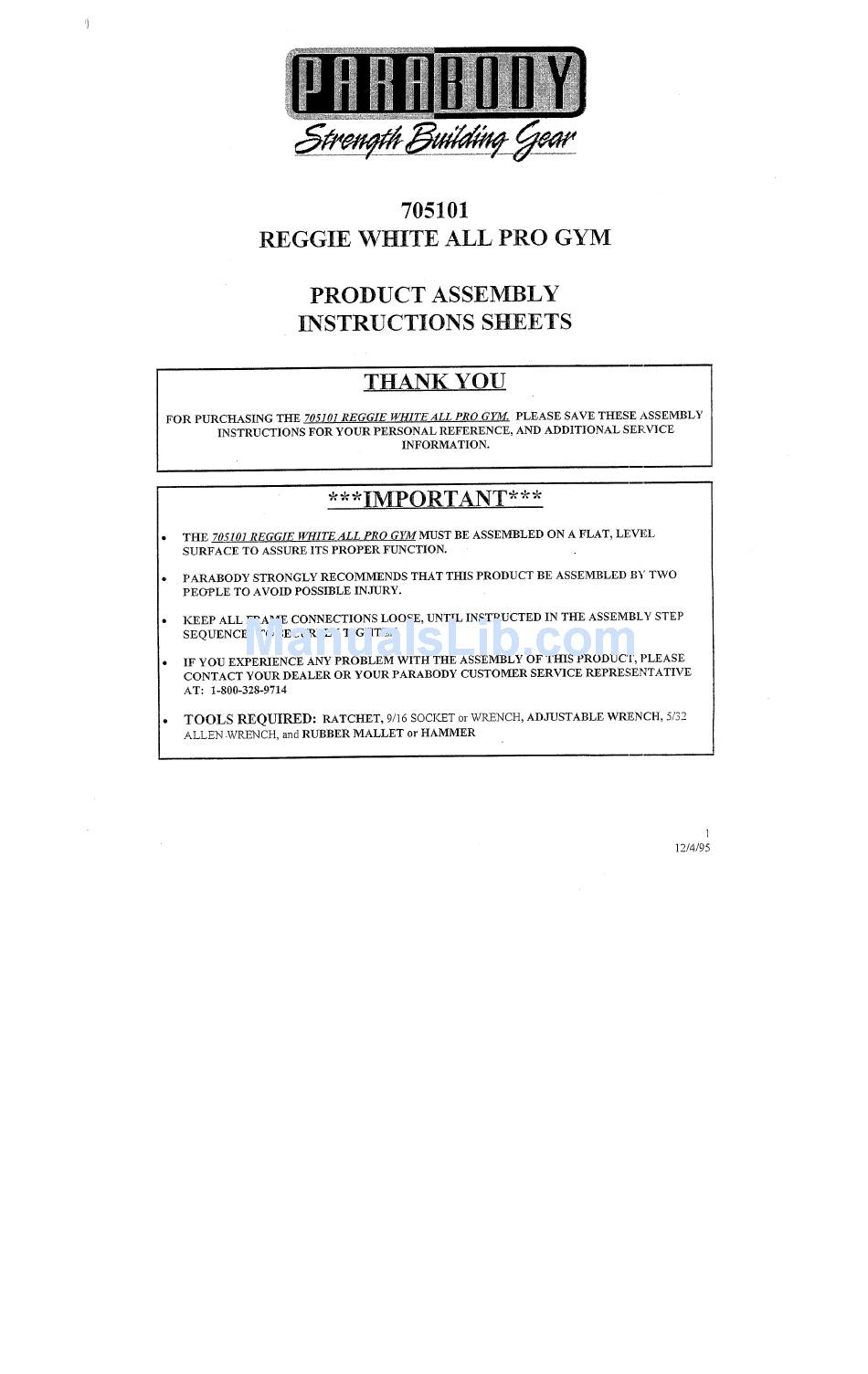

REGGIE
705101
WHITE ALL PRO GYM
PRODUCT ASSEMBLY
INSTRUCTIONS
SHEETS
THANK YOU
FOR PURCHASING THE 705101
REGGIE WHITEALL PRO GYM. PLEASE SAVE THESE ASSEMBLY
INSTRUCTIONS FOR YOUR PERSONAL REFERENCE, AND ADDITIONAL SERVICE
INFORMATION.
***IMPORTANT***
THE 705101
REGGIE WHITEALL PRO GYMMUST BE ASSEMBLED ON A FLAT, LEVEL
SURFACE TO ASSURE ITS PROPER FUNCTION.
PARABODY STRONGLY RECOMMENDS THAT THIS PRODUCT BE ASSEMBLED BY TWO
PEO-PLE TO AVOID POSSIBLE INJURY.
ICEEP ALL FRAME CONNECTIONS LOOSE, UNTIL INSTRUCTED IN THE ASSEMBLY STEP
SEQUENCES TO SECURELY TIGHTEN.
IF YOU EXPERIENCE ANY PROBLEM WITH THE ASSEMBLY OF THIS PRODUCT, PLEASE
CONTACT YOUR DEALER OR YOUR PARABODY CUSTOMER SERVICE REPRESENTATIVE
AT: 1-800-328-9714
TOOLS REQUIRED: RATCHET, 9/16
SOCK_ET or WRENCH, ADJUSTABLE WRENCH, 5/32
ALLEN .WRENCH, and RUBBER MALLET or HAMMER
1
