Summary of Contents for Hammer Strength HDPR9
-

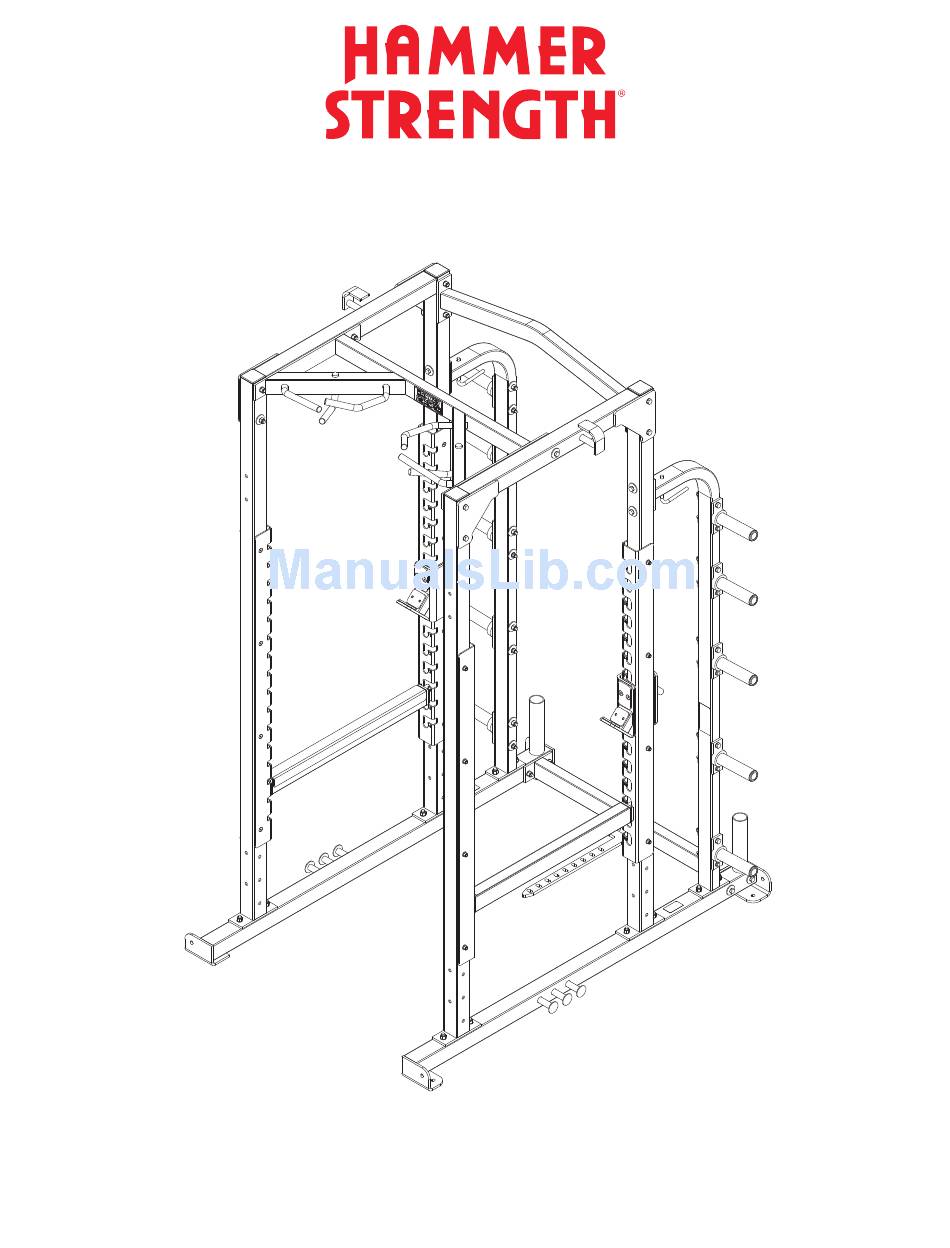

Page 1: Parts List
HDPR9 HEAVY DUTY 9 FOOT POWER RACK Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
HDPR9 HEAVY DUTY 9 FOOT POWER RACK CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND PULL-UP SUPPORT ASSEMBLY LEFT FRONT UPRIGHT ASSEMBLY RIGHT FRONT UPRIGHT ASSEMBLY RIGHT BAR SUPPORT ASSEMBLY LEFT BAR SUPPORT ASSEMBLY BAR CATCH ASSEMBLY ANGLED WEIGHT HORN ASSEMBLY IMAGE NOTE: ITEMS THAT HAVE AN ASTERISK (*) ARE FRAME COLOR SPECIFIC. -
Page 3: Hdpr9 Heavy Duty 9 Foot Power Rack
HDPR9 HEAVY DUTY 9 FOOT POWER RACK COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
HDPR9 HEAVY DUTY 9 FOOT POWER RACK COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. HDPR9-RX-0 HDPR9-LSFR-0 HDPR9-LSFL-0 HDPR9-CFUPL-0 HDPR9-CFUPR-0 HDPR9-RUP-0 HDPR9-USFL-1 HDPR9-CPU-0 HDPR9-USFR-1 HDPR9-TX-0 HD-SDL-00 WASH.5STAR WASH.375SAE H-BACK-WASH NUT.375LOCK NUT.5LOCK HHB.5X4.5 HHB.375X4.5 HHB.5X3.5 ANG-WT-HORN-ASSY ANGLED WEIGHT HORN HDPR9-CBC-0... -
Page 5: Pull-Up Support Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK PULL UP SUPPORT ASSEMBLY - HDPR9-CPU-0* ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION HDPR9-PU-0 WLDMT, CHIN UP SUPRT H-NAME PLATE HAMMER STRENGTH BADGE Page 5... -
Page 6: Left Front Upright Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK LEFT FRONT UPRIGHT ASSEMBLY - HDPR9-CFUPL-0* ________________________________________ ITEM NO. QTY. PART NO. HDPR9-FUP-0 SQ-24-1 HD-LH-ADJ-RACK-01 HD ADJUSTMENT RACK, LEFT 3/8 X 4 FHSCS WASH.375SAE NUT.375LOCK DESCRIPTION WLDMT, 9' UPRIGHT 3 X 3 END CAP 0.375 X 4"... -
Page 7: Right Front Upright Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK RIGHT FRONT UPRIGHT ASSEMBLY - HDPR9-CFUPR-0* ________________________________________ ITEM NO. QTY. PART NO. HDPR9-FUP-0 SQ-24-1 HD-RH-ADJ-RACK-01 ADJUSTMENT RACK, RIGHT 3/8 X 4 FHSCS WASH.375SAE NUT.375LOCK DESCRIPTION WLDMT, 9' UPRIGHT 3 X 3 END CAP 0.375 X 4"... -
Page 8: Right Bar Support Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK RIGHT BAR SUPPORT ASSEMBLY - HDPR9-CBSR-1 ________________________________________ ITEM NO. QTY. PART NO. HDPR9-BSR-0 HD-BKT-PNT-GRD-02 HD-BKT-PNT-GRD-HOLES-02 PAINT GRD, 10" X 3" w/ 1.5" HOLES HD-BS-PNT-GRD-MED-00 HD-BS-PNT-GRD-SML-02 HD-BS-PNT-GRD-LRG-02 RIVET 3/8 X 1/2 FHSCS DESCRIPTION WLDMT, BAR SUPPORT RIGHT PAINT GUARD, 10"... -
Page 9: Left Bar Support Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK LEFT BAR SUPPORT ASSEMBLY - HDPR9-CBSL-1 ________________________________________ ITEM NO. QTY. PART NO. HDPR9-BSL-0 HD-BKT-PNT-GRD-02 HD-BKT-PNT-GRD-HOLES-02 PAINT GRD, 10" X 3" w/ 1.5" HOLES HD-BS-PNT-GRD-MED-00 HD-BS-PNT-GRD-SML-02 HD-BS-PNT-GRD-LRG-02 RIVET 3/8 X 1/2 FHSCS DESCRIPTION WLDMT, BAR SUPPORT LEFT PAINT GUARD, 10"... -
Page 10: Bar Catch Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK BAR CATCH ASSEMBLY - HDPR9-CBC-0 ________________________________________ ITEM NO. QTY. PART NO. HDPR9-BC-0 HD-BC-PNT-GRD-LG-00 HD-BC-PNT-GRD-END-00 H-LOCK-PLUG 3/8 X 1/2 FHSCS H-DECAL-LOGO DESCRIPTION WLDMT, BAR CATCH PAINT GUARD, BAR CATCH TOP PAINT GUARD, BAR CATCH END 9/16"... -
Page 11: Angled Weight Horn Assembly
HDPR9 HEAVY DUTY 9 FOOT POWER RACK ANGLED WEIGHT HORN ASSY. - ANG-WT-HORN-ASSY ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION ANG-WT-HORN-ASSY WDMNT, ANGLED WEIGHT HORN H-RUBCAP2 PLUG, HAMMER WEIGHT HORN H-RUBRNG MM5 RING Page 11... -
Page 12: Image
HDPR9 HEAVY DUTY 9 FOOT POWER RACK IMAGE ________________________________________ Page 12...
