Summary of Contents for Hammer Strength HDCR9
-
Page 1: Parts List

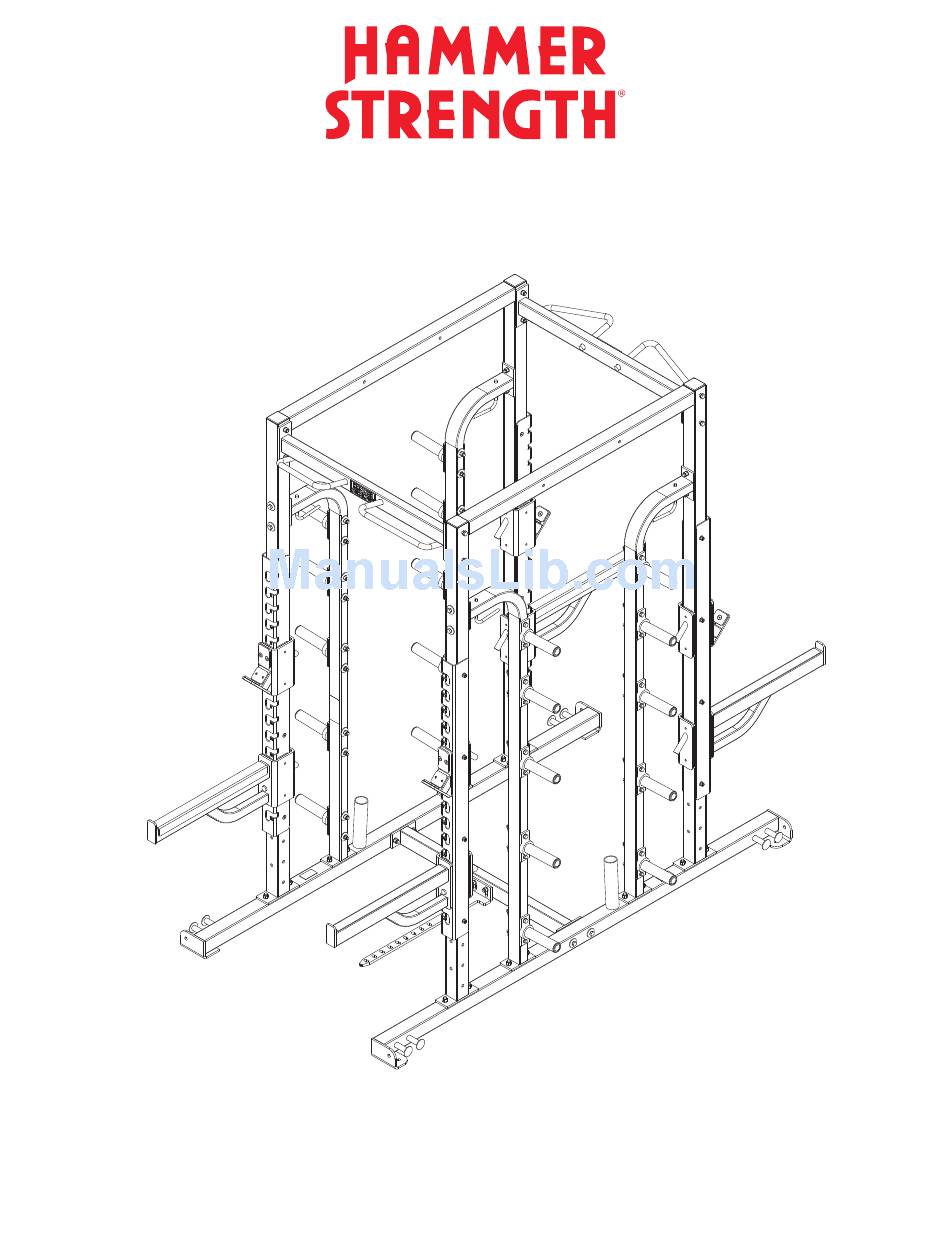

HDCR9 HEAVY DUTY 9 FOOT COMBO RACK Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND PULL-UP SUPPORT ASSEMBLY LEFT FRONT UPRIGHT ASSEMBLY RIGHT FRONT UPRIGHT ASSEMBLY RIGHT BAR SUPPORT ASSEMBLY LEFT BAR SUPPORT ASSEMBLY RIGHT BAR CATCH ASSEMBLY LEFT BAR CATCH ASSEMBLY... -
Page 3: Hdcr9 Heavy Duty 9 Foot Combo Rack
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. HDCR9-RX-0 HDCR9-CPU-0 HDCR9-CFUPL-0 HDCR9-RUP-0 HDCR9-USF-0 HDCR9-LSF-0 HD-LDL-00 HDCR9-CFUPR-0 H-BACK-WASH WASH.375SAE NUT.375LOCK WASH.5STAR HHB.375X4.5 HHB.5X4.5 NUT.5LOCK HHB.5X3.5 HDCR9-CBSR-0 HDCR9-CBSL-0 HDCR9-CBCR-0 HDCR9-CBCL-0 ANG-WT-HORN-ASSY ANGLED WEIGHT HORN... -
Page 5: Pull-Up Support Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK PULL UP SUPPORT ASSEMBLY - HDCR9-CPU-0* ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION HDCR9-PU-0 WLDMT, PULL-UP SUPPORT (OHDHR) H-NAME PLATE HAMMER STRENGTH BADGE Page 5... -
Page 6: Left Front Upright Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK LEFT FRONT UPRIGHT ASSEMBLY - HDCR9-CFUPL-0* ________________________________________ ITEM NO. QTY. PART NO. HDCR9-FUP-0 SQ-24-1 HD-LH-ADJ-RACK-01 HD ADJUSTMENT RACK, LEFT 3/8 X 4 FHSCS WASH.375SAE NUT.375LOCK DESCRIPTION WLDMT, 9' UPRIGHT 3 X 3 END CAP 0.375 X 4"... -
Page 7: Right Front Upright Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK RIGHT FRONT UPRIGHT ASSEMBLY - HDCR9-CFUPR-0* ________________________________________ ITEM NO. QTY. PART NO. HDCR9-FUP-0 SQ-24-1 HD-RH-ADJ-RACK-01 ADJUSTMENT RACK, RIGHT 3/8 X 4 FHSCS WASH.375SAE NUT.375LOCK DESCRIPTION WLDMT, 9' UPRIGHT 3 X 3 END CAP 0.375 X 4"... -
Page 8: Right Bar Support Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK RIGHT BAR SUPPORT ASSEMBLY - HDCR9-CBSR-0 ________________________________________ ITEM NO. QTY. PART NO. HDCR9-BSR-0 HD-BKT-PNT-GRD-02 HD-BKT-PNT-GRD-HOLES-02 PAINT GRD, 10" X 3" w/ 1.5" HOLES HD-BS-PNT-GRD-MED-00 HD-BS-PNT-GRD-SML-02 HD-BS-PNT-GRD-LRG-02 RIVET 3/8 X 1/2 FHSCS DESCRIPTION WLDMT, BAR SUPPORT RIGHT PAINT GUARD, 10"... -
Page 9: Left Bar Support Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK LEFT BAR SUPPORT ASSEMBLY - HDCR9-CBSL-0 ________________________________________ ITEM NO. QTY. PART NO. HDCR9-BSL-0 HD-BKT-PNT-GRD-02 HD-BKT-PNT-GRD-HOLES-02 PAINT GRD, 10" X 3" w/ 1.5" HOLES HD-BS-PNT-GRD-MED-00 HD-BS-PNT-GRD-SML-02 HD-BS-PNT-GRD-LRG-02 RIVET 3/8 X 1/2 FHSCS DESCRIPTION WLDMT, BAR SUPPORT LEFT PAINT GUARD, 10"... -
Page 10: Right Bar Catch Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK RIGHT BAR CATCH ASSEMBLY - HDCR9-CBCR-0 ________________________________________ ITEM NO. QTY. PART NO. HDCR9-BCR-0 HD-BC-PNT-GRD-SML-00 HD-BKT-PNT-GRD-02 HD-BKT-PNT-GRD-HOLES-02 3/8 X 1/2 FHSCS H-LOCK-PLUG H-DECAL-LOGO DESCRIPTION WLDMT, BAR CATCH RIGHT BAR CATCH PAINT GUARD TOP (27.5) PAINT GUARD, 10"... -
Page 11: Left Bar Catch Assembly
HDCR HEAVY DUTY 9 FOOT COMBO RACK LEFT BAR CATCH ASSEMBLY - HDCR9-CBCL-0 ________________________________________ ITEM NO. QTY. PART NO. HDCR9-BCL-0 HD-BC-PNT-GRD-SML-00 HD-BKT-PNT-GRD-02 HD-BKT-PNT-GRD-HOLES-02 3/8 X 1/2 FHSCS H-LOCK-PLUG H-DECAL-LOGO DESCRIPTION WLDMT, BAR CATCH LEFT BAR CATCH PAINT GUARD TOP (27.5) PAINT GUARD, 10"... -
Page 12: Angled Weight Horn Assembly
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK ANGLED WEIGHT HORN ASSY. - ANG-WT-HORN-ASSY ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION ANG-WT-HORN-ASSY WDMNT, ANGLED WEIGHT HORN H-RUBCAP2 PLUG, HAMMER WEIGHT HORN H-RUBRNG MM5 RING Page 12... -
Page 13: Image
HDCR9 HEAVY DUTY 9 FOOT COMBO RACK IMAGE ________________________________________ Page 13...
