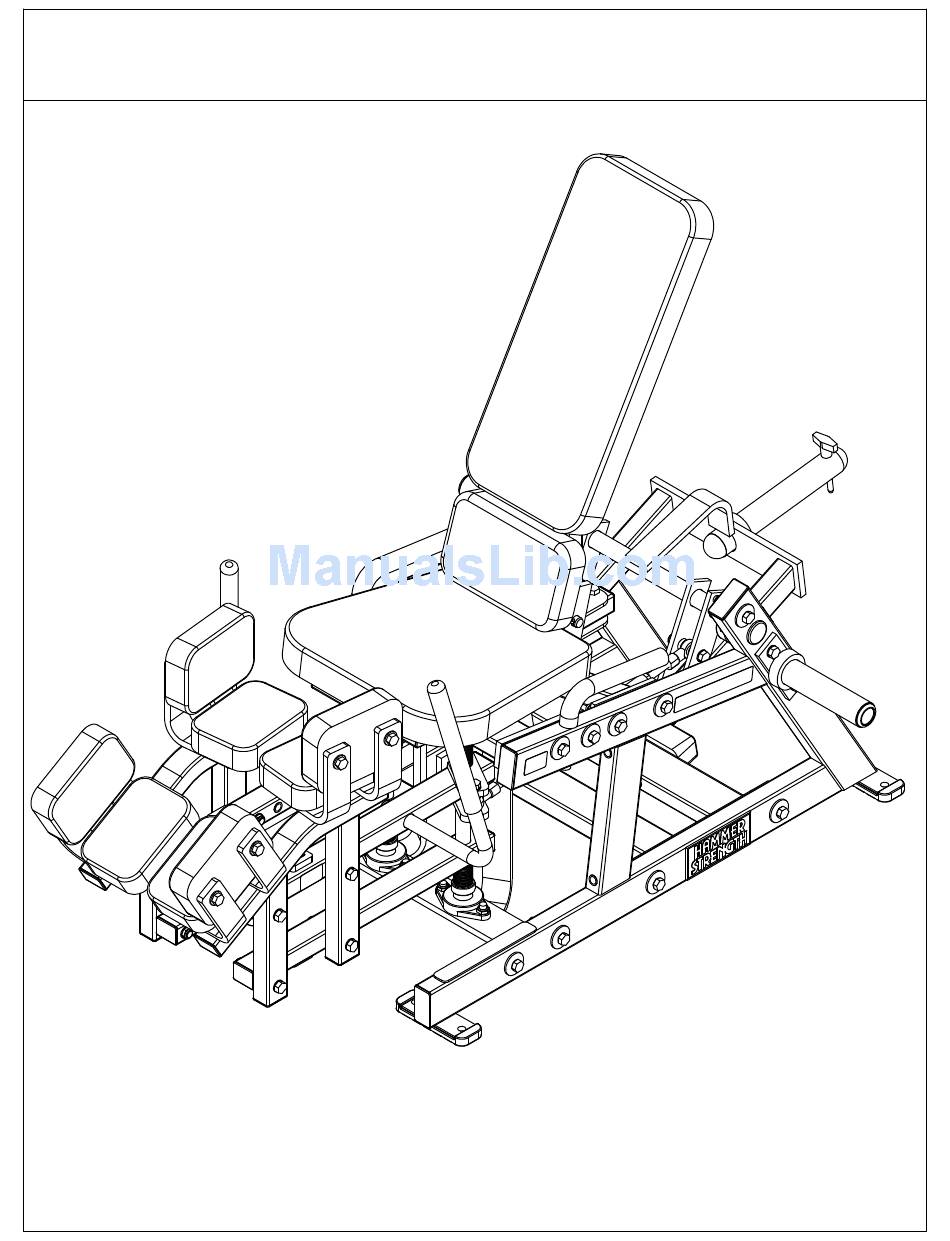

- Page 1 HAMMER STRENGTH EQUIPMENT PLABD PLATE LOADED ABDUCTOR REV: C04 WEIGHT = 270.1 lb LENGTH = 52" WIDTH = 57" HEIGHT = 47" PAGE 1 OF 11...
-
Page 2: Exploded View
HAMMER STRENGTH EQUIPMENT EXPLODED VIEW ITEM NO. QTY. PART NO. DESCRIPTION PLABD-CWB-0 ASSY, PLABD, WORKBOX PLABD-CSFL-1 ASSY, PLABD, LEFT SIDE FRAME PLABD-CBX-0 ASSY, PLABD, BOTTOM FRAME PLABD-CSFR-1 ASSY, PLABD, RIGHT SIDE FRAME PLABD-CHX-2 ASSY, PLABD, WEIGHT ROD PLABD-CMAL-1 ASSY, PLABD, LEFT MARM PLABD-CMAR-1 ASSY, PLABD, RIGHT MARM PLABD-RX-0... - Page 3 HAMMER STRENGTH EQUIPMENT PLABD-CAJST-0, ASSY, PLABD, SEAT BACK ITEM NO. QTY. PART NO. DESCRIPTION PLABD-AJST-0 WLDMT, PLABD, SEAT BACK H-HPLUG (REG) 9/16IN HOLE PLUG RC1530-1Q1 CAP:1-1/2 X 3 RECTANGLE PLUG STD SEAT PIN LONG SEAT PIN (HDADJ) WEIGHT = 20 lb LENGTH = 34 1/2"...
- Page 4 HAMMER STRENGTH EQUIPMENT PLABD-CBX-0, ASSY, PLABD, BOTTOM FRAME ITEM NO. QTY. PART NO. DESCRIPTION PLABD-BX-0 WLDMT, PLABD, BOTTOM X-FRAME WASH.5SAE 1/2" SAE FLAT WASHER WASH.5STAR 1/2" INTERNAL LOCK WASHER NUT.5LOCK 1/2 DIA THICK LOCK NUT HHB.5X4.5 1/2 X 4 1/2 BOLT H-BUMP-MED MM2 MEDIUM WEIGHT = 19 lb LENGTH = 14"...
-
Page 5: Table Of Contents
HAMMER STRENGTH EQUIPMENT PLABD-CHX-2, ASSY, PLABD, WEIGHT ROD ITEM NO. QTY. PART NO. PLABD-HX-1 RC1520-1Q1 RUBCAP1-2 H-RUBRNG SELECTOR PIN-3 H-HPLUG (REG) DESCRIPTION WLDMT, PLABD, WEIGHT ROD CAP:1-1/2 X 2 RECTANGLE PLUG RUBBER CAP #1 MM5 RING SELECTOR PIN 3 IN. 9/16IN HOLE PLUG WEIGHT = 32 lb LENGTH = 24"... -
Page 6: Item No. Qty. Part No
HAMMER STRENGTH EQUIPMENT PLABD-CMAL-1, ASSY, PLABD, LEFT MARM ITEM NO. QTY. PART NO. PLABD-MAL-1 10 WASH.5STAR HHB.5X4 NUT.5JAMLOCK WASH.5SAE NUT.5LOCK HHB.5X2 RC1520-1Q1 H-HPLUG (REG) ACCORDIAN H-BUMP-MED STAY CLEAR H-GRIP PLABD-ETCL-0 H-BEAR-SML DESCRIPTION WLDMT, PLABD LEFT MA 1/2" INTERNAL LOCK WASHER 1/2 X 4 BOLT 1/2 THIN LOCK NUT 1/2"... - Page 7 HAMMER STRENGTH EQUIPMENT PLABD-ETCL-0, WLDMT, PLABD ETC LEFT WEIGHT = 22 lb LENGTH = 19 1/2" WIDTH = 5 7/8" HEIGHT = 20" PAGE 7 OF 11...
-
Page 8: 1 Plabd
HAMMER STRENGTH EQUIPMENT PLABD-CSFL-1, ASSY, PLABD, LEFT SIDE FRAME ITEM NO. QTY. PART NO. PLABD-SF-0 H-BACK-WASH NUT.5LOCK HHB.5X3 H-LOCK-PLUG(LARGE) LARGE LOCKING PLUG H-HPLUG (REG) RC1530-1Q1 H-NAME PLATE ADDUCTOR NONSKID 1 X 9 STAY CLEAR H-GRIP H-BEAR-LGE DESCRIPTION WLDMT, PLABD SF BACKING WASHER 1/2 DIA THICK LOCK NUT 1/2 X 3 BOLT... -
Page 9: Rc1520-1Q1 Rubcap1-2
HAMMER STRENGTH EQUIPMENT PLABD-CST-0, ASSY, PLABD, SEAT MOUNT ITEM NO. QTY. PART NO. PLABD-ST-0 HHB.5X2.5 NUT.5JAMLOCK H-SEATRCKS-SHORT RC1520-1Q1 DESCRIPTION WLDTM, PLABD, SEAT MOUNT 1/2 X 2 1/2 BOLT 1/2 THIN LOCK NUT ORIGINAL SEAT RACK CAP:1-1/2 X 2 RECTANGLE PLUG WEIGHT = 14 lb LENGTH = 16"... - Page 10 HAMMER STRENGTH EQUIPMENT PLABD-CWB-0, ASSY, PLABD, WORKBOX ITEM NO. QTY. PART NO. PLABD-WB-0 WASH.5STAR HHB.5X4.5 NUT.5LOCK HHB.5X3 H-BACK-WASH WASH.5SAE HHB.5X1.5 HHB.5X2 NUT.5JAMLOCK RC1520-1Q1 SERIAL NUMBER DESCRIPTION WLDMT, PLABD, WORKBOX 1/2" INTERNAL LOCK WASHER 1/2 X 4 1/2 BOLT 1/2 DIA THICK LOCK NUT 1/2 X 3 BOLT BACKING WASHER 1/2"...
- Page 11 HAMMER STRENGTH EQUIPMENT H-HORN-ASSY: WEIGHT HORN ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION H-HORN WLDMT, WEIGHT HORN 8078001 CAP, END 1.75 DIA RD 14-20 GA H-RUBRNG MM5 RING WEIGHT = 3 1/4 lb LENGTH = 8 5/8" WIDTH = 6" HEIGHT = 3"...
