Connection

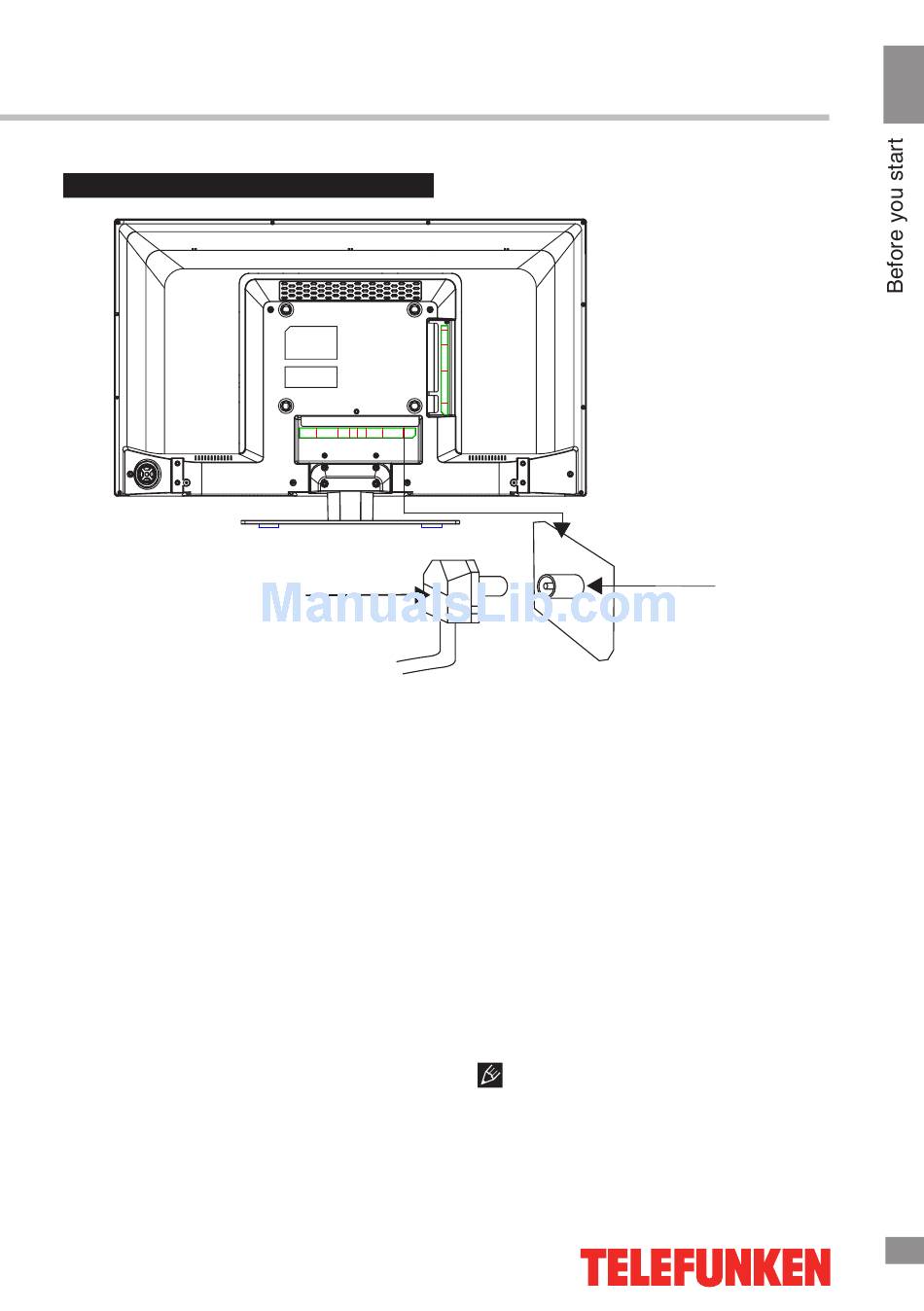

Antenna cable connector

Outdoor antenna connection

Use 75Ω cable plug or 300-75Ω impedance
converter to plug in antenna input terminal on
the rear of the cabinet.

Other connections

• Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to the
'Audio in' socket.
• Connect the video source to the Video
IN jack by RCA cable (it is shared with the
component jack).
• Component input YPbPr/YCbCr is intend-
ed to receive component video signal from the
external device. Connection is made with the
help of a special component cable. To receive
audio signal for component video, please use
the audio input of this unit.
• Plug the power cable in the electric outlet,
making sure the current voltage is supported.
75 Ohm co-axis cable
Before you start
TVRF antenna jack
• When using the LED as a computer
screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).
• If the video source has a HDMI output
jack, you can connect the signal to the
monitor by the HDMI cable (not included).
Use the HDMI-2(MHL) input to connect your
smartphone via a special cable (not included)
to see the digital content on the TV screen.
• Coaxial SPDIF output is intended for
transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection.
• PCMCIA slot is used for CI modules that
are obtained from your digital TV provider.
Please note that video input and
component input (YPbPr) share the same
socket so make sure that if the one or the other
input is used, you choose the corresponding
source signal (press the SOURCE button).
