CHANNEL ACTIVITY LEDS - Indicates channel activity. The LEDs light when the attenuation applied by the auto
matic mixing algorithm is less than or equal to 6dB. The indication of channel activity is responsive to the Input
Qualification and Output Hold time parameters, which may be set in the Miscellaneous tab of the AM16/12 control
panel.
RESET DEFAULTS button - This button will reset the unit to factory defaults when held down while the power switch
is turned on.
LECTROSONICS, INC.
RIO RANCHO, NM – USA
FRONT PANEL DESCRIPTION
AUTOMATIC MATRIX MIXER

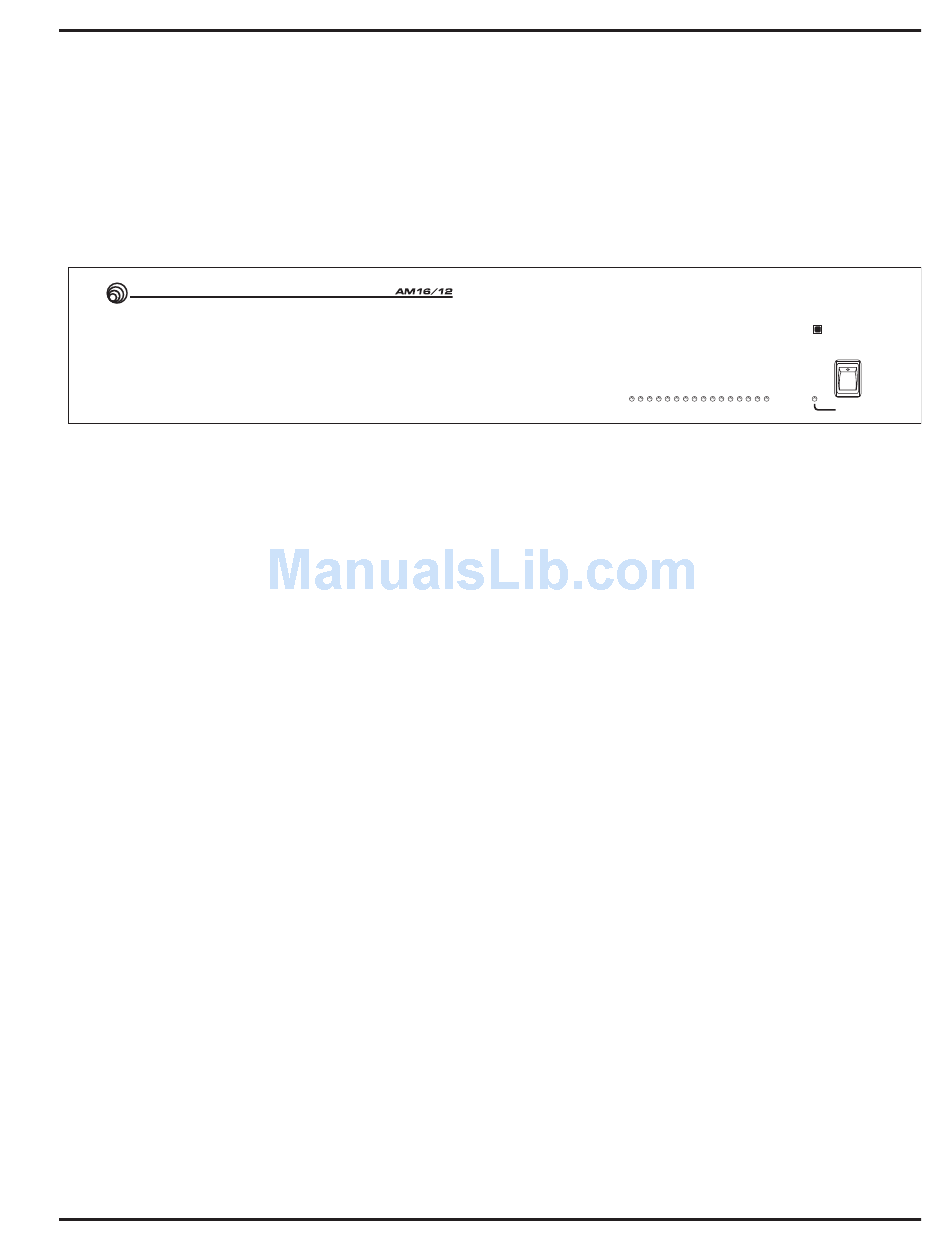

AM16/12 Front Panel
Rio Rancho, NM – USA
16 Channel Automatic Matrix Mixer
RESET
DEFAULTS
CHANNEL ACTIVITY
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16
POWER
7
