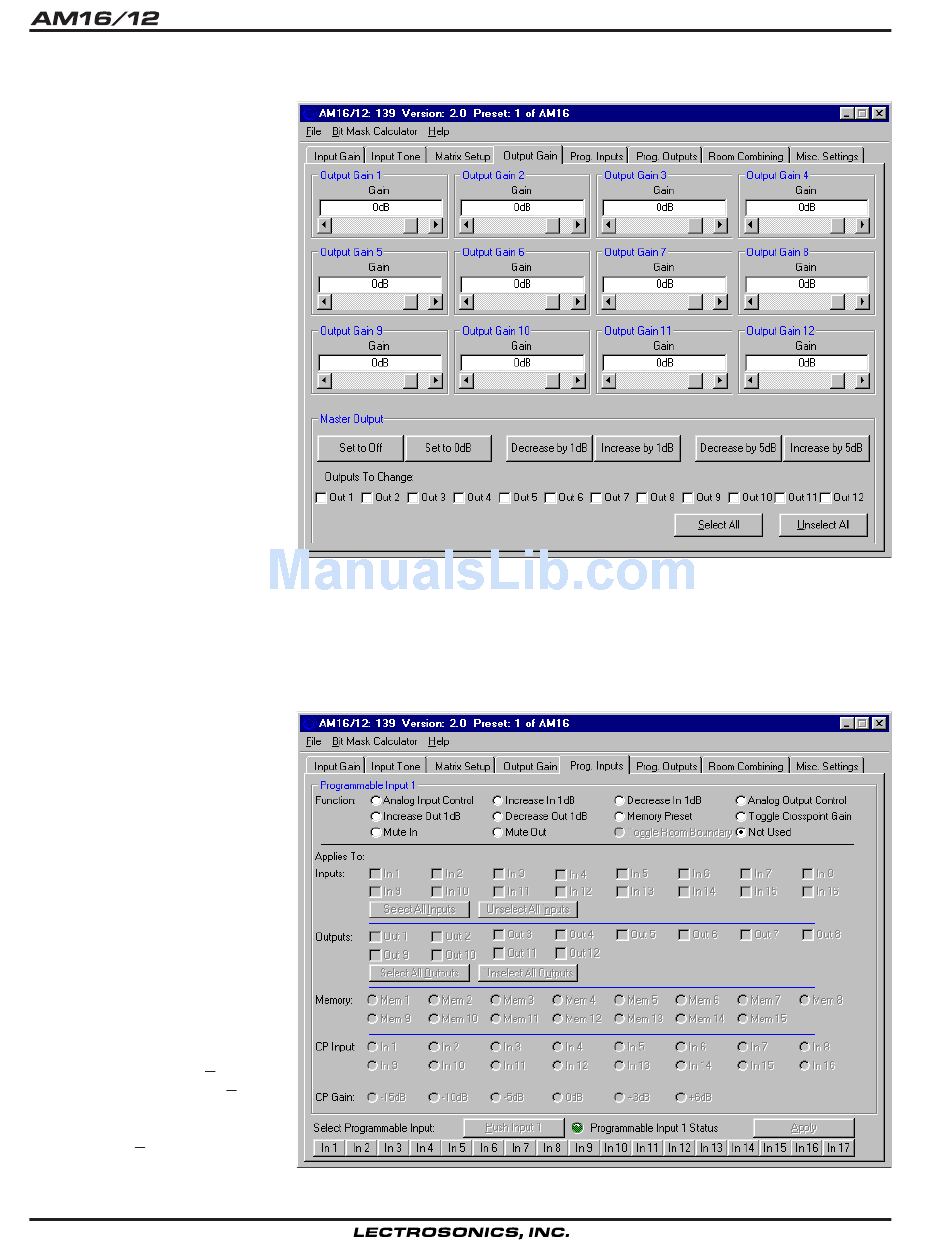

Output Gain Tab
The Output Gain tab allows the
output gain levels to be set.
Gain, Outputs 1 - 12 - Allows the
output gain to be set between
+10dB and -68dB or "Off". The
background color of the output
gain box will change from white to
red if the output is muted by
actuation of the Mute Output
function of a programmable input.
The output gain scroll bar will also
be disabled while the output is
muted.
Short Cuts:
A left mouse click on
the gain box will set the output
gain to 0dB, while a right mouse
click will set the output gain to Off.
Master Output Section
The Master Output section
provides a convenient way to apply
gain changes to more than one
output at a time. The six buttons
(Set to Off, Set to 0dB, Decrease
by 1dB, Increase by 1dB, Decrease by 5dB, and Increase by 5dB) facilitate several common gain manipulations. Their
action is applied to any output whose check box is checked. The Select All and Unselect All buttons provide a quick way
to apply gain changes to all channels simultaneously. Note that the Increase and Decrease buttons are push-and-hold,
and will increment or decrement the output gain for as long as they are held down.
Programmable Inputs Tab
The AM16/12 has 17 program­
mable inputs (available on the 25
pin D-Sub connector on the rear
panel) which allow control of a
wide variety of AM16/12 functions.
Only the parameters in the
"Applies To" section which are
associated with each specific
programmable input function will
be enabled as you select different
functions. All other parameters are
disabled. This eliminates invalid
Function/Applies To settings. Each
of the available functions is
explained below.
Hint:
If the function (or any
associated inputs, outputs, etc.) of
a programmable input is changed
on the control panel, the Apply
button will be enabled. The Apply
button is located in the lower right
hand corner of the Programmable
Input tab. The Apply button must
be clicked before any changes are
actually applied to the active
16
