A programmable output whose function is Programmable Input State will be active (i.e. conducting to ground) or
inactive (i.e. open) as follows depending on the function of the programmable input with which it is associated:
Function
Analog In Control
Increase In 1dB:
Decrease In 1dB:
Analog Out Control
Increase Out 1dB:
Decrease Out 1dB:
Memory Preset:
Toggle Crosspoint Gain:
Mute In:
Mute Out:

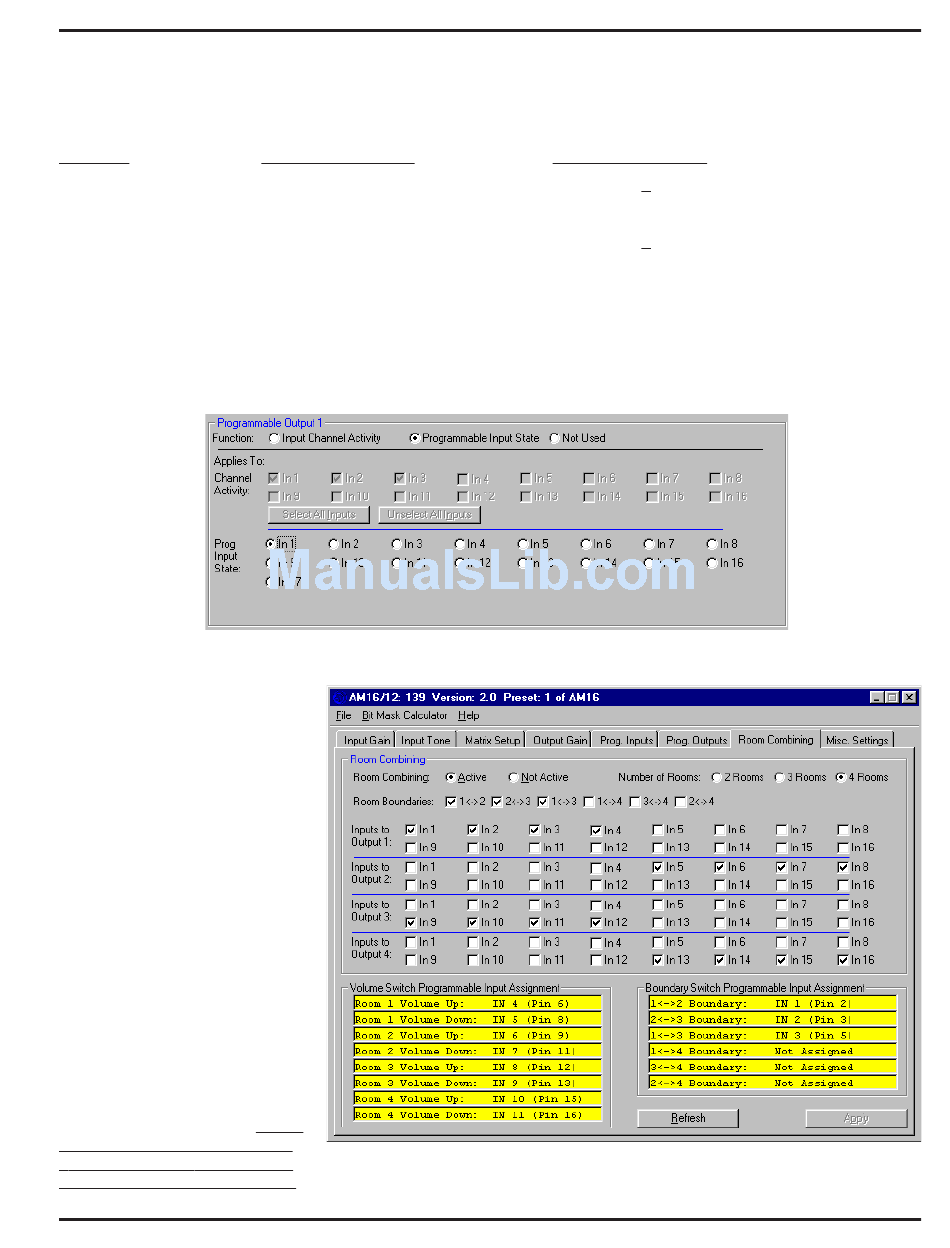

The screen below shows programmable output 1 indicating the status of programmable input 1.
Room Combining Tab
The AM16/12 has built-in room
combining capability to support
up to 4 rooms. Note that up to 8
rooms may be combined (using
the 8 NOM busses available in
the AM16/12), but control for
setups larger than 4 rooms must
be provided by an external
controller such as an AMX or
Crestron control system. Built-in
support includes automatic
configuration of room combining
functions using some of the
programmable inputs, which will
automatically be assigned for
room boundary connecting and
volume control. Note that any
programmable inputs used for
room combining are not available
for general use. Programmable
outputs will automatically be
assigned to reflect the status of
the room boundaries (i.e. con­
nected or not connected). These
assignments will take priority
over any other programmable
input and output assignments.
State when LED On
Attenuation < 15dB
Contact closure on prog input
Contact closure on prog input
Attenuation < 15dB
Contact closure on prog input
Contact closure on prog input
Associated memory is active
Input-to-output(s) connection made
Associated input(s) not muted
Associated output(s) not muted
Room combiner settings will overwrite other settings made on other
Rio Rancho, NM – USA
16 Channel Automatic Matrix Mixer
State when LED Off
Attenuation > 15dB
No contact closure on prog input
No contact closure on prog input
Attenuation > 15dB
No contact closure on prog input
No contact closure on prog input
Associated memory is not active
Input - output(s) connection not made
Associated input(s) muted
Associated output(s) muted
sources when the "Active" button is selected.
