16 Channel Automatic Matrix Mixer
Increase Out 1dB / Decrease Out
1dB - Allows one or more output
gains to be controlled by a contact
closure on a programmable input
pin. Increase and Decrease output
gain control goes from a maximum
of 0dB gain to a minimum of 30dB
attenuation, plus "Off". The gain
change resolution is 1dB. In the
case of Increase Out 1dB, each
contact closure will increment the
output(s) gains by 1dB until 0dB is
reached. Decrease Out 1dB will
decrement the output(s) gains by
1dB until either "Off" or Rear Panel
Minimum Output Gain is reached.
If the contact closure is pushed
and held, it will continue to incre­
ment or decrement until it is
released or the gain reaches its
high or low limit. The screen

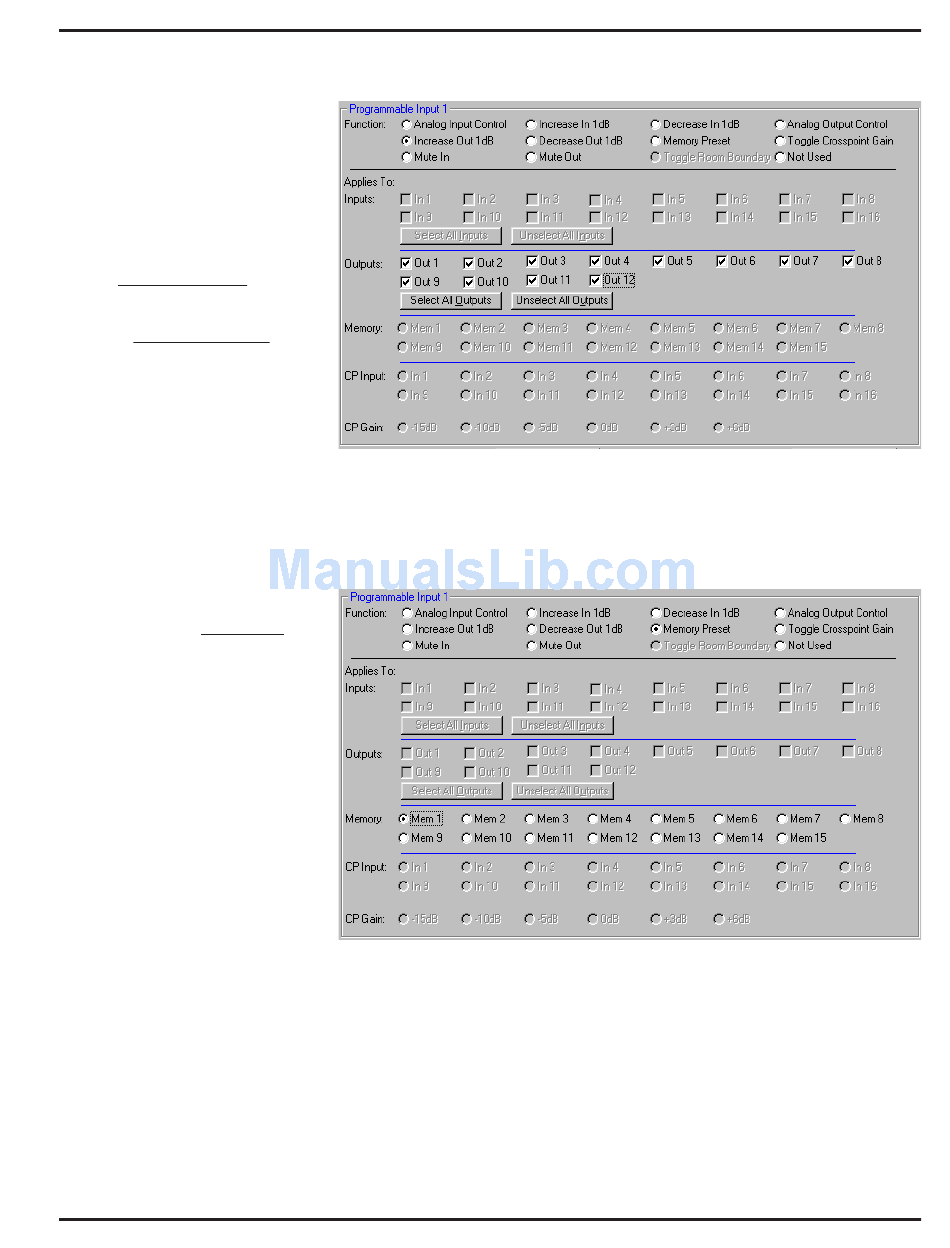

shown to the right indicates that
the function of programmable input
1 is Increase Out 1dB control of all
outputs.
Memory Preset - Allows one of
the 15 AM16/12 memory presets
to be recalled by a momentary
contact closure on a program­
mable input pin. If you are using
two or more programmable inputs
for memory recall, you will want to
set up and apply all programmable
input/memory preset associations
and download the active setup to
all preset memories you'll be using.
This guarantees that the desired
programmable input/memory
preset associations are stored in
all memories of interest. The
screen to the right indicates that
the function of programmable input
1 is to recall AM16/12 Memory
Preset 1.
19
