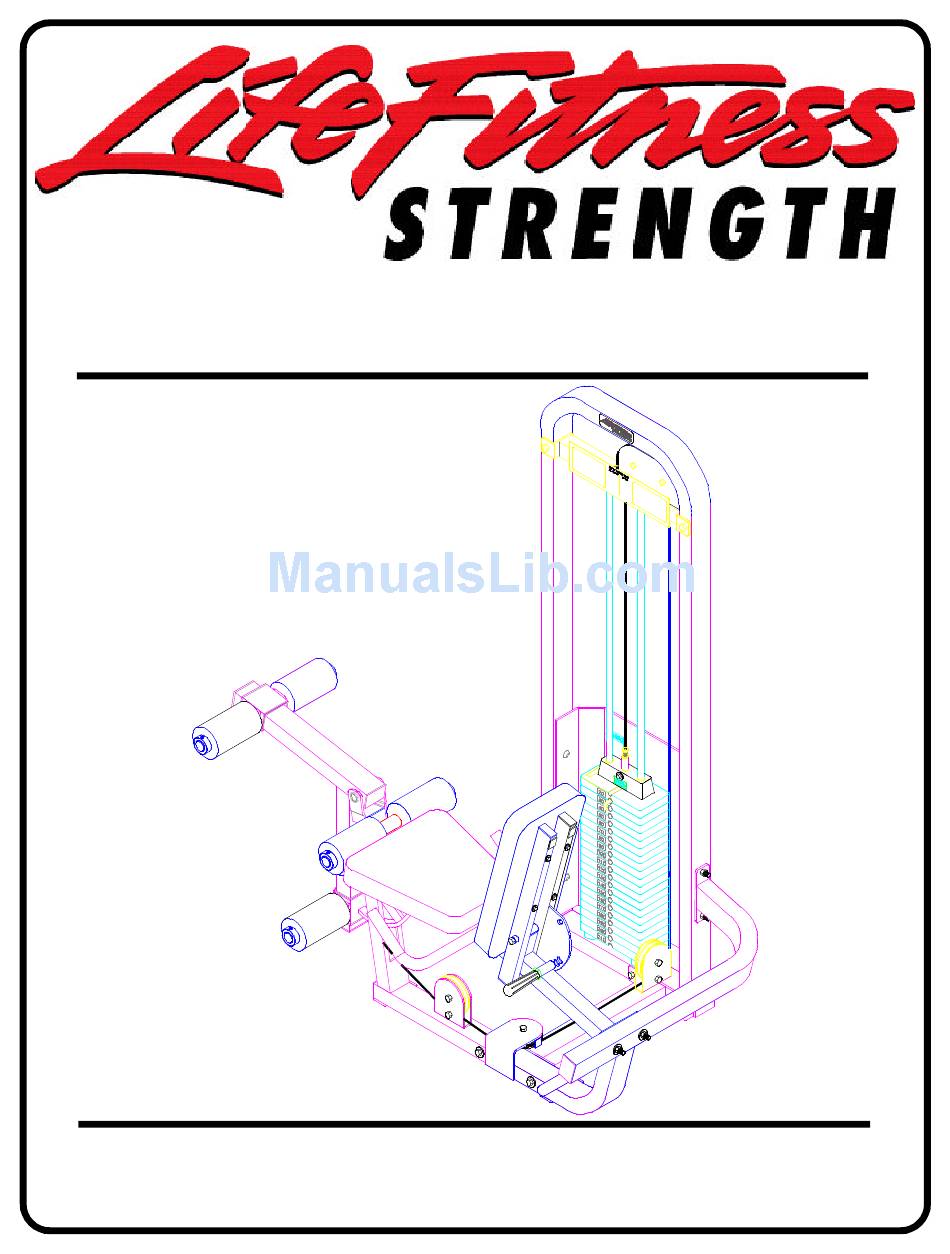

- Page 1 8235 LEG EXTENSION/LEG CURL ASSEMBLY INSTRUCTIONS Part # 6869701 Revision:2/21/00...
-
Page 2: Important Notes
2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local LIFE FITNESS STRENGTH distributor or call the LIFE FITNESS STRENGTH customer service department at (800) 328-9714. -
Page 3: Parts List
PART # DESCRIPTION 6793303 TOWER 6662303 LEG EXT HANDLE LEFT 6662203 LEG EXT HANDLE RIGHT 6764901 4 X 7" ROLLER PAD 6782301 63-1/2" GUIDE ROD 6770502 PAD SLEEVE 6777403 BENCH FRAME 6780703 LOWER CROSS SUPPORT 6867203 LEG CURL/EXTENSION 6781303 TOWER BRACE 6698303 UPPER CROSS SUPPORT 6625502... - Page 4 33 1/2 X 4” FIGURE 1 STEP 1: • LOOSELY assemble LOWER CROSS SUPPORT (8) to the TOWER (1) using two 1/2 X 4” BOLTS (33), two 1/2” WASHERS (40) and one 1/2” LOCK NUT (43). See FIGURE 1. • Slide the SHROUD (16) between the TOWER (1) as shown in FIGURE 1.
- Page 5 3/8 X 1” BUTTON HEAD CAP SCREW FIGURE 2 STEP 2: • LOOSELY assemble BENCH FRAME (7) to the LOWER CROSS SUPPORT (8) using two 1/2 X 4” BOLTS (33), two 1/2” WASHERS (40) and two 1/2” LOCK NUTS (43). See FIGURE 2. •...
- Page 6 FIGURE 3 STEP 3: • SECURELY assemble the LEFT (2) and RIGHT (3) LEG EXT. HANDLES to the BENCH FRAME (7) using two 3/8 X 3-1/4” BOLTS (35), four 3/8” WASHERS (41), and two 3/8” LOCK NUTS (44). See FIGURE 3. •...
- Page 7 3/8 X 1-1/4” 38 FIGURE 5 STEP 5: • SECURELY assemble SEAT PAD (15) to HINGE TABS (45) using two 3/8 X 1-1/4” BOLTS (38) and two 3/8” WASHERS (41). See FIGURE 5. • SECURELY assemble one 1/2 X 7-7/8” SPRING PIN (46) to the BENCH FRAME (7) as shown in FIGURE 5. (NOTE: IMPORTANT! Tighten SPRING PIN completely.) FIGURE 6 STEP 6:...
- Page 8 FIGURE 7 STEP 7: • SECURELY assemble BACK PAD (14) to the RIGHT & LEFT PAD SUPPORTS (12) (13) using four 3/8 X 3” BOLTS (36) and four 3/8” WASHERS (41) as shown in FIGURE 7. FIGURE 8 STEP 8: •...
- Page 9 STEP 9: • Attach LEG PEDESTAL (9) to the BENCH FRAME (7) using two 3/8 X 1” BUTTON HEAD CAP SCREWS (39) and two 3/8” LOCKWASHERS (42) as shown in FIGURE 9. (NOTE: Both button head cap screws must be tightened at the same time using two allen wrenches.) FIGURE 10...
- Page 10 STEP 11: • Snap two WEIGHT PLATE BUSHINGS (25) into the top of all twenty WEIGHT PLATES (57) as shown in FIGURE 11. 3/8 X 1-1/4” 38 FIGURE 11 FIGURE 12 STEP 12: • Insert the two GUIDE RODS (5) into the base of the TOWER (1) as shown in FIGURE 12.
- Page 11 FIGURE 13 STEP 13: • Attach two 1 X 1” GLIDES (29) to the LEFT & RIGHT PAD SUPPORTS approximately where shown in FIGURE 13. FIGURE 14 37 3/8 X 2” STEP 14: • SECURELY assemble two 4-1/2” PULLEYS (21) to the TOWER BRACE (10) using two 3/8 X 2” BOLTS (37), and two 3/8” LOCK NUTS (44).
- Page 12 33 1/2 X 4” FIGURE 15 STEP 15: • Place TOWER BRACE (10) over the GUIDE RODS (5) and SECURELY assemble TOWER BRACE (10) to TOWER (1) using two 1/2 X 4” BOLTS (33), two 1/2” WASHERS (40), and two 1/2” LOCK NUTS (43) as shown in FIGURE 15. •...
- Page 13 37 3/8 X 2” FIGURE 17 STEP 17: • SECURELY assemble three 4-1/2” PULLEYS (21) to the brackets on the BENCH FRAME (7) and LOWER CROSS SUPPORT (8), us- ing four 3/8 X 2” BOLTS (37), one 2-7/8” CABLE CLIP (27), and four 3/8” LOCK NUTS (44) as shown in FIGURE 17. (NOTE: Posi- tion the 2-7/8”...
- Page 14 FIGURE 19 STEP 19: • Insert ball end of CABLE (23) through slot of the BENCH FRAME (7) and around LEG PEDESTAL (9) as shown in FIGURE 19. • Assemble the KEYHOLE CLEVIS (17) to the tab on the cam of the LEG PEDESTAL (9) using one CLEVIS PIN (22) and one COTTER PIN (24) as shown in FIGURE 19.
- Page 15 CABLE accordingly and retighten the jam nut. Thank you for purchasing the LifeFitness 8235 LEG EXTENSION/LEG CURL. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at (800) 328-9714.
