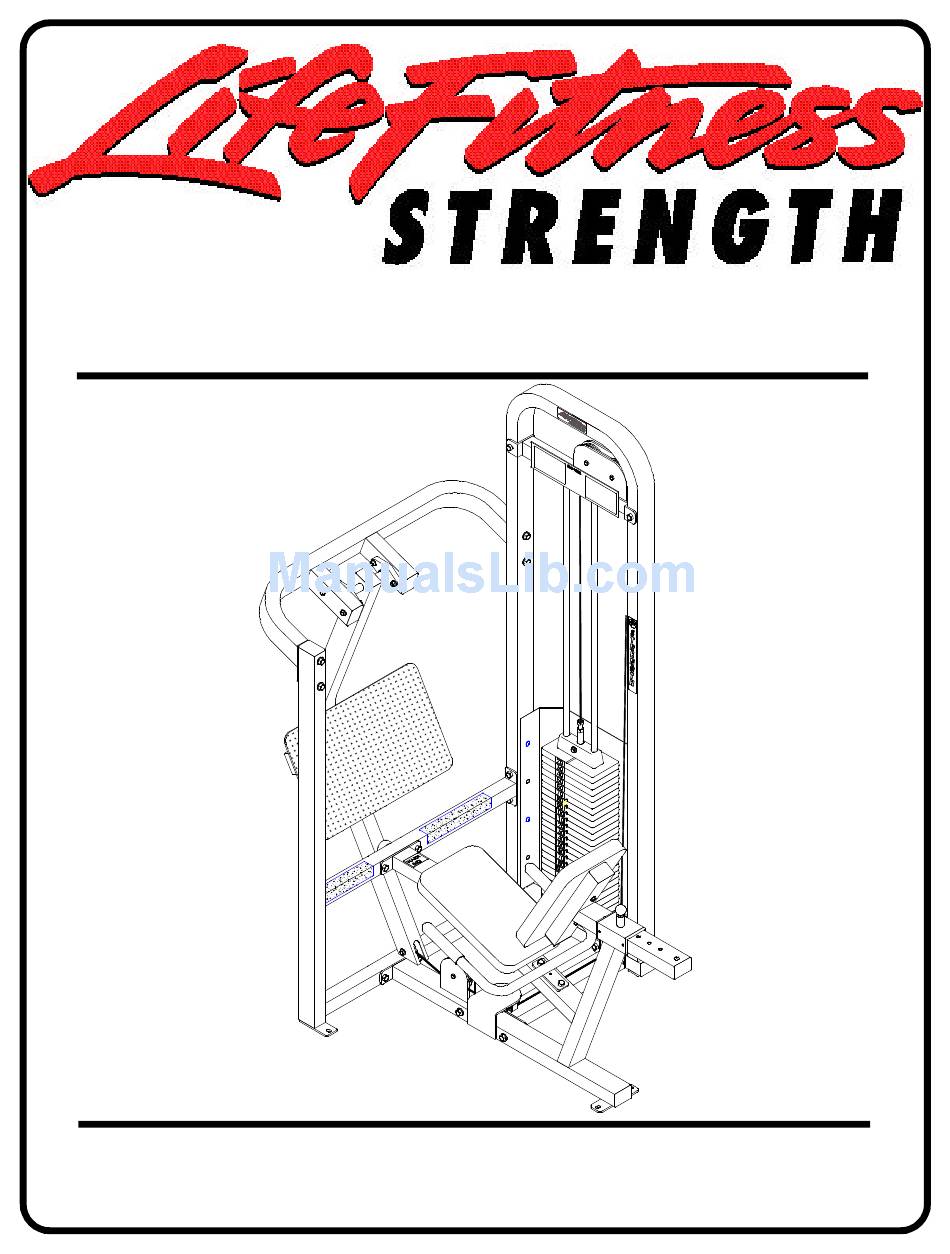

Page 1: Assembly Instructions
8246 50 LB. ADD-ON KIT ASSEMBLY INSTRUCTIONS Part # 6813001 Revision: 1/11/99... -
Page 2: Tools Required For Assembly
Please note: * Thank you for purchasing the LIFE FITNESS 8246 50 LB ADD-ON KIT. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. -
Page 3: Parts List
PART # DESCRIPTION 6284501 25 HOLE WEIGHT STACK SHAFT 6812801 166-5/8” CABLE ASSEMBLY 6382301 WEIGHT PLATE BUSHING 10 CT FIGURE 1 STEP 1: • Unscrew the threaded end of the CABLE (68074) from the WEIGHT STACK SHAFT of the HEAD PLATE. •... - Page 4 FIGURE 2 STEP 2: • Snap two WEIGHT PLATE BUSHINGS (3) into the top of all five WEIGHT PLATES (6) as shown in FIGURE 2. FIGURE 3 TOWER TOWER BRACE 1/2 X 4” BOLT (EXISTING) GUIDE RODS SHAFT COLLARS STEP 3: •...
- Page 5 HEAD PLATE • Unbolt the old WEIGHT STACK SHAFT from the HEAD PLATE and replace it with the new 25 HOLE WEIGHT STACK SHAFT (1). (NOTE: The bolt hole in the HEAD PLATE should be on top. Please discard the old WEIGHT STACK SHAFT.) GUIDE ROD •...
- Page 6 FIGURE 5 1/2 X 4” BOLT STEP 5: • Place TOWER BRACE over the GUIDE RODS and securely fasten TOWER BRACE to TOWER using previously removed 1/2” X 4” BOLTS, 1/2” WASHERS, AND 1/2” NUTS as shown in FIGURE 5. •...
- Page 7 FIGURE 7 STEP 7: • Screw the threaded end of the new CABLE (68128) (2) approximately 3/4” into the end of the WEIGHT STACK SHAFT (1) and tighten jam nut securely. • If the HEAD PLATE does not sit on top of the first WEIGHT PLATE, push the head plate down, insert the SELECTOR PIN and perform several repetitions on the machine.
