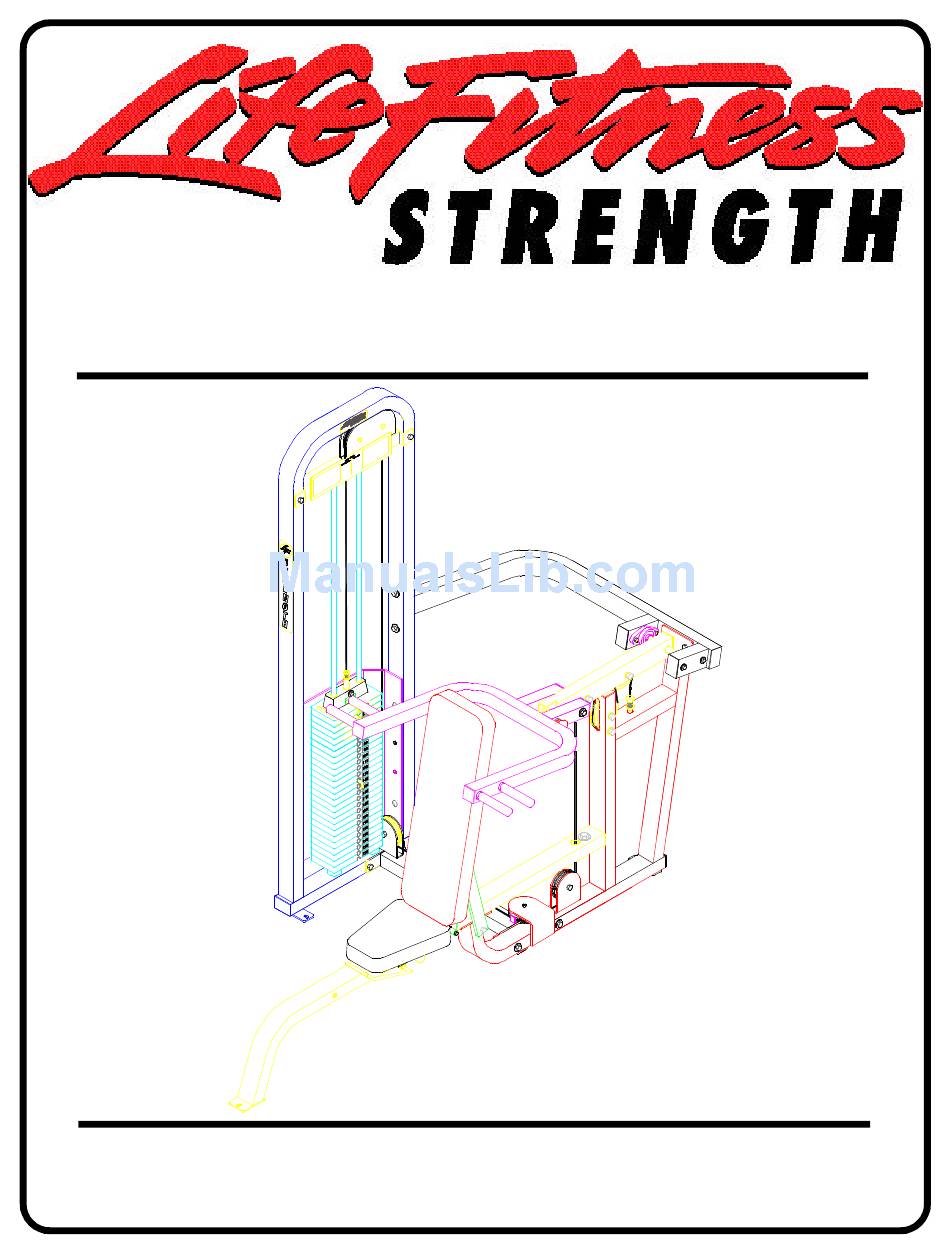

Page 1: Assembly Instructions
8216 50 LB. ADD-ON KIT ASSEMBLY INSTRUCTIONS Part # 6812501 Revision: 1/12/99... -
Page 2: Important Notes
Please note: * Thank you for purchasing the LIFE FITNESS 8216 50 LB ADD-ON KIT. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. -
Page 3: Parts List
PART # DESCRIPTION 6284501 25 HOLE WEIGHT STACK SHAFT 6812701 212-3/4” CABLE ASSEMBLY 6382301 WEIGHT PLATE BUSHING 10 CT CABLE FIGURE 1 STEP 1: • Unscrew the threaded end of the CABLE (67846) from the WEIGHT STACK SHAFT of the HEAD PLATE. •... - Page 4 FIGURE 2 STEP 2: • Snap two WEIGHT PLATE BUSHINGS (3) into the top of all five WEIGHT PLATES (6) as shown in FIGURE 2. FIGURE 3 TOWER TOWER BRACE 1/2 X 4” BOLT (EXISTING) GUIDE RODS SHAFT COLLARS STEP 3: •...
- Page 5 STEP 4: • Tilt the GUIDE RODS back and remove the HEAD PLATE ASSEMBLY, and the twenty WEIGHT PLATES. • Unbolt the old WEIGHT STACK SHAFT from the HEAD PLATE and replace it with the new 25 HOLE WEIGHT STACK SHAFT (1). (NOTE: The bolt hole in the HEAD PLATE should be on top.
- Page 6 FIGURE 5 TOWER TOWER BRACE GUIDE RODS SHAFT COLLARS STEP 5: • Place TOWER BRACE over the GUIDE RODS and securely fasten TOWER BRACE to TOWER using previously removed 1/2” X 4” BOLTS, 1/2” WASHERS, AND 1/2” NUTS as shown in FIGURE 5. •...
- Page 7 CABLE accordingly and retighten the jam nut. Thank you for purchasing the LifeFitness 8216 50 LB. ADD-ON KIT. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at (800) 328-9714.
