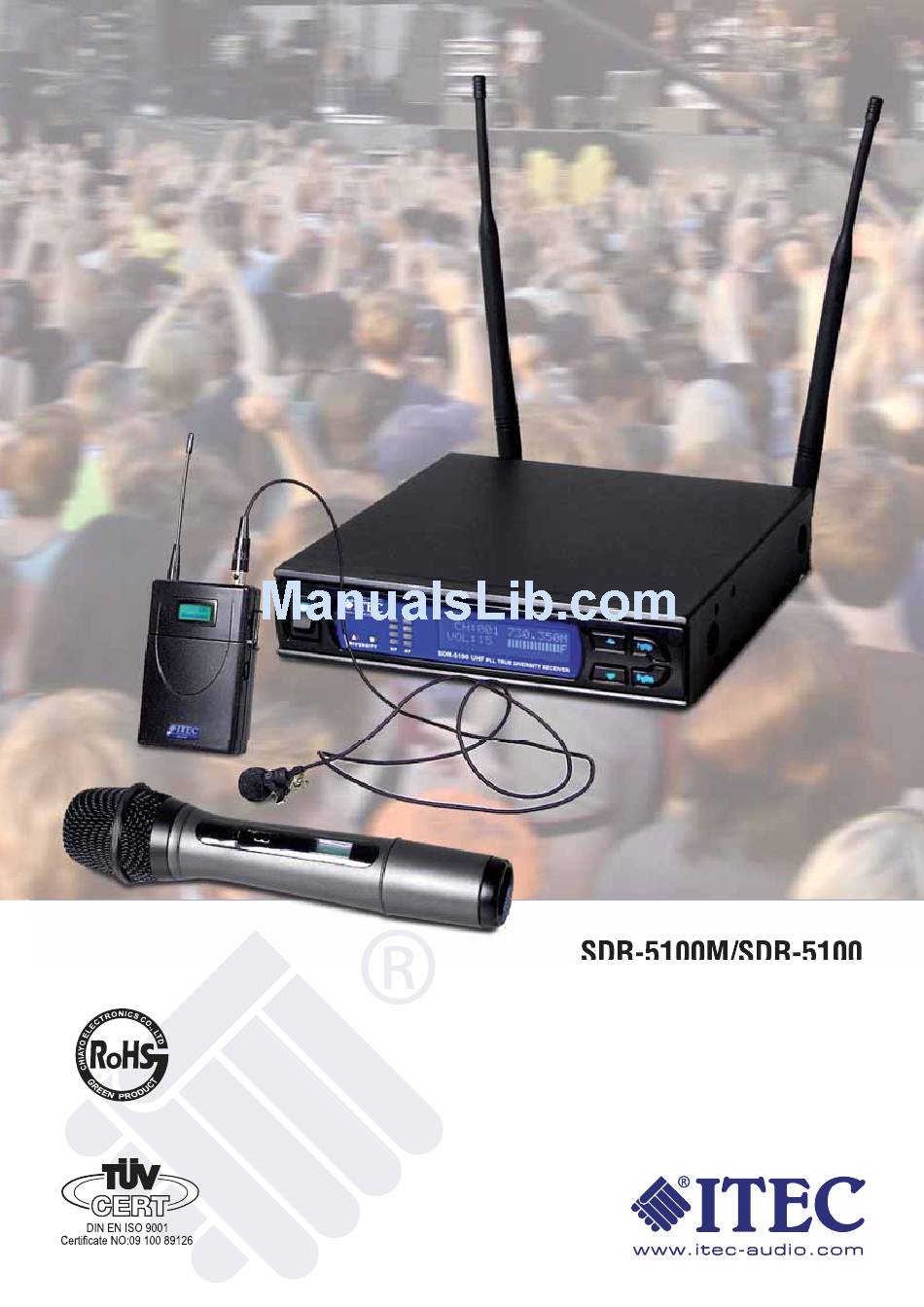

- Page 1 SDR-5100M/SDR-5100 WT-5100/WM-5100 UHF PLL 100 CHANNEL WIRELESS SYSTEM OPERATING MANUAL GREEN PRODUCT It has been RoHS Compliant...
- Page 2 1.1. General features of the system With the ITEC 5100 you have a modern and professional wireless microphone system in the UHF domain available. The receivers (as the module receiver and the integrated 19” version) are true diversity receivers, ensuring a high operating distance and an undisturbed reception without short-term loss of communication.
-
Page 3: Receiver Installation
ITEC 5100 WIRELESS SYSTEM 2.1.1. Receiver Installation For best operation, the receiver should be at least 1m above the ground and at least 1m away from a wall or metal surface to minimize refl ection. The transmitter should also be at least 1m away from a wall or metal surface to minimize refl... -
Page 4: Rack Mounting
ITEC 5100 WIRELESS SYSTEM 2.1.3. Rack Mounting The ITEC SDR-5100 receiver is suitable for installations within 19” racks. For this purpose 2 different mounting adapters are available (see picture 3 and 4) Picture 3: Installation kit for one receiver (consisting of a short and a long angle bracket) - Page 5 ITEC 5100 WIRELESS SYSTEM 2.1.4.2 Volume adjustment The volume can be adjusted directly on the main display by pressing the bottoms in the range between 0 and 15. The new adjustments are stored automatically and remain in the event of a power failure.
- Page 6 ITEC 5100 WIRELESS SYSTEM 2.2. Diversity Module receiver ITEC SDR-5100M 1. Channel display 2. Channel selection (unit position) 3. Channel selection (decade) 4. Operation display 5. Diversity display (antenna A/B) 6. Scan 7. Squelch Set-up 8. On/Off switch plus level adjustment 2.2.1 Switching-on and level adjustment...
- Page 7 3.3 Operation with accumulators If you use accumulators together with your wireless microphone and the ITEC charger, check that in the battery case accumulators of the original manufacturer and no batteries are inserted. In case a replacement of the accu- mulators is needed use original parts only.
- Page 8 The pocket sender WT-5100 can be connected to the line-out socket of other audio equipment via the adaptor cable ITEC-MC12.A lapel microphone (Lavalier microphone, button microphone), which is suitable to the WT-5100 the ITEC-MC-12 is offered. Head sets are available in various variants, e.g. ITEC-MI and accordingly ITEC-MC.
-
Page 9: Level Adjustment
4.3 Operation with accumulators If you use accumulators together with your pocket sender and the ITEC charger, check that in the battery case accumulators of the original manufacturer and no batteries are inserted. In case a replacement of the accumu- lators is needed use original parts only. - Page 10 ITEC 5100 WIRELESS SYSTEM - UHF SDR 5100/WM 5100/WT 5100 - FREQUENCY LIST 9GMY710 (710MHz-730MHz) Chanel Fequenz Chanel Fequenz Chanel Frequency Chanel Frequency Chanel Frequency Chanel Frequency 710,300 727,500 714,500 719,300 723,950 728,000 711,500 728,400 714,800 719,600 724,100 728,150 712,400...
- Page 11 ITEC 5100 WIRELESS SYSTEM - UHF SDR 5100/WM 5100/WT 5100 - FREQUENCY LIST 9HOL654 (654MHz-674MHz) Chanel Fequenz Chanel Fequenz Chanel Frequency Chanel Frequency Chanel Frequency Chanel Frequency 654,300 671,500 658,500 663,300 667,950 672,000 655,500 672,400 658,800 663,600 668,100 672,150 656,400...
- Page 12 Connector strip 3.96 mm, 2 x 10-poles Dimensions (W x H x D) 78 x 38 x 152 mm Weight 0,15 kg ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com www.itec-audio.com MICROPHONES...
