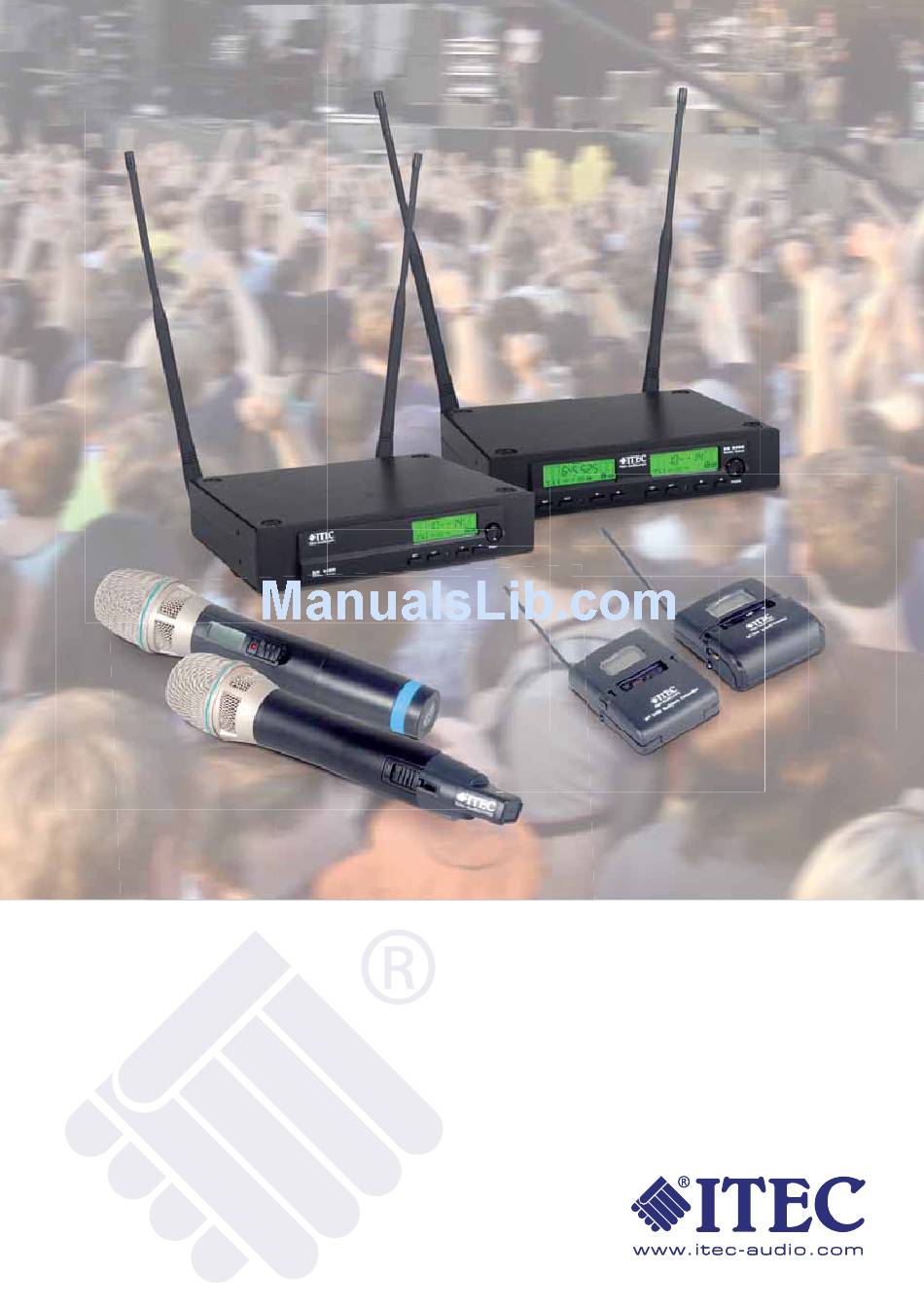

- Page 1 SR-5300/DR-5300/MR-5300 WM-5300/WT-5300/WM-5320/WT-5320/MT-92 PROFESSIONAL RADIO MICROPHONE SYSTEM IN THE UHF FREQUENCY RANGE MANUAL...
-
Page 2: Overview Of System Components
Double charging station for the charging of two WM 5320, WT 5320 or 18500 battery 1.2. Features of the system With the ITEC 5300, you have a modern and professional radio microphone system in the UHF frequency range. The receivers (the receiver module and the 19“ installation module) are True-Diversity receivers, guaranteeing a wide range and interference-free reception without temporary cancellations. - Page 3 ITEC 5300 RADIO MICROPHONE SYSTEMS 1.3. General assembly instructions 1.3.1. Positioning of the receiver For proper operation, the receiver should be po- sitioned as high as possible, at least, however, 1 m above the floor. The clearance from walls and metal surfaces should also be at least 1 m.
- Page 4 ITEC 5300 RADIO MICROPHONE SYSTEMS 2. Receiver 2.1. Diversity receiver ITEC SR-5300 IR DIODE MAIN SWITCH ON/OFF HF LEVEL BATTERY STATUS OF TRANSMITTER LF LEVEL ARROW KEYS FOR CHANGING SQUELCH PARAMETERS UPDATE CONNECTION AUDIO OUTPUT UNSYMMETRICAL ANTENNA B MIC LEVEL OR LINE LEVEL...
- Page 5 ITEC 5300 RADIO MICROPHONE SYSTEMS 2.2. Diversity receiver ITEC DR-5300 IR DIODE IR DIODE MAIN SWITCH ON/OFF ARROW KEYS ARROW KEYS FOR CHANGING FOR CHANGING PARAMETERS PARAMETERS UPDATE UPDATE AUDIO OUTPUT B SYMMETRICAL CONNECTION AUDIO OUTPUT B ASYMMETRICAL ANTENNA B...
-
Page 6: Hand-Held Microphones
ITEC 5300 RADIO MICROPHONE SYSTEMS 3. Hand-held microphones 3.1 ITEC WM-5300 DISPLAY GROUP , CHANNEL AND BATTERY IR DIODE (REAR) POWER LOCK LED BATTERY STATUS INDICATOR ON/OFF SWITCH 3.1.1 Replacement of the capsule The capsule can be unscrewed for replacement. The microphone is equipped with an electret capsule as standard. -
Page 7: Lithium Ion Battery
A dynamic capsule is available upon request. 3.2.2 Lithium ion battery The WM 5320 has a lithium ion battery of type 18500. When charging, only use the original ITEC-HC 80 char- ger. The external charging contacts enable charging by simply placing the microphone into the charging station without having to remove the battery. -
Page 8: Pocket Transmitter
ITEC 5300 RADIO MICROPHONE SYSTEMS 4. Pocket transmitter 4.1. ITEC WT-5300 HEADSET CONECTOR, LAVALIER MICROPHONE ETC. DISPLAY: MUTE BUTTON GROUP , CHANNEL AND BATTERY TRANSMISSION ANTENNA SET BUTTON MODE BUTTON IR DIODE ON/OFF BUTTON BATTERY COMPARTMENT 4.1.1 Settings The current settings are displayed by pressing the MODE button. To change a value, the SET button must be pressed for 10 seconds. - Page 9 (power lock) 4.2.2 Charging and replacing the lithium ion battery When charging, only use the original ITEC-HC 80 charger. The external charging contacts enable charging by simply placing the pocket transmitter into the charging station without having to remove the battery. However, chan- ging the battery and charging the removed battery are also possible (keep a spare battery for long periods of use).
-
Page 10: Installation Modules
ITEC 5300 RADIO MICROPHONE SYSTEMS 5. Installation modules 5.1. Receiver module ITEC MR 5300 CHANNEL INDICATOR RECEPTION INDICATOR ON/OFF BUTTON VOLUME CONTROL UPDATE IR DIODE LEVEL INDICATOR NOISE SUPPRESSSION (SQUELCH) Channel settings: Press the SCAN button for 2 seconds: 7-segment display flashes. Briefly pressing again switches over to the next channel. - Page 11 ITEC 5300 RADIO MICROPHONE SYSTEMS 5.2. Transmitter module ITEC MT 92 LIMIT INDICATOR CHANNEL INDICATOR (AUDIO SIGNAL TOO LARGE) CHANNEL SELECTOR SWITCH The module transmitter MT 92 cannot be updated via IR. Channel selection takes place manually by pressing the CH button The transmitter can be switched on and off by a long press of the CH button.
- Page 12 ITEC 5300 RADIO MICROPHONE SYSTEMS 6. The charging station HC 80 Using the charging station HC 80, not only hand-held microphones of type WM 5300, pocket transmitters of type WT 5300 can be individually charged, but also lithium-ion batteries of type 18500. A total of two of these units –...
- Page 13 ITEC 5300 RADIO MICROPHONE SYSTEMS MICROPHONES www.itec-audio.com...
- Page 14 ITEC 5300 RADIO MICROPHONE SYSTEMS - FREQUENCY LIST 7. Appendix: Frequency list Standard frequencies (6B) other frequency bands upon request. Gruppe SR 5300 MR 5300 DR 5300 645.275 645.525 645.775 646.025 664.100 645.675 664.950 664.425 644.200 645.525 646.075 646.325 646.575 646.825 645.700 647.175 645.800 644.925 644.700 646.050 652.400 652.650 652.900 653.150 651.100 651.175 646.300 645.675 645.450 647.025...
- Page 15 ITEC 5300 RADIO MICROPHONE SYSTEMS MICROPHONES www.itec-audio.com...
- Page 16 12 V DC (PSU 230 V AC / 12 V DC included) Dimensions, weight 90 x 80 x 150 mm (W x H x D), Weight=320 g ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, office@itec-audio.com, www.itec-audio.com www.itec-audio.com...
