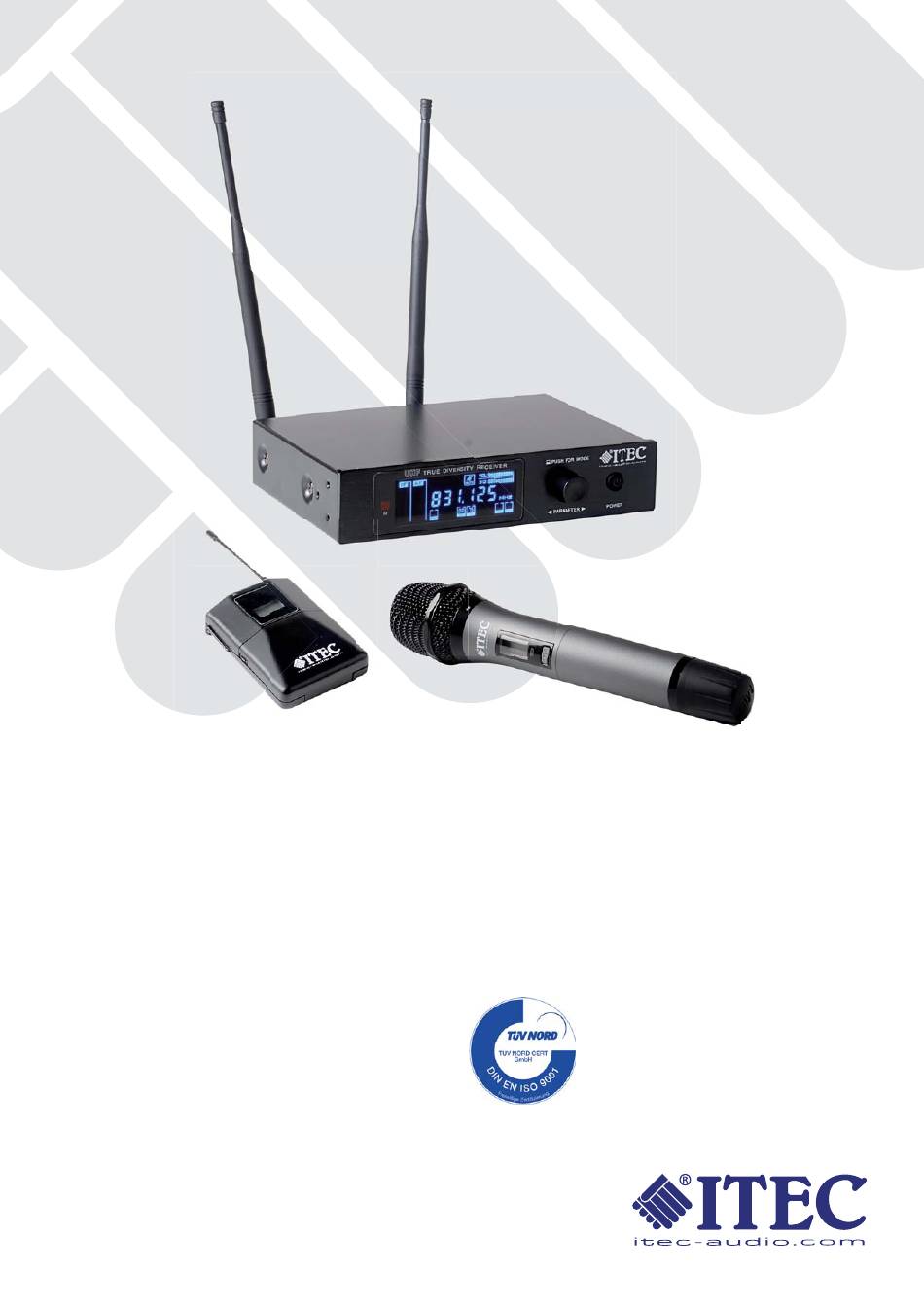

- Page 1 WM-6000/WT-6000/SDR-6000/SDR-6000M PROFESSIONAL RADIO MICROPHONE SYSTEM IN THE UHF FREQUENCY RANGE MANUAL Designed and Manufactured by ITEC Tontechnik und Industrieelektronik GesmbH 8200 Laßnitzthal 300 Austria / Europe UHF RADIO MICROPHONE SYSTEM 6000_EN_2023/10_REV_2024/03...
-
Page 2: Overview Of System Components
1.2. Features of the system With the ITEC 6000 you have a modern and professional wireless microphone system in the UHF frequency range. The receivers (the module receiver as well as the 19“ built-in model) are true diversity receivers, which guarantee a long range and interference-free reception without short-term cancellations. -
Page 3: Usage Instructions
ITEC RADIO MICROPHONE SYSTEMS 1.3. Usage instructions Be careful, risk of electric shock Acids To avoid the risk of fi re or electric shock, do Do not expose the device to cor- not open the case and contact a qualifi ed rosive liquids, acids or harsh clea- technician for repairs. -
Page 4: System Components
ITEC RADIO MICROPHONE SYSTEMS 1.4. System components These instructions cover all available components of the radio series 6000. Read the details relevant to you carefully. Thank you. There are various additions to the radio system. We will be happy to send you detailed documents upon request. - Page 5 ITEC RADIO MICROPHONE SYSTEMS Multi-channel operation: Many wireless microphones are often used at the same time in an event. This is easily possible today, but the operating frequencies must be carefully selected. When using several working frequencies at the same time, additional mixed signals are always created (= mathematical multiples of the selected working frequencies).
- Page 6 ITEC RADIO MICROPHONE SYSTEMS 1.3. General assembly instructions 1.3.1. Positioning of the receiver Take the receiver out of the packaging and mount the 2 receiver antennas. Align antennas vertically. There should be as direct a radio connection as possible between the microphone and receiver. Please pay atten-...
- Page 7 ITEC RADIO MICROPHONE SYSTEMS 2. Receiver 2.1. Diversity Receiver ITEC SDR-6000 IR DIODE MAIN SWITCH ON/OFF VOLUME DISPLAY MUTE SQUELCH FREQUENCY DISPLAY NAVIGATION BUTTON OR MENU BUTTON DC INPUT ANTENNA B XLR AUDIO- ANTENNA A OUTPUT LEVEL SWITCH AUX OUTPUT MIC/LINE JACK 6.35 MM...
- Page 8 ITEC RADIO MICROPHONE SYSTEMS SQ IIII (squelch = squelch) By pressing the navigation button you fi rst go to the desired function level! Only now are the settings avai- lable. If you turn the navigation button to the left, the number of visible bars is reduced...> The threshold becomes sharper and therefore the radio range is also reduced! If you turn the navigation button to the right, the number of visible bars increases...>...
-
Page 9: Hand-Held Microphone
ITEC RADIO MICROPHONE SYSTEMS 3. Hand-held microphone 3.1 ITEC WM-6000 LCD-DISPLAY AUDIO GAIN TRIMMER ON/OFF ANTENNA MICROPHONE HOUSING IR DISPLAY 3.1.1 Insert batteries Take down the rotating end of the case and you will have access to the battery compartment. Insert two AA size alkaline batteries according to the correct pola-... - Page 10 ITEC RADIO MICROPHONE SYSTEMS 4. Poket transmitter 4.1. ITEC WT-6000 ANTENNA ANTENNA ON/OFF OR MUTE OPERATION/MUTE DISPLAY MINI XLR INPUT LCD DISPLAY LCD DI 4.1.1 Insert batteries Fold down the bottom housing cover and you have ac- cess to the battery compartment. Insert two AA size alka- line batteries according to the correct polarity markings.
- Page 11 ITEC RADIO MICROPHONE SYSTEMS 5. Installation module 5.1. Receiver module ITEC SDR-6000M CHANNELDISPLAY IR SENSOR HF SIGNAL DISPLAY FREQUENCY DISPLAY LCD DISPLAY ON/OFF SWITCH VOLUME CONTROL LEVEL DISPLAY SET BUTTON (SAVE) DOWN UP (CHANNEL SELECTION) 5.1.1 Change channel/frequency 1. Press the ▲(up) or ▼(down) button until “FREQ” appears at the bottom.
- Page 12 ITEC RADIO MICROPHONE SYSTEMS 5.1.4 SQUELCH (SQ) setting (squelch) If interference occurs, reduce the receiver sensitivity. With lower sensitivity, the susceptibility to interference is automatically reduced, but so is the volume and thus the range. To set the squelch: 1. Press the ▲(up) or ▼(down) button until you get to the (SQ) page.
- Page 13 ITEC RADIO MICROPHONE SYSTEMS 6. Appendix: Frequency list 739~752MHz ±50kHz/75kHz Frequency Frequency Frequency Frequency Frequency Frequency 739.050 741.600 744.150 745.650 747.300 749.850 739.200 741.750 744.300 745.725 747.450 750.000 739.350 741.900 744.450 745.800 747.600 750.150 739.500 742.050 744.600 745.875 747.750 750.300 739.650...
- Page 14 ITEC RADIO MICROPHONE SYSTEMS 823-832MHz Frequency Frequency Frequency Frequency Frequency Frequency 823.700 824.975 826.250 827.525 828.800 830.075 823.775 825.050 826.325 827.600 828.875 830.150 823.850 825.125 826.400 827.675 828.950 830.225 823.925 825.200 826.475 827.750 829.025 830.300 824.000 825.275 826.550 827.825 829.100 830.375...
- Page 15 The safety notes given in the product documentations, which are Produktdokumentation sind zu beachten. part of the supply, must be observed. ITEC Tontechnik und Industrieelektronik GesmbH, 8200 Gleisdorf, Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133/3780-0, Fax: +43 (0)3133/3780-9, ATU28706200, DVR: 0703109, HRB 3418 Landesgericht Graz, www.itec-audio.com...
- Page 16 70 mm x 35 mm x 148 mm (W x H x D), weight=110 g All information without guarantee. Subject to technical changes. ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Gleisdorf, Lassnitzthal 300 Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com...
