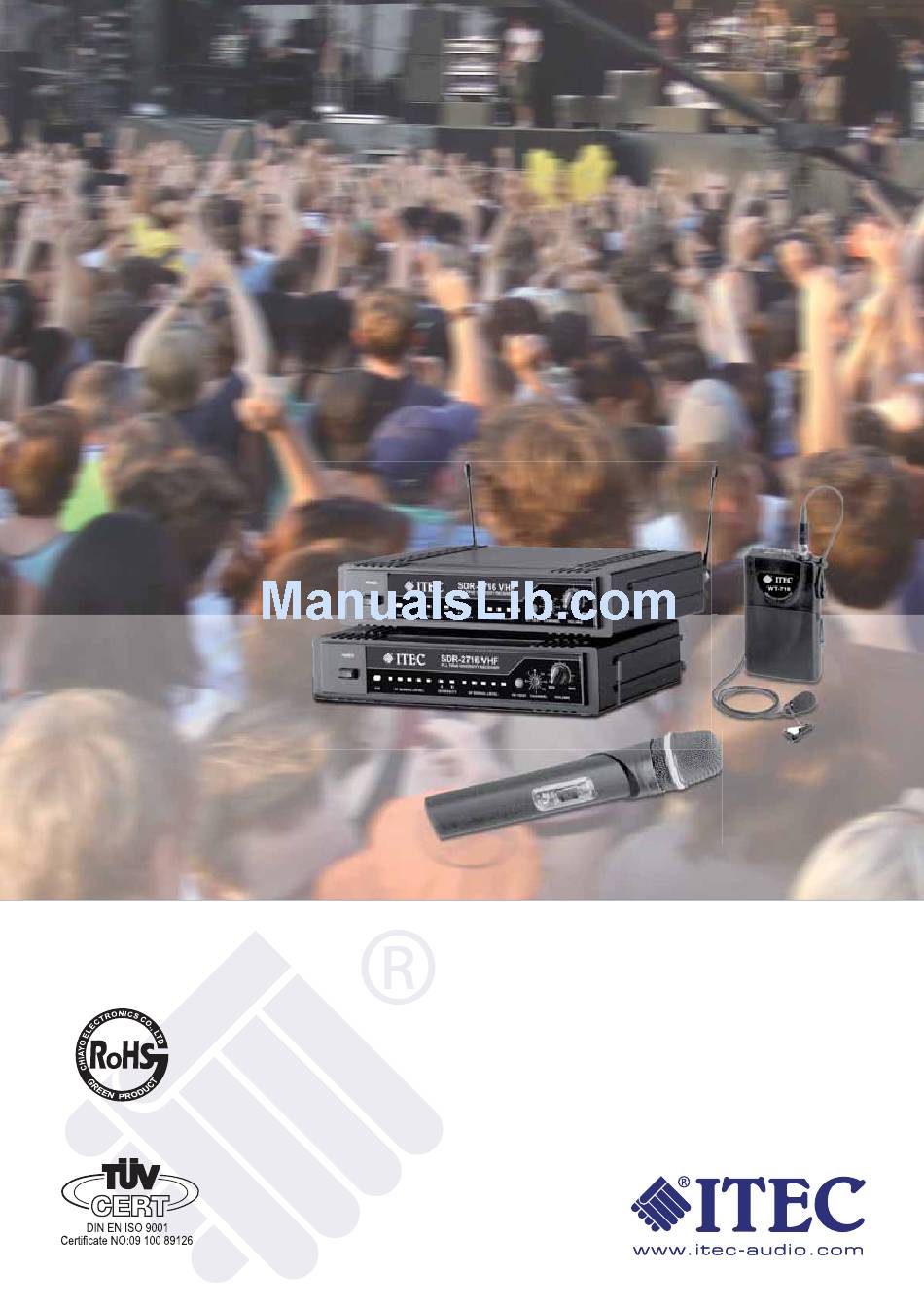

- Page 1 SDR-2716 WT-716/WM-716 VHF PLL 16 CHANNEL WIRELESS SYSTEM OPERATING MANUAL GREEN PRODUCT It has been RoHS Compliant...
- Page 2 The standard combinations are as follow: SDR matches WT, or WM As this is a shared operating manual of SDR-2716, we suggest you to read this operating manual thoroughly in order to familiarize with each part of function before using.
-
Page 3: Receiver Installation
ITEC 716 WIRELESS SYSTEMS 2.1.1. Receiver Installation For best operation, the receiver should be at least 1m above the ground and at least 1m away from a wall or metal surface to minimize refl ection. The transmitter should also be at least 1m away from a wall or metal surface to minimize refl... -
Page 4: Rack Mounting
ITEC 716 WIRELESS SYSTEMS 2.1.3. Rack Mounting SDR series are 1/2 19“ casing design and the specially designed 19“ rack mount adapter (MP-50) is available as optional purchase for customers‘ installation request. The installation instructions are shown as Fig. 3. - Page 5 ITEC 716 WIRELESS SYSTEMS 3. Hand-Held Microphone WM716 (VHF) 1. Capsule with metal grill 2. Battery Good indicator (green) 3. Battery Low indicator (red) 4. Power on/off switch 5. Channel switch 6. Charging contacts 3.1. Battery These two microphones require 3 pieces of „AA„ size batteries to operate.Please insert the batteries according to the correct...
- Page 6 ITEC 716 WIRELESS SYSTEMS 4. Belt-Rack Transmitter WT716 (VHF) 1. Battery status indicator 2. Power switch 3. Battery compartment 4. Charging point 5. Capsule 6. Mike clip WT-716 Fig. 7 4.1. Channel selection and gain Channel selector and gain adjustment are hidden in the designated cover in the front as shown in Fig. 7. To make channel selection and gain adjustment, please press the designated cover and fl...
-
Page 7: Frequency List
Produktdokumentation sind zu beachten. part of the supply, must be observed. ITEC Tontechnik und Industrieelektronik GesmbH, A-8200 Laßnitzthal 300 / Austria / Europe Tel.: +43 (0)3133/3780, Fax: +43 (0)3133/3780-9, ATU28706200, DVR: 0703109, HRB 3418 Landesgericht Graz, offi ce@itec-audio.com MICROPHONES www.itec-audio.com... -
Page 8: Specifications
Connector strip 3.96 mm, 2 x 10-poles Dimensions (W x H x D) 78 x 38 x 152 mm Weight 0,15 kg ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com www.itec-audio.com MICROPHONES...
