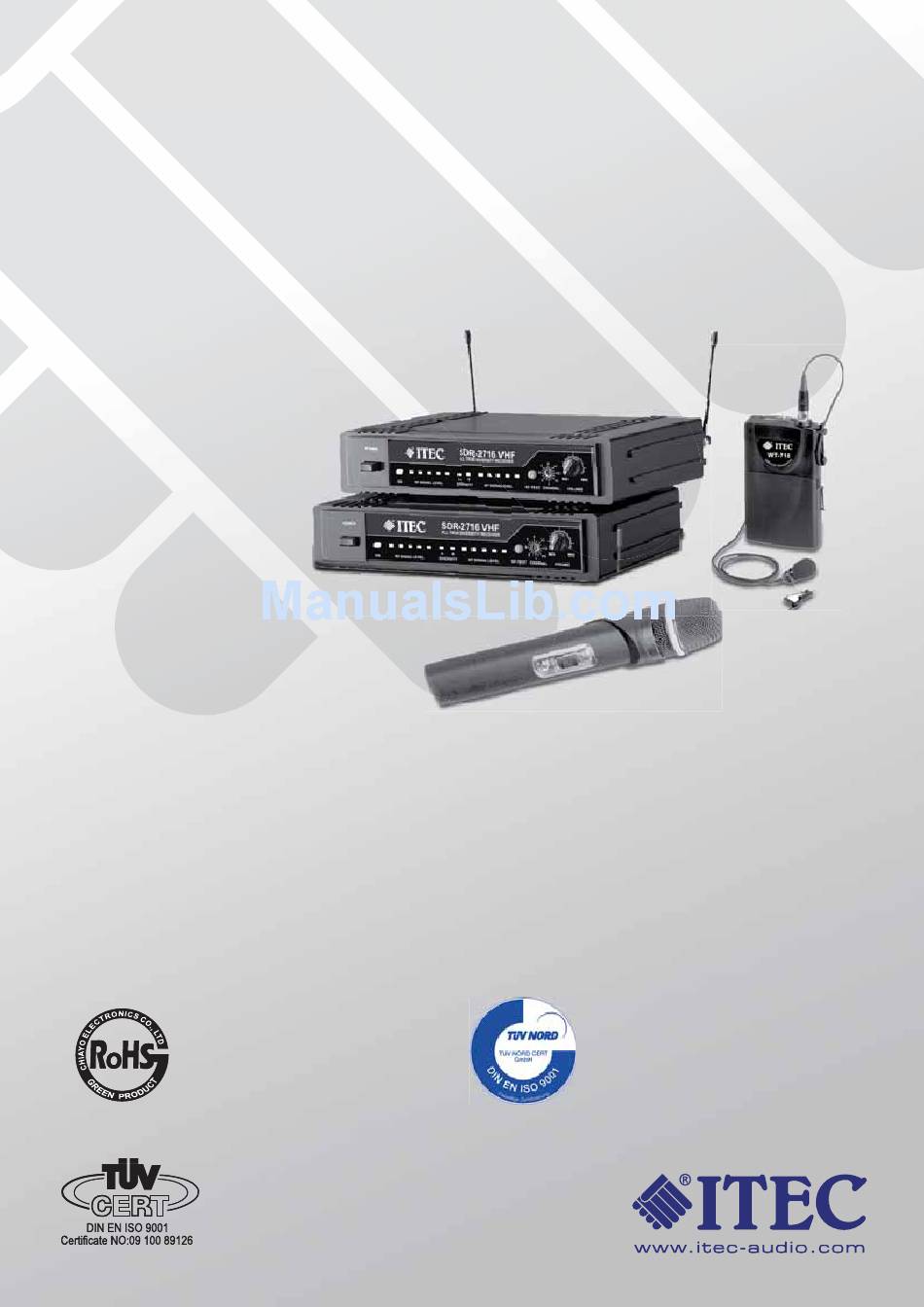

- Page 1 SDR-2716 WT-716/WM-716 VHF PLL 16 CHANNEL WIRELESS SYSTEM OPERATING MANUAL Designed and Manufactured by ITEC Tontechnik und Industrieelektronik GesmbH 8200 Laßnitzthal 300 Austria / Europe GREEN PRODUCT GREEN PRODUCT It has been RoHS Compliant It has been RoHS Compliant...
- Page 2 The standard combinations are as follow: SDR matches WT, or WM As this is a shared operating manual of SDR-2716, we suggest you to read this operating manual thoroughly in order to familiarize with each part of function before using.
- Page 3 ITEC 716 WIRELESS SYSTEMS 2.1.1. Receiver Installation For best operation, the receiver should be at least 1m above the ground and at least 1m away from a wall or metal surface to minimize reflection. The transmitter should also be at least 1m away from a wall or metal surface to minimize reflection.
- Page 4 ITEC 716 WIRELESS SYSTEMS 2.1.3. Rack Mounting SDR series are 1/2 19“ casing design and the specially designed 19“ rack mount adapter (MP-50) is available as optional purchase for customers‘ installation request. The installation instructions are shown as Fig. 3.
- Page 5 ITEC 716 WIRELESS SYSTEMS 3. Hand-Held Microphone WM716 (VHF) 1. Capsule with metal grill 2. Battery Good indicator (green) 3. Battery Low indicator (red) 4. Power on/off switch 5. Channel switch 6. Charging contacts 3.1. Battery These two microphones require 3 pieces of „AA„ size batteries to operate.Please insert the batteries according...
- Page 6 ITEC 716 WIRELESS SYSTEMS 4. Belt-Rack Transmitter WT716 (VHF) 1. Battery status indicator 2. Power switch 3. Battery compartment 4. Charging point 5. Capsule 6. Mike clip WT-716 Fig. 7 4.1. Channel selection and gain Channel selector and gain adjustment are hidden in the designated cover in the front as shown in Fig.
- Page 7 The safety notes given in the product documentations, which are Produktdokumentation sind zu beachten. part of the supply, must be observed. ITEC Tontechnik und Industrieelektronik GesmbH, A-8200 Laßnitzthal 300 / Austria / Europe Tel.: +43 (0)3133/3780, Fax: +43 (0)3133/3780-9, ATU28706200, DVR: 0703109, HRB 3418 Landesgericht Graz, office@itec-audio.com MICROPHONES www.itec-audio.com...
-
Page 8: Specifications
Connector strip 3.96 mm, 2 x 10-poles Dimensions (W x H x D) 78 x 38 x 152 mm Weight 0,15 kg ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, office@itec-audio.com, www.itec-audio.com...
